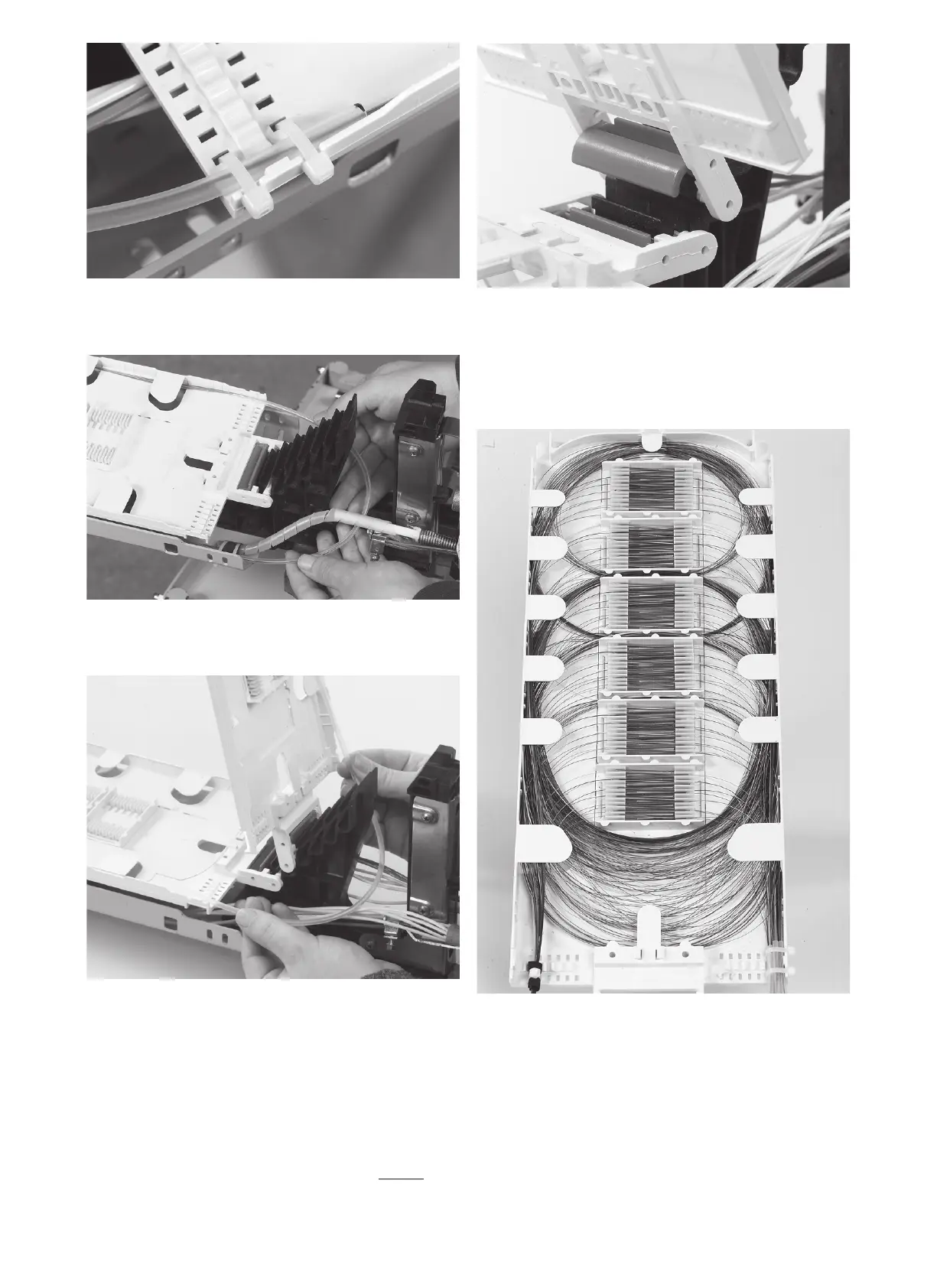

6.2.3 Cut off the excess length of the transportation tube and secure
with tie wraps on the tray.
6.2.4 In case of central core route a transportation tube from the
basket behind the tower to the tray.
6.2.5 Inter tray jumping.
Route the transportation tube from the bottom tray, behind the tower,
over the already installed loose tubes to the allocated tray.
6.2.6 The tray can be blocked with the tray wedge. Turn the
wedge to the shown position.
6.3.1 For single fiber.
6.3 Fiber routing on the tray
A Single fiber
