Compaq 6720s - Notebook PC

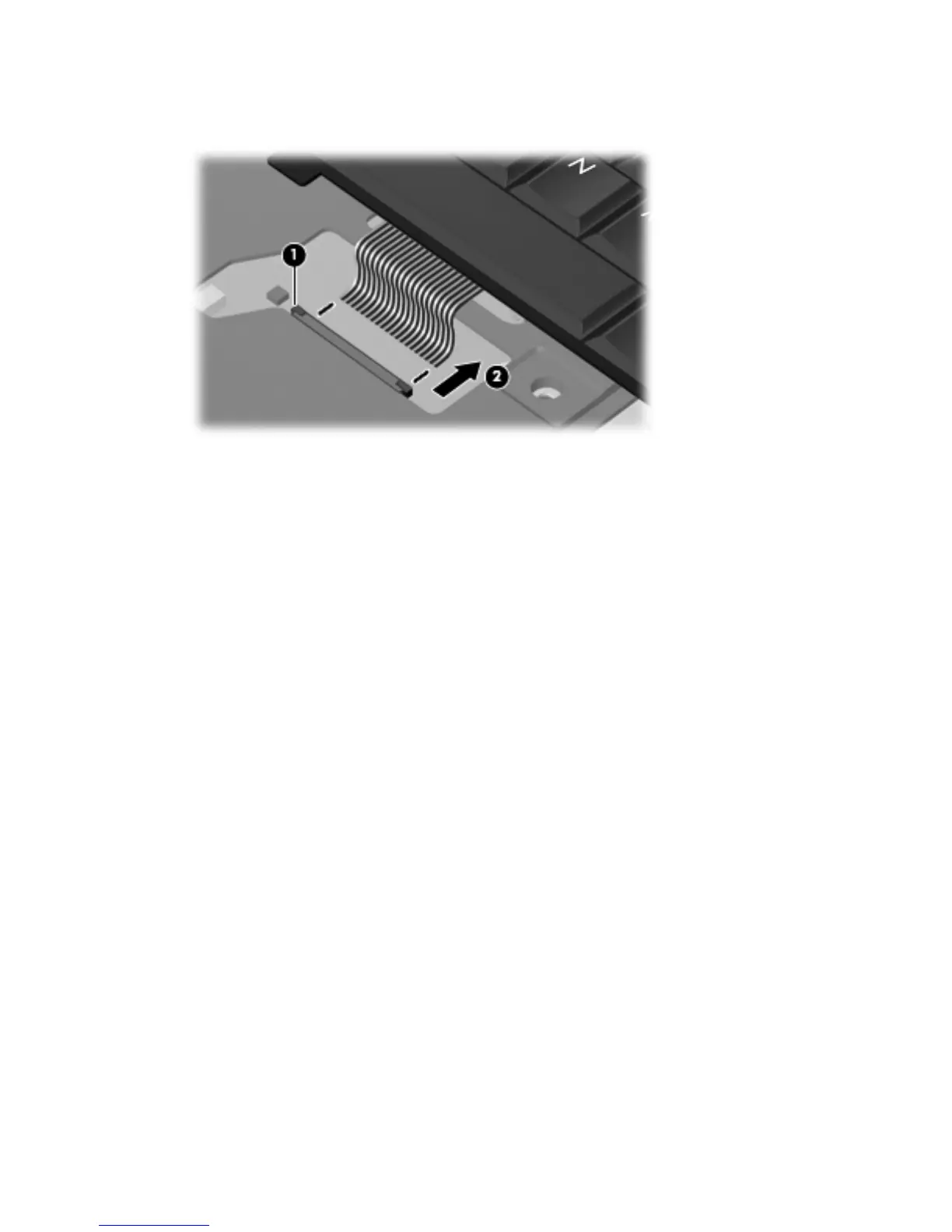

6. Release the zero insertion force (ZIF) connector (1) to which the keyboard cable is attached, and
disconnect the keyboard cable (2) from the system board.
7.
Remove the keyboard.
Reverse this procedure to install the keyboard.
