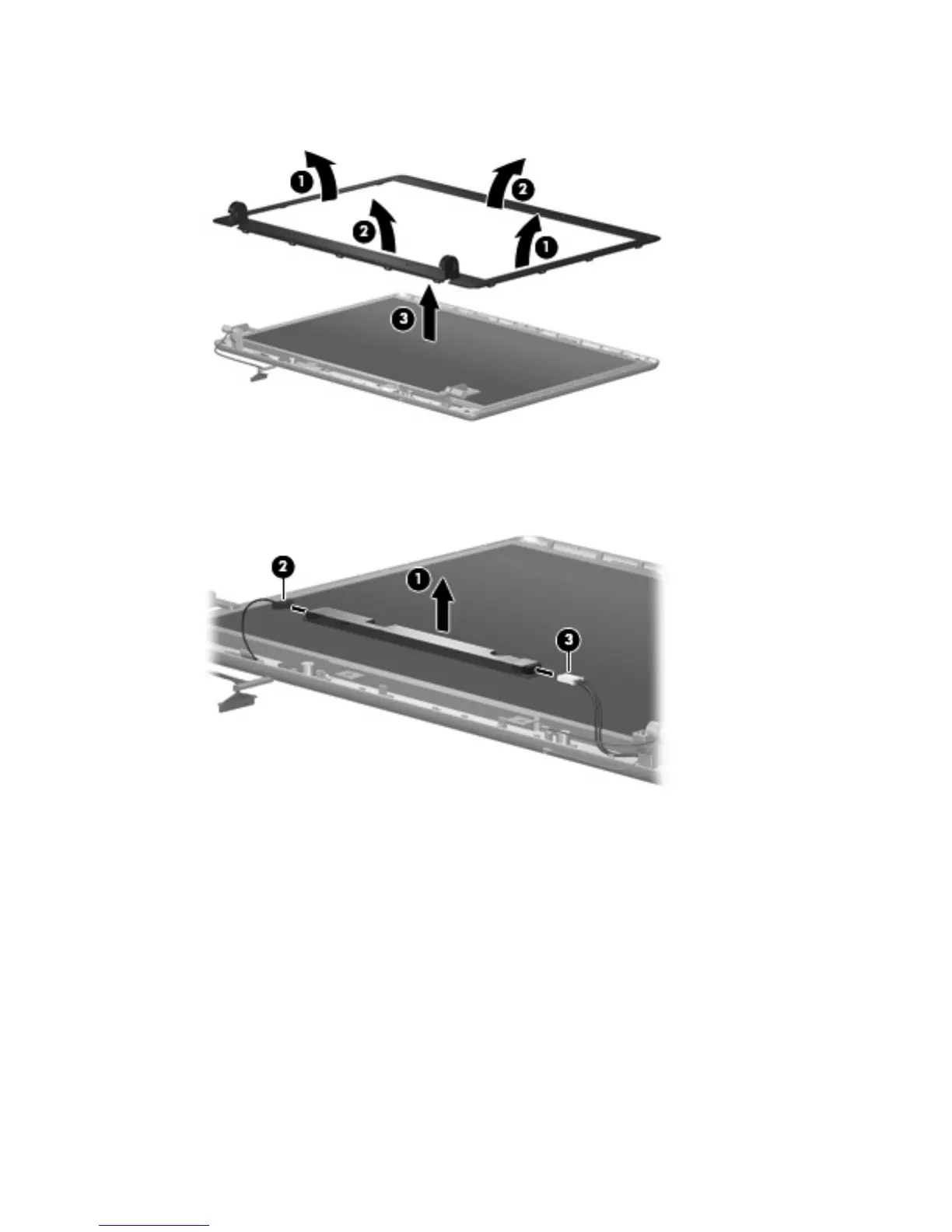

7. Remove the display bezel (3). The display bezel is available using spare part number
456807-001.
8. If it is necessary to replace the display inverter, remove the inverter (1) from the display enclosure
as far as the display panel cable and the backlight cable will allow.
9. Disconnect the display panel cable (2) and the backlight cable (3) from the display inverter.
10.
Remove the display inverter. The display inverter is available using spare part number
456618-001.
11. If it is necessary to replace the display hinges, remove the four Torx T8M2.5×6.0 screws (1) that
secure the display panel to the display enclosure.
Component replacement procedures 57
