c.
Keyboard (see
Keyboard on page 50)
d.
Switch cover (see
Switch cover on page 47)
e.
Speaker (see
Speaker on page 53)
f.
Display lid switch module (see
Display lid switch module on page 54)
g.
Display assembly (see
Display assembly on page 55)
h.
Top cover (see
Top cover on page 59)
i.
System board (see
System board on page 65)

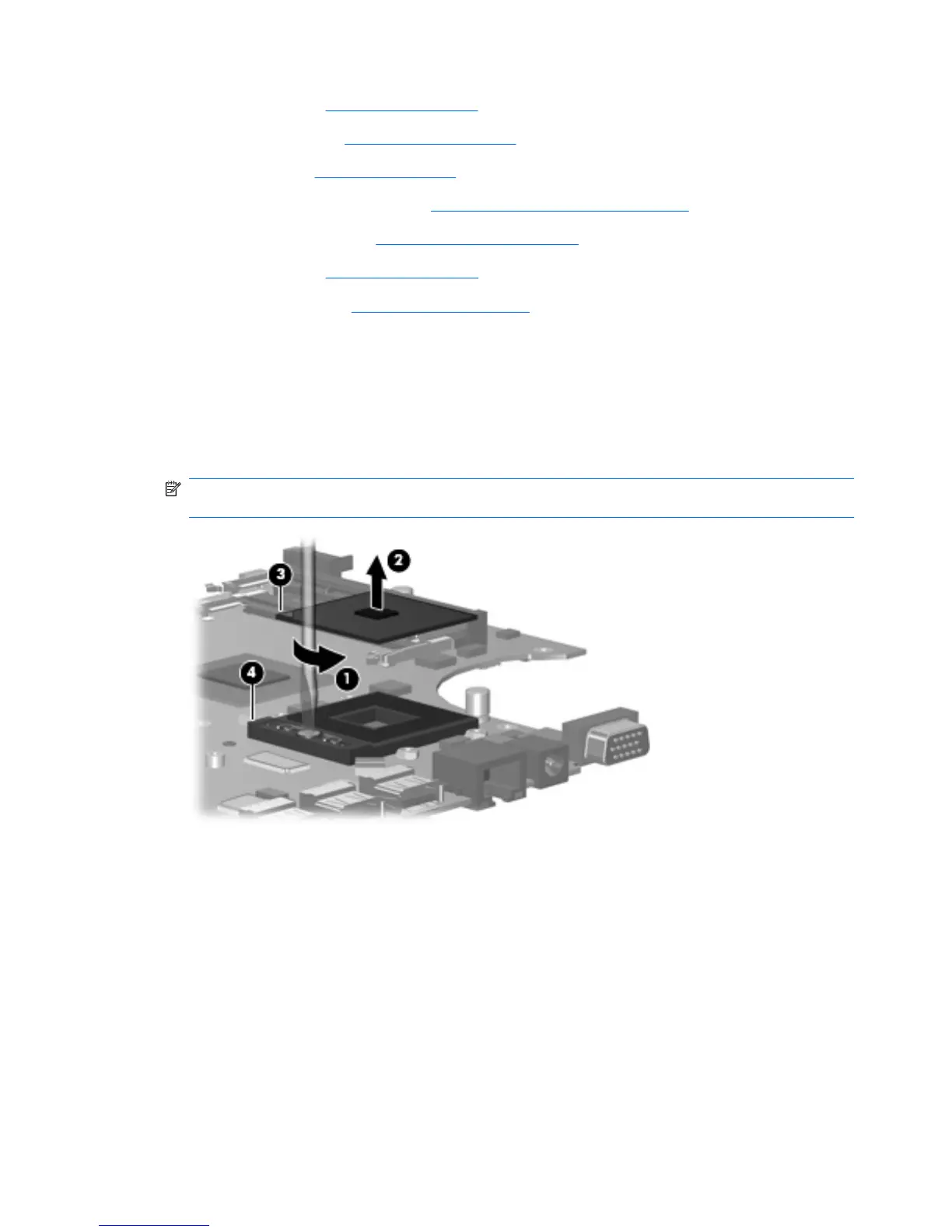

Remove the processor:
1.
Turn the system board upside down, with the USB connectors toward you.
2. Use a flat-bladed screwdriver to turn the processor locking screw (1) one-half turn counterclockwise
until you hear a click.
3. Lift the processor (2) straight up and remove it.
NOTE: When you install the processor, the gold triangle (3) on the processor must be aligned with
the triangle (4) embossed on the processor slot.
Reverse this procedure to install the processor.
74 Chapter 4 Removal and replacement procedures
