h.
Top cover (see
Top cover on page 59)
i.
System board (see
System board on page 65)

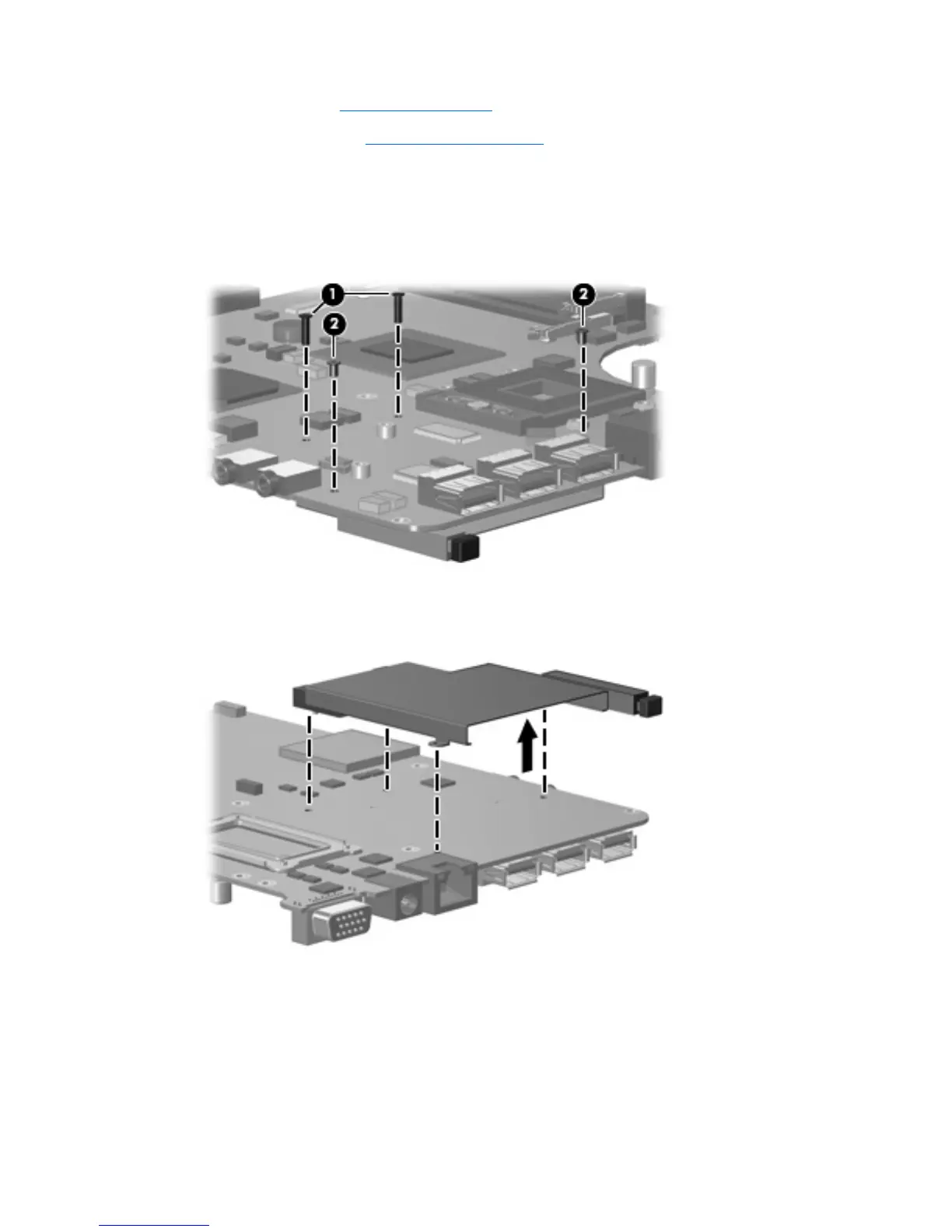

Remove the ExpressCard assembly:
1.
Turn the system board upside down, with the USB connectors toward you.
2. Remove the two Phillips PM2.0×8.0 screws (1) and the two Phillips PM2.0×4.0 screws (2) that
secure the ExpressCard assembly to the system board.
3.
Turn the system board right-side up, with the USB connectors toward you.
4.
Remove the ExpressCard assembly from the system board.
Reverse this procedure to install the ExpressCard assembly.
Component replacement procedures 79
