Chapter 5 Input/Output Interfaces
Compaq Deskpro 4000 and 6000 Personal Computers
featuring the Pentium II Processor
First Edition – October 1997
5-34
5.6.4 KEYBOARD/POINTING DEVICE INTERFACE CONNECTOR
There are separate connectors for the keyboard and pointing device. Both connectors are identical
both physically and electrically. Figure 5-6 and Table 5-19 show the connector and pinout of the
keyboard/pointing device interface connectors.

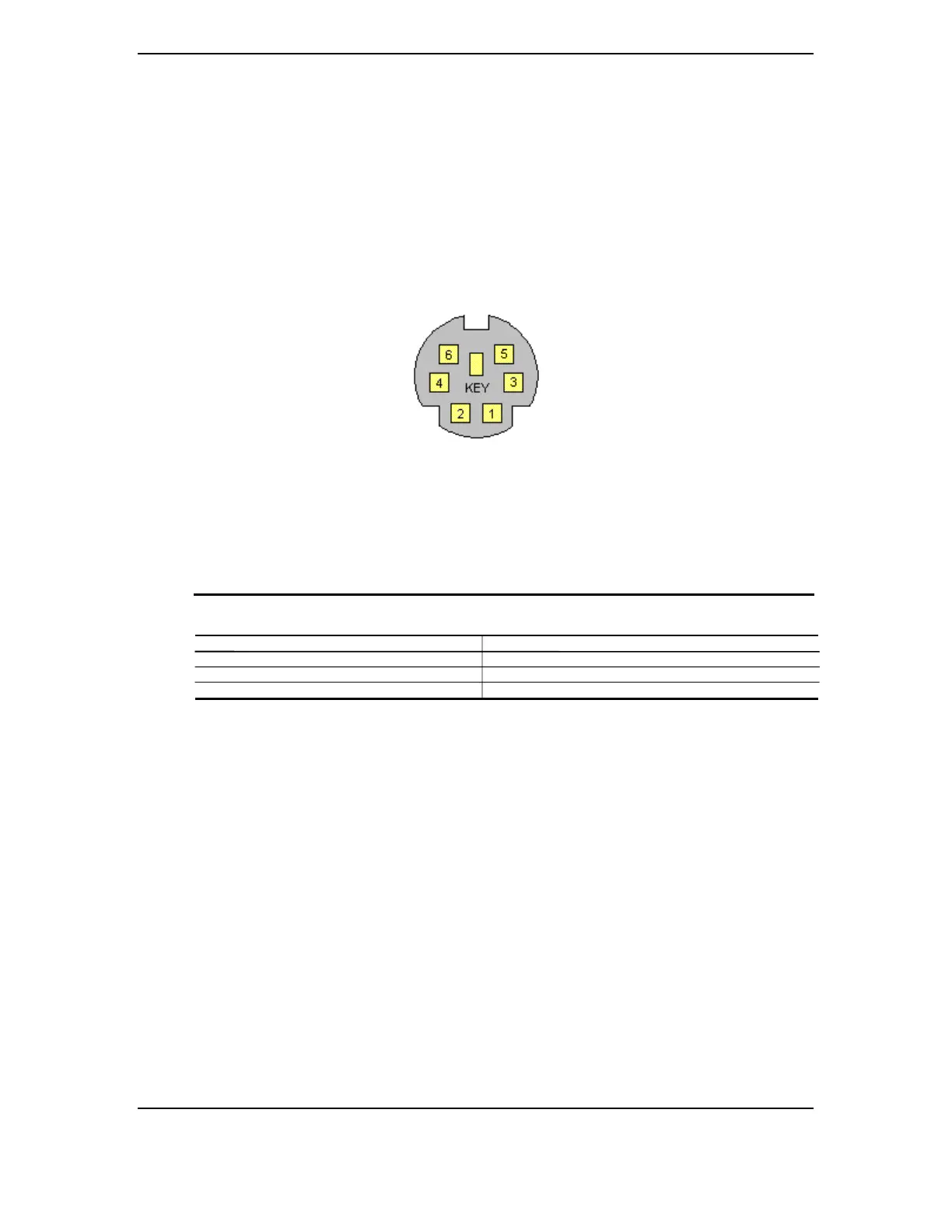

Figure 5–8.
Keyboard or Pointing Device Interface Connector
(as viewed from rear of chassis)
Table 5–19. Keyboard/Pointing Device Connector Pinout
Table 5-19.
Keyboard/Pointing Device Connector Pinout
Pin Signal Description Pin Signal Description
1 DATA Data 4 + 5 VDC Power
2 NC Not Connected 5 CLK Clock
3 GND Ground 6 NC Not Connected
