Removal and Replacement
Serial Port
Disassembly
Sequence
Hood
Front Bezel
Card Guides
Fan
USB Cables
Creativity Center
Mass Storage Devices
Memory
Option Card Retainer
Graphics Board
Fax/Modem
Serial Port
Homenet Daughter Board
Processor
Processor Goal Posts
System Board Cables
System Board
RTC Battery
I/O Panel
Power Supply
Removal
1.
Perform the preparation for disassembly
procedures.
2.
Remove the hood.
3.

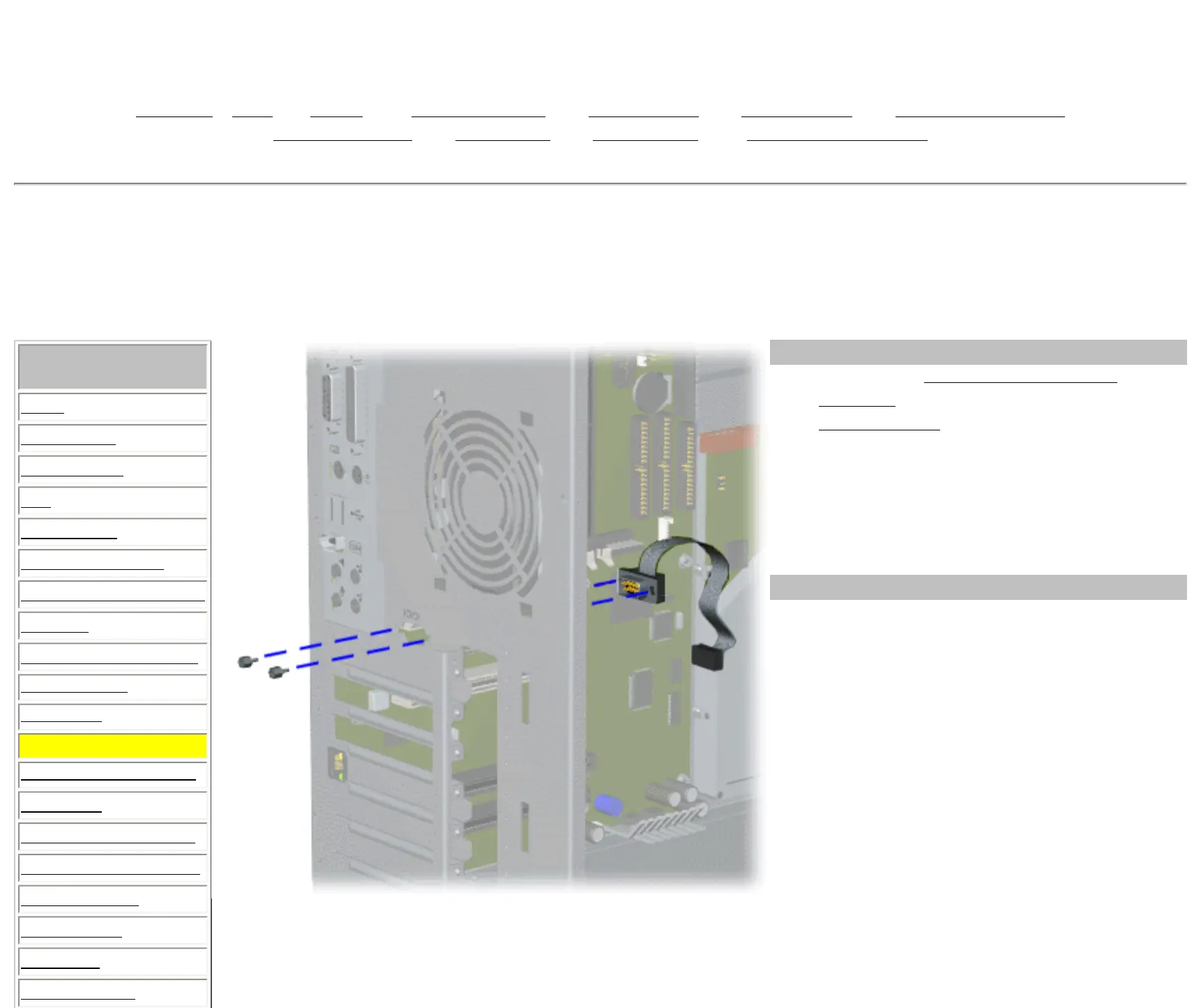

Disconnect the serial cable from connector
J8 (or J47 for models 5650, 5665, 5673,
5676, 5677) on the system board.
4.
Remove the screwlocks that secure the
serial port to the chassis and pull the serial
port cable out of the chassis.
Replacement
To replace the serial port, reverse the
removal procedure.
