Camera module
Description Spare part number
Camera module 487287-001
Before removing the camera module, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4. Remove the battery (see
Battery on page 34).
5. Remove the following components:
a. Optical drive (see
Optical drive on page 35)
b. Keyboard (see
Keyboard on page 44)
c. Keyboard cover (see
Keyboard cover on page 46)
d. Speaker assembly (see
Speaker assembly on page 49)
e. Display assembly (see
Display assembly on page 51)
Remove the camera module:

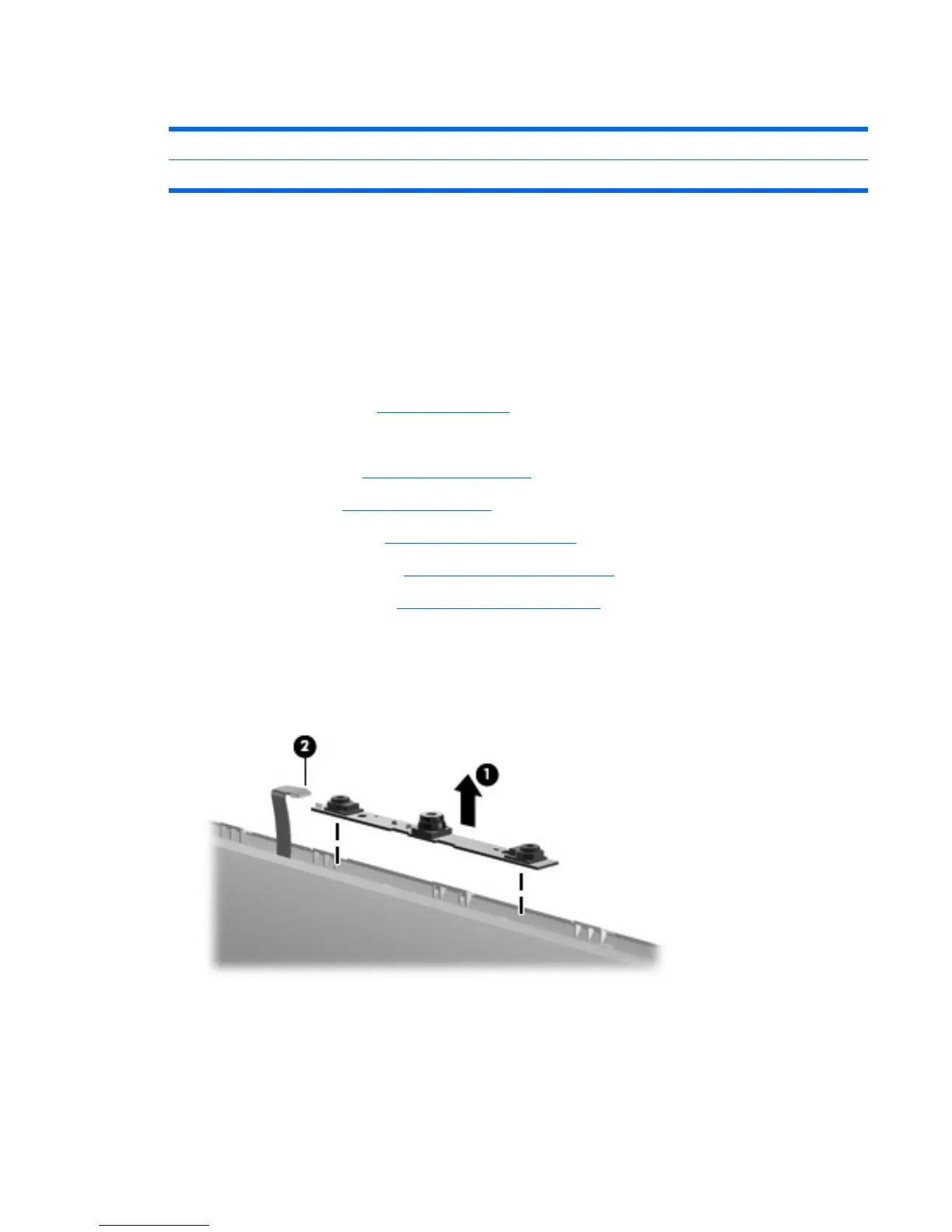

1. Disconnect the cable (2) and remove the camera module from the display enclosure.
2. Release the camera module (1) from the display enclosure.
Reverse this procedure to install the camera module.
Component replacement procedures 57
