5–66 Maintenance and Service Guide
Removal and Replacement Procedures
8. If it is necessary to replace the modem cable, remove the
modem cable 1 from the routing channel in the
base enclosure.
9. Remove the modem connector 2 from the clips in the
base enclosure.

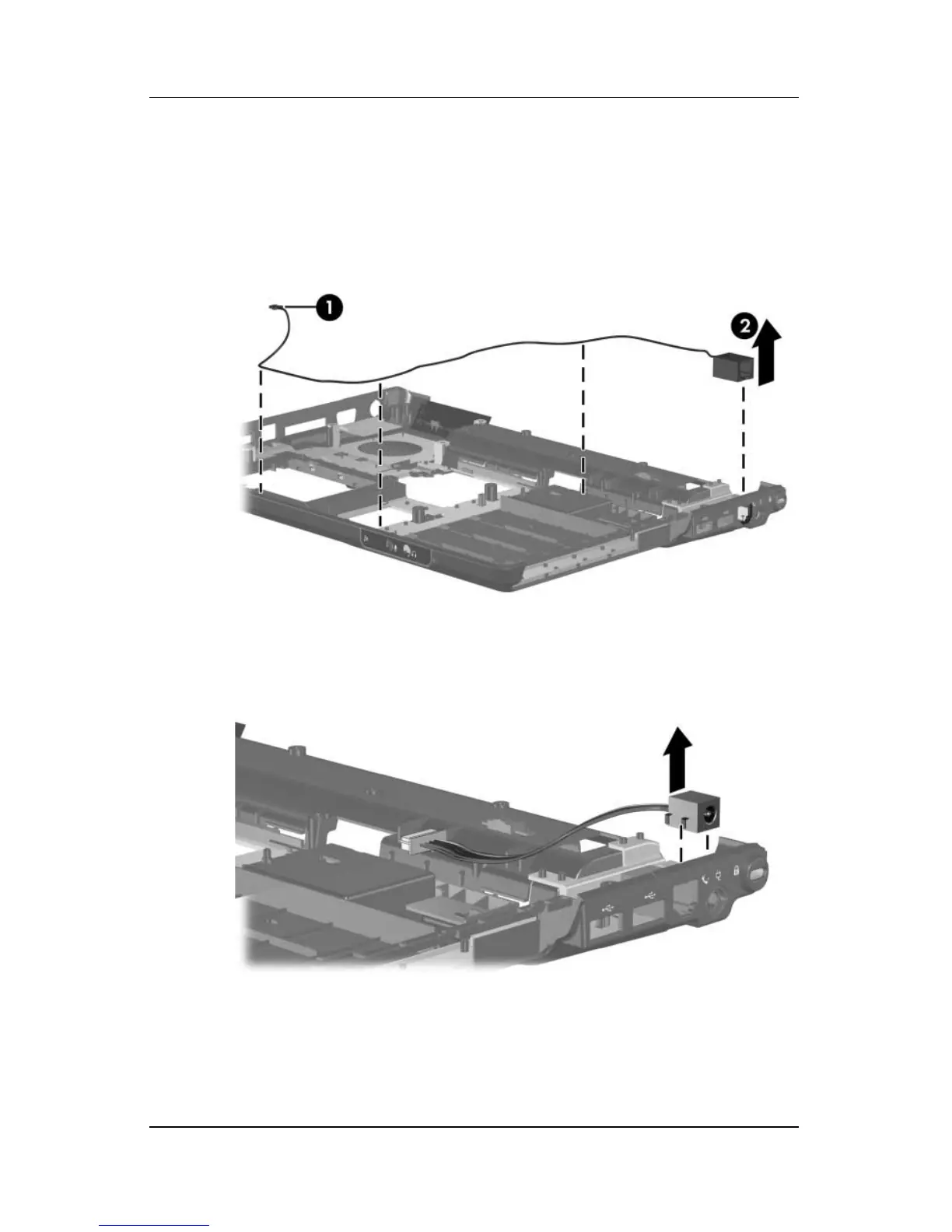

Removing the Modem Cable
10. If it is necessary to replace the power connector cable, remove
the power connector from the clips in the base enclosure.
Removing the Power Connector Cable
Reverse the above procedure to install the system board, modem
cable, and power connector cable.
