1–18 Maintenance and Service Guide
Product Description

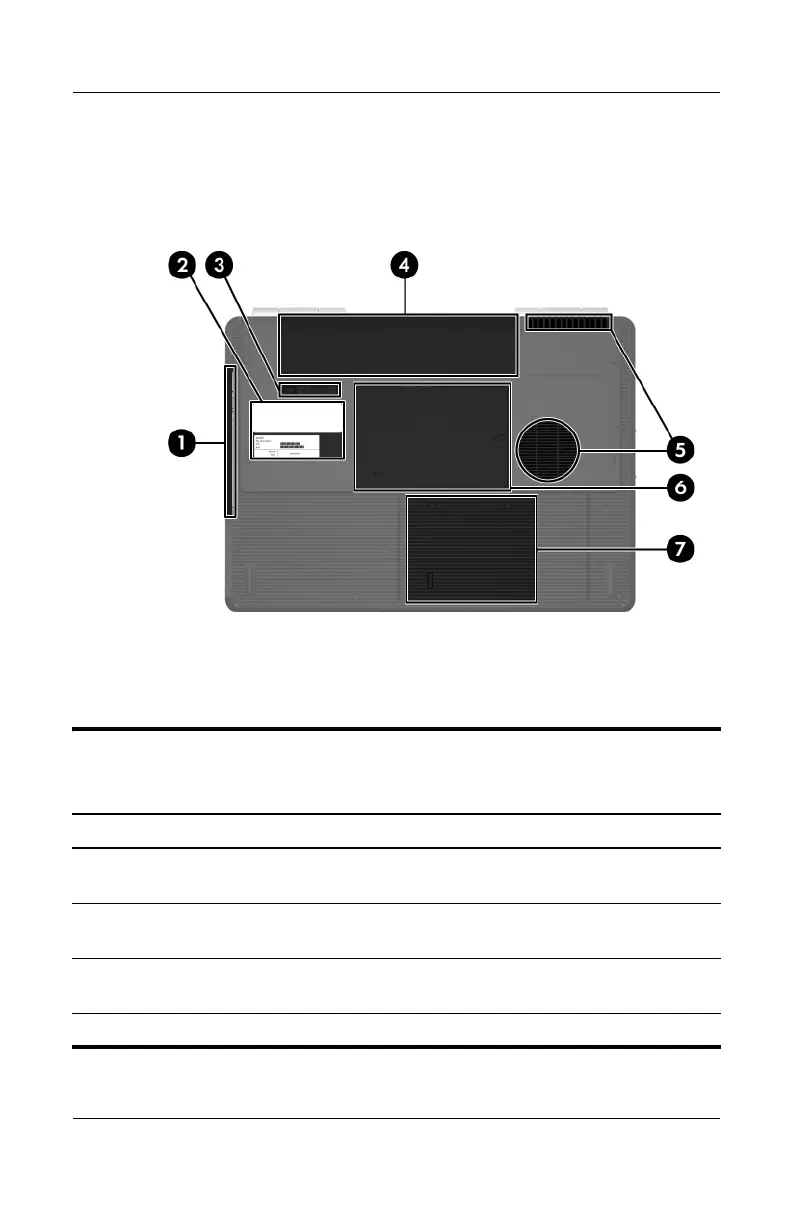

The external components on the bottom of the computer are
shown below and described in Table 1-8.
Bottom Components
Table 1-8
Bottom Components
Item Component Function
1 Optical drive Supports an optical disc, such as a
CD or DVD.
2 Labels area Contains the serial number and other
information labels.
3 Battery pack release latch Releases a battery pack from the
battery bay.
4 Battery bay Holds a battery pack.
