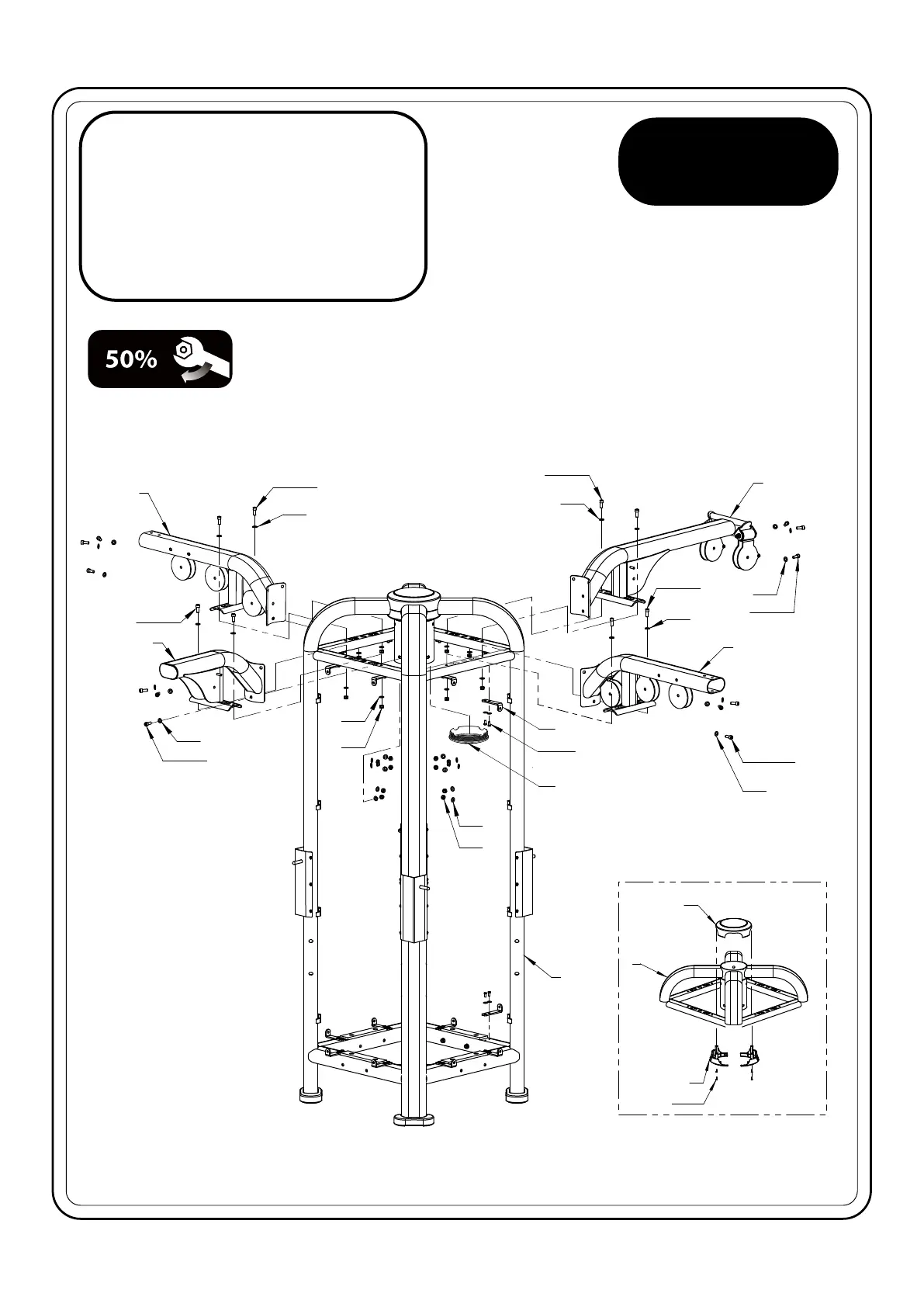

COMPOUND PLATINUM Series - Assembly Steps; Step 1: Frame Assembly

03
INFORMATION
We recommend you have someone
assist you in lifting and assembling
your gym.
Follow these steps carefully and it
will make it easier to assemble your
gym.
Ɣ
Ɣ
STEP 1
NOTE:In this step,all the washers and nuts
which are not marked are W10 and N10.
NOTE:Assemble the cap first.
5
6
1
5
7
60
SC10-5
SC10-5
SC10-5
SC10-5
SC10-5
W10
W10
N10
N10
W10
W10
W10
W10
W10
SC10-5
W10
SC10-5
1
58
59
CH4-5
H6-6
W6B
68
