Comprag F Series - Air-Oil Separator Replacement; Radiator Cleaning Procedure

35COMPRAG Screw air compressor F-Series

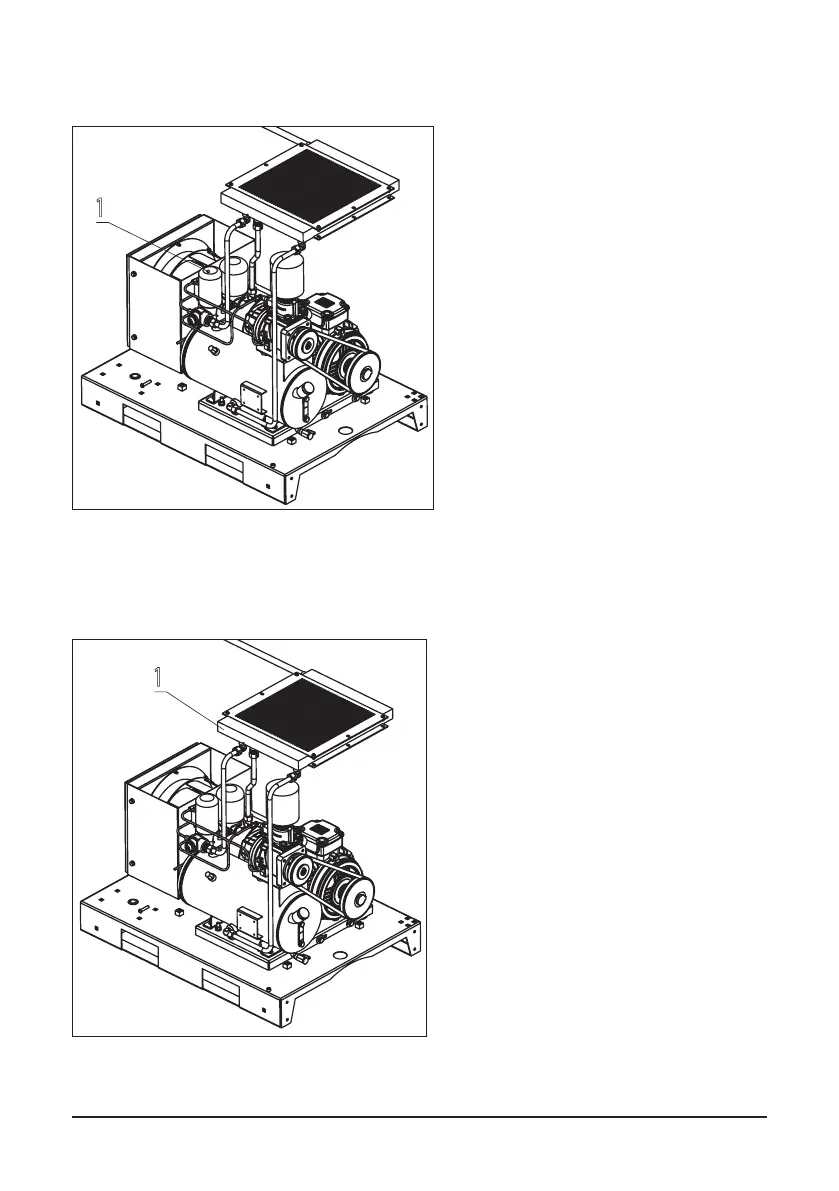

Fig. 5.8 Cleaning radiator
Fig. 5.7 Changing air-oil separator
5.7 Changing air-oil separator
Open the right side panel, remove the
separator (1) using a special oil lter
wrench.
Oil the gasket of the new air-oil separator
and screw it into place. Only tighten the
air-oil separator by hand.
5.8 Cleaning radiator
In order to access the radiator (1), open
the front panel.
Regularly clean the radiator in order to
maintain its cooling efciency at an ac-
ceptable level.
Remove any dirt particles from the radiator
using a bre brush, then aim a jet of
compressed air at the radiator from the
bottom to the top; the jet should be held
at an approximate 90° angle to the plane
of the radiator.
1
1
