Comunello Automation RAMPART 600 User Manual

7
COMUNELLO ®Copyright 2021 - All rights reserved
FIG. 19

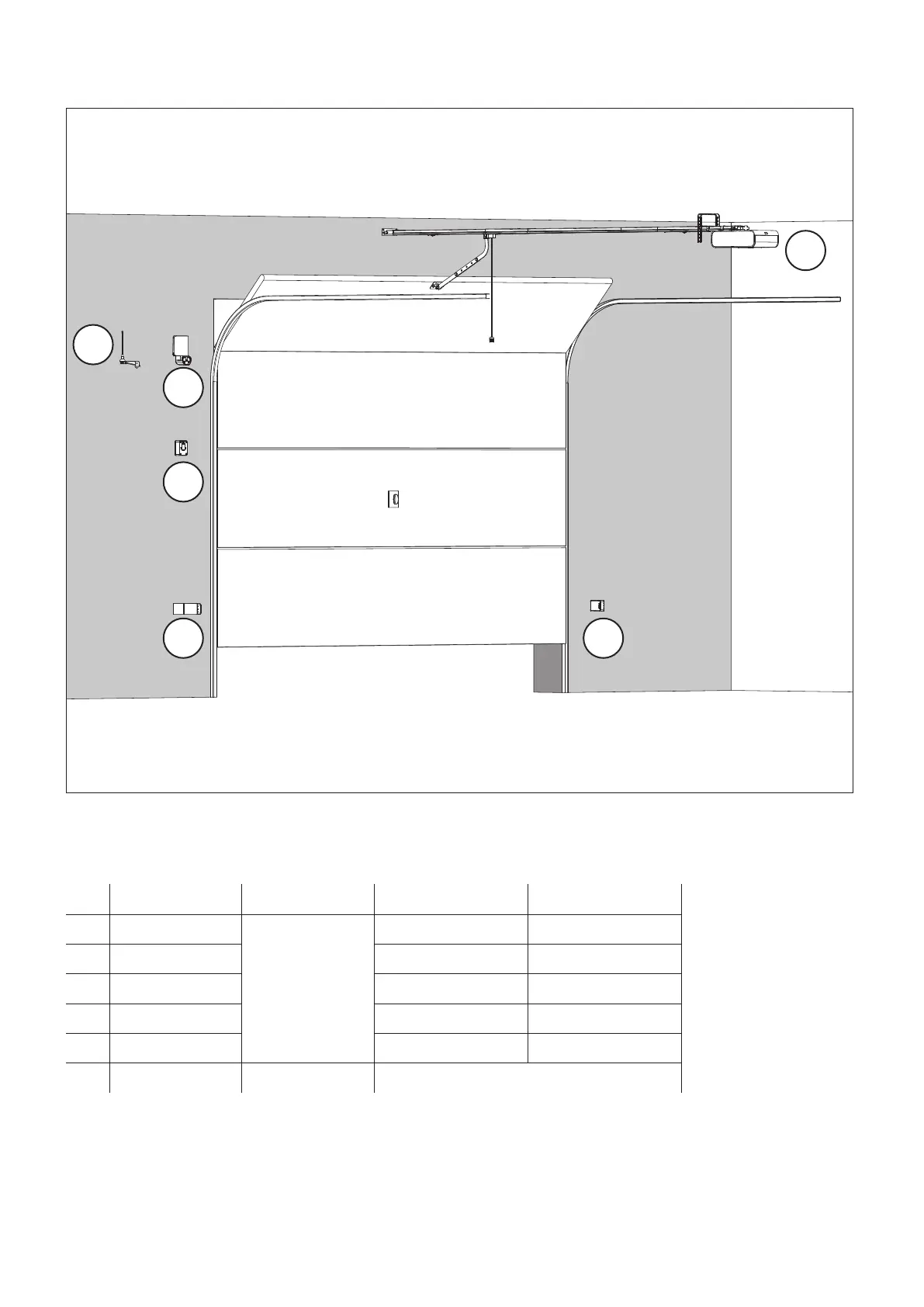

TABELLA CONNESSIONI CAVI - AG01 WIRES CONNECTION TABLE AG01
SECTIONAL DOORS (CU 24V RT)
ID Description Cable type Lenght (1m to 20m) Lenght (20m to 50m)
1 Main power supply
HAR EN50575
CPR 305/2011
2x1,5 mm
2
2x2,5 mm
2
3 Flashing light 2x0,5 mm
2
2x1,0 mm
2
5A Photocell TX 2x0,5 mm
2
2x1,0 mm
2
5B Photocell RX 4x0,5 mm
2
4x1,0 mm
2
4 Key selector 3x0,5 mm
2
3x1,0 mm
2
2 Antenna RG58 max 20 m
1
2
3
4
5A 5B

Comunello Automation RAMPART 600 Specifications

General

Brand	Comunello Automation
Model	RAMPART 600
Category	Garage Door Opener
Language	English
