Conair Thermolator TW-S User Manual

Description I 2-7
2
Description
TW-P Control Features vs TW-V and TW-S
Model TW-P
Direct Injection

Closed Circuit - Common Source
Closed Circuit - Separate Source
Construction
Standard Pump Range
3/4 to 10 Hp
{0.56 to 7.45 KW}
Standard Heater Range 0 to 48 KW
Cast Heater / Pump

Incoloy Heaters

Silicon Carbide Seals

Pressure Gauges

250°F Setpoint Range

300°F Setpoint Range
Controls
PID Control

Setpoint / Actual Display

Password Protection

Modbus RTU via RS-485
SPI via RS-485
Retransmit Process Temp (4-20mA)
Hand Held Remote
Auto Restart Capability

High Temperature Safety
Mold Purge
Phase Detection Circuit

Heat Error for Heater Malfunction

Remote Start/Stop

120°F Air Purge Cancel

Quick Access Cool Down Mode

Status / Alarm Lights
Panel Mounted Status Lights 12 LEDs
Panel Mounted Alarm Lights 5 LEDs
Audible Alarm

Strobe Light
Model TW-S TW-V
Direct Injection
 
Closed Circuit - Common Source
Closed Circuit - Separate Source
Construction
Standard Pump Range
3/4 to 10 Hp
{0.56 to 7.45 KW}
3/4 to 10 Hp
{0.56 to 7.45 KW}
Standard Heater Range 0 to 48 KW 12 KW
Cast Heater / Pump
 
Incoloy Heaters
 
Silicon Carbide Seals
 
Pressure Gauges
 
250°F Setpoint Range
 
300°F Setpoint Range
Controls
PID Control
 
Setpoint / Actual Display
 
Password Protection

Modbus RTU via RS-485
SPI via RS-485
Retransmit Process Temp (4-20mA)
Hand Held Remote
Auto Restart Capability

High Temperature Safety
Mold Purge
Phase Detection Circuit
Heat Error for Heater Malfunction
Remote Start/Stop

120°F Air Purge Cancel

Quick Access Cool Down Mode

Status / Alarm Lights
Panel Mounted Status Lights 7 LEDs 1 LED
Panel Mounted Alarm Lights 3 LEDs 1 LED
Audible Alarm

Strobe Light

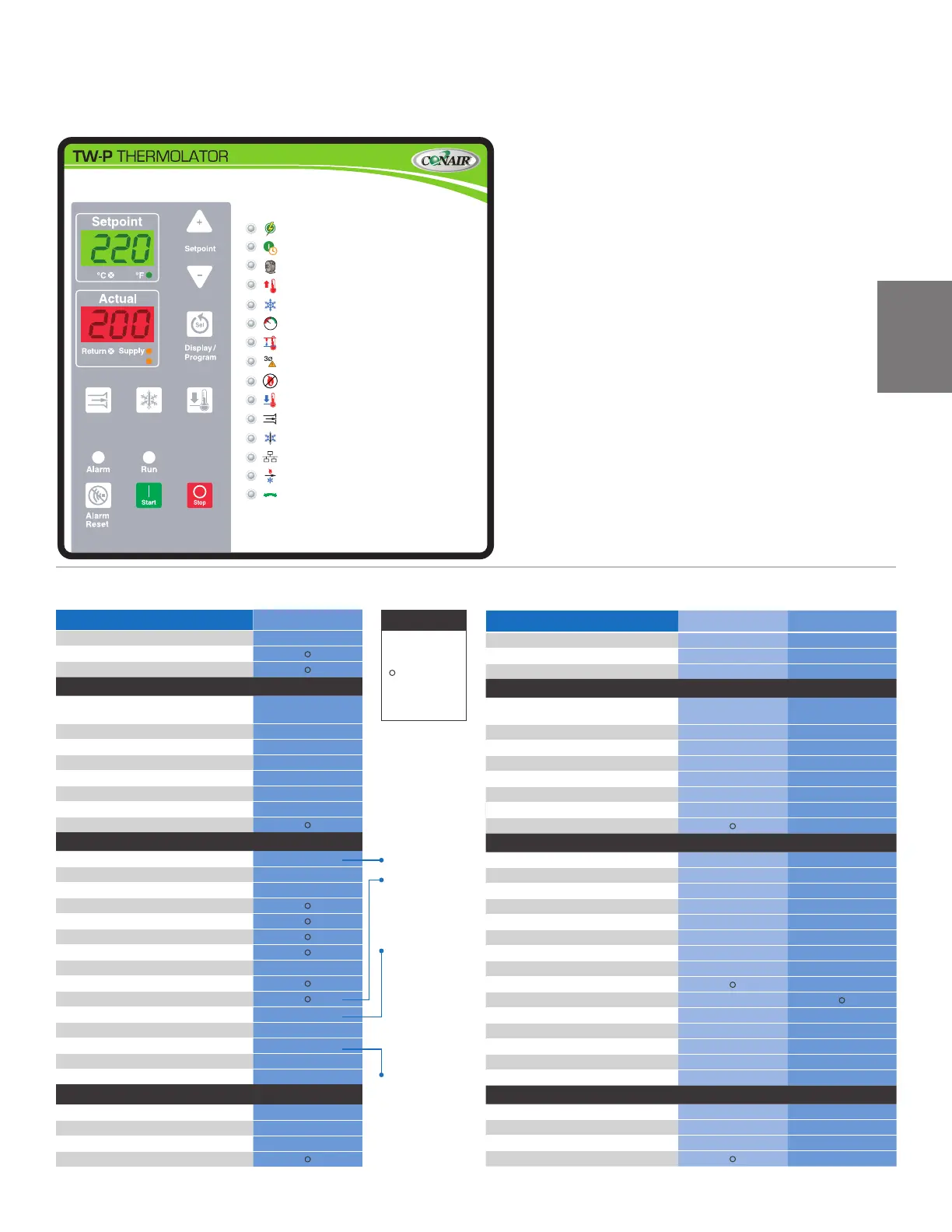

The TW-P Control
Mold
Purge
Rapid
Cool
Process
Cool Down
Control Power
Autostart Signal
Pump
Heat
Cool
Coolant Pressure
Temperature Limit
Electrical Phase Error
Heat Error
Process Cool Down
Rapid Cool
Communications
Remote Heat/Cool
Program Mode
Mold Purge
Flow GPM (flash)
Control features on the TW-P Series Thermolators
Control features on the TW-S and TW-V Series Thermolators
PID Control
Purge On/
Off button
included on
control.
Phase
detection
indicates
incorrect
pump rotation
or an open
electrical leg.
Remote Start/
Stop works
with external
timers or
switches for
convenient
preheating of
molds.

Standard
Optional
* 4-20mA
