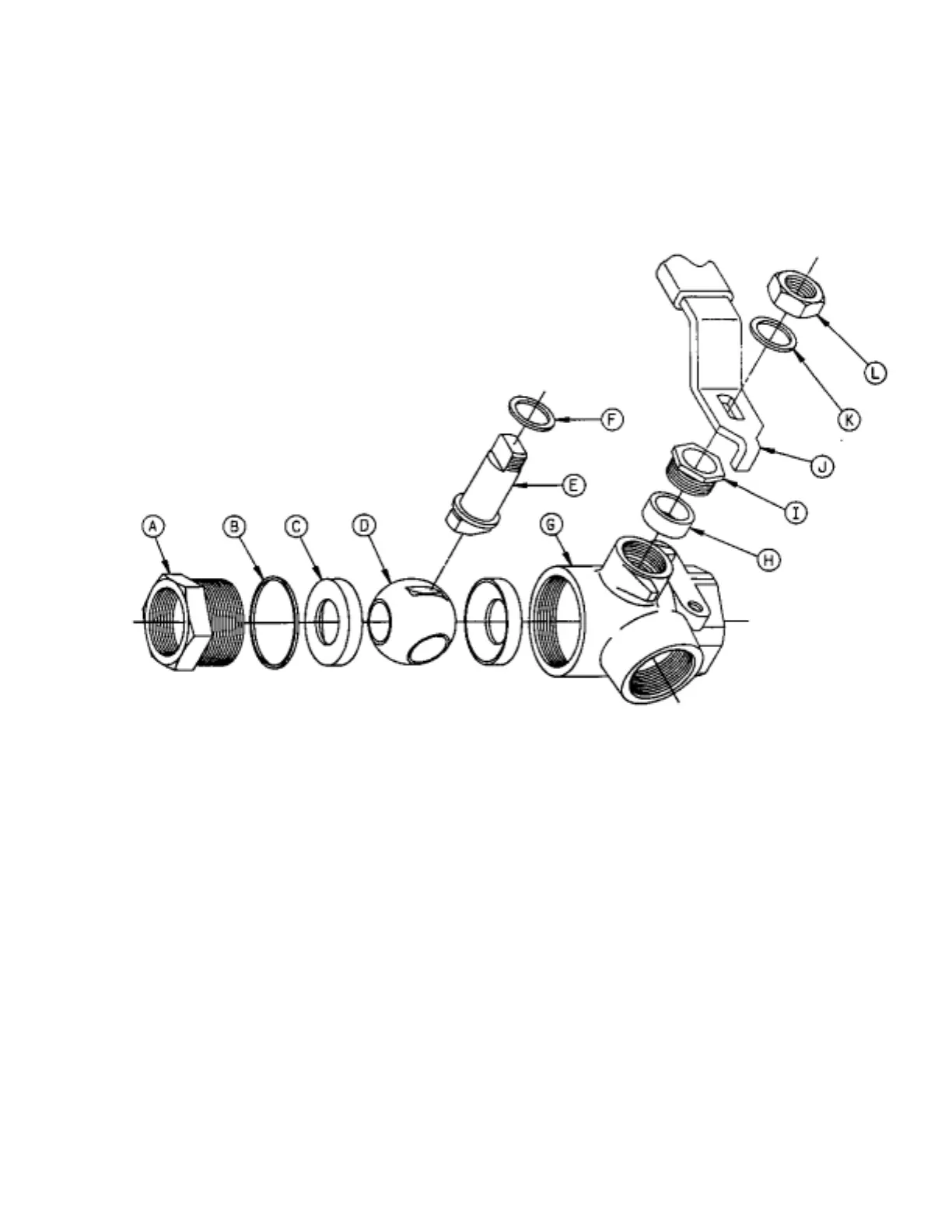

A. RETAINER
B. BODY SEAL (1-1/4” – 2” SIZES)
C. SEAT
D. BALL
E. STEM
F. BEARING
G. BODY
H. PACKING
I. GLAND SCREW
J. LEVER / GRIP ASSEMBLY
K. WASHER (1-1/2” – 2” S.S. ONLY)
L. LEVER NUT
