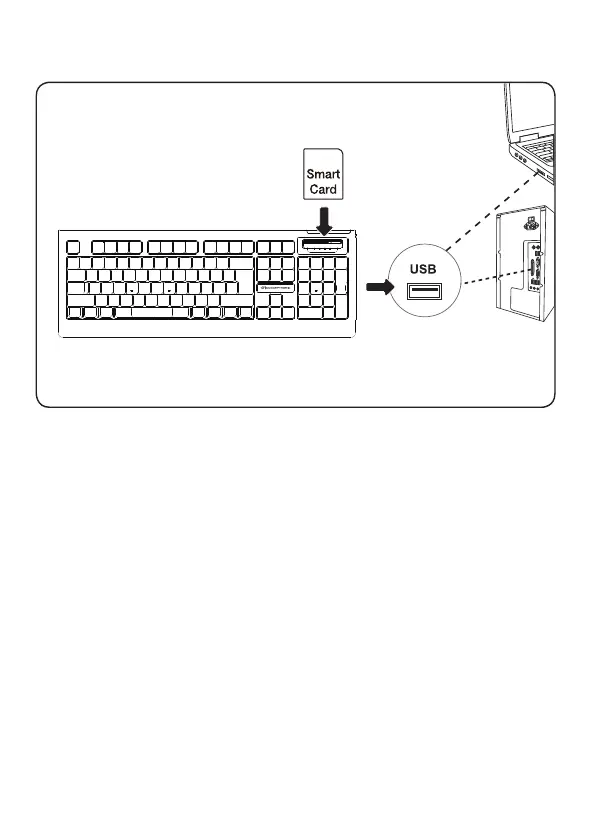

INSTALLATION
SPECIFICATIONS
Compliance
EMV 4.0 Level 1 Specification Certified
PBOC2.0 Level 1 Certified
USB 2.0 Full-Speed, USB-IF Certified
USB-CCID
ISO7816 Class A, B and C (5V/3V/1.8V)
I2C memory card, SLE4418, SLE4428,
SLE4432, SLE4442, SLE4436, SLE5536,
SLE6636, AT88SC1608, AT45D041 card
and AT45DB041 card
PC Smart Card Industry Standard -
PC/SC 2.0
Microsoft Smart Card for Windows
Microsoft WHQL Smart Card Reader
requirements
US Federal Information Processing
Standards (FIPS) Publication 201
requirements on smart card reader
interoperability
Connector
USB 2.0, USB-A male
Power Supply/Current
5V/120mA
Operating Temperature
0°C ~ 50°C
Operating Humidity
20% ~ 90%RH
Dimensions
454 x 164 x 56 mm
Cable Length
1.5m
Weight
639±20g
Package Contents
KAYNE01ES
Quick Installation Guide
