IR
905±10nm 2.4mw
NOTE: The information about wavelength range can be especially useful to clinicians.
5. Power Requirements
Two AAA alkaline Batteries
Power consumption: Less than 30mA
Battery Life: Two AAA 1.5V, 600mAh alkaline batteries could be continuously operated as long as 30 hours.
6. Environment Requirements
Operation Temperature: 5℃～40℃
Storage/ Transport Temperature: -20℃～+55℃
Ambient Humidity: ≤80% no condensation in operation; ≤93% no condensation in storage/transport
Atmosphere pressure: 86kPa～106kPa
7. Equipment data update period

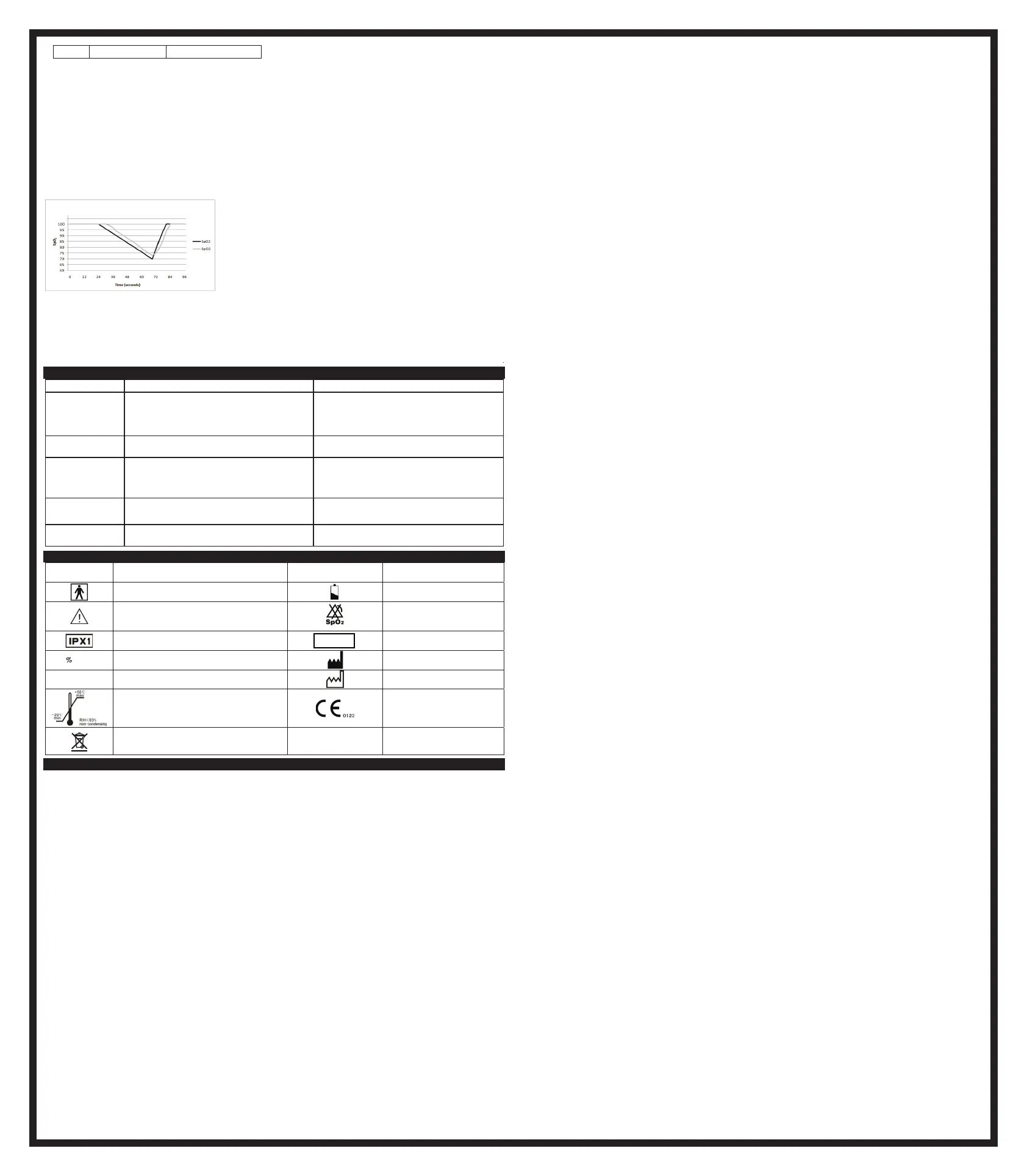

As shown in the following figure. Data update period of slower average is 8s.
8. Classification
According to the type of protection against electric shock: INTERNALLY POWERED EQUIPMENT;
According to the degree of protection against electric shock: TYPE BF APPLIED PART, (applied part: the rubber hole of the device);
According to the degree of protection against ingress of water: IPX1
According to the mode of operation: CONTINUOUS OPERATION
Possible Problems and Solutions
noituloS nosaer elbissoP smelborP
SpO
2
or PR cannot
be shown normally
1. Finger is not inserted correctly
2. User’s SpO
2
value is too low to be measured
1. Retry by inserting the finge
2. There is excessive illumination
3. Try some more times. If you can make sure no
problem exist in the product, please go to a
hospital timely for exact diagnosis.
SpO
2
or PR is shown
unstably
1. Finger might not be inserted deep enough.
2. Excessive user movement
1. Retry by inserting the finger
2. Be calmness
The oximeter cannot
be powered on
1. No battery or low power of battery
2. Batteries might be installed incorrectly
3. The oximeter might be damaged
1. Please replace batteries
2. Please reinstall the batteries
3. Please contact with local customer service centre
Indication lamps are
suddenly off
1. The product is automatically powered off when
no signal is detected longer than 8 seconds
2. The battery power is too low to work
1. Normal
2. Replace the batteries
“Error7” is
displayed on screen
Err 7 means all the emission LED or reception diode
is damaged.
Please contact with local customer service centre
Symbol Definitions
noitinifeD lobmyS noitinifeD lobmyS
Type BF applied part.
Low power indication
Caution
No SpO
2
Alarm
Protected against dripping water.
SN
Serial No.
﹪SpO
2
Oxygen saturation
Manufacturer’s information
PR bpm
Pulse rate (BPM) Date of Manufacture
Storage temperature and relative humidity
European union approval
Waste electrical and electronic equipment
Box Contents
1. Fingertip pulse oximeter
2. One lanyard
3. Two AAA batteries
4. One instruction manual
Notes:
1. The illustrations used in this manual may differ slightly from the appearance of the actual product.
2. The specifications are subject to change without prior notice.
Concord Health Supply, Inc.
Off: 888-970-2999
Fax: 888-970-8999
www.ConcordHealthSupply.com
ALL RIGHTS RESERVED
Issue date: September 25, 2019
