To attach the back wheel, press and hold the pushbutton as you push
the wheel onto the CONCORD FUSION axle, and let it click audibly into
place.
To remove a back wheel, press and hold the pushbutton (20) and pull the
wheel off the axle.

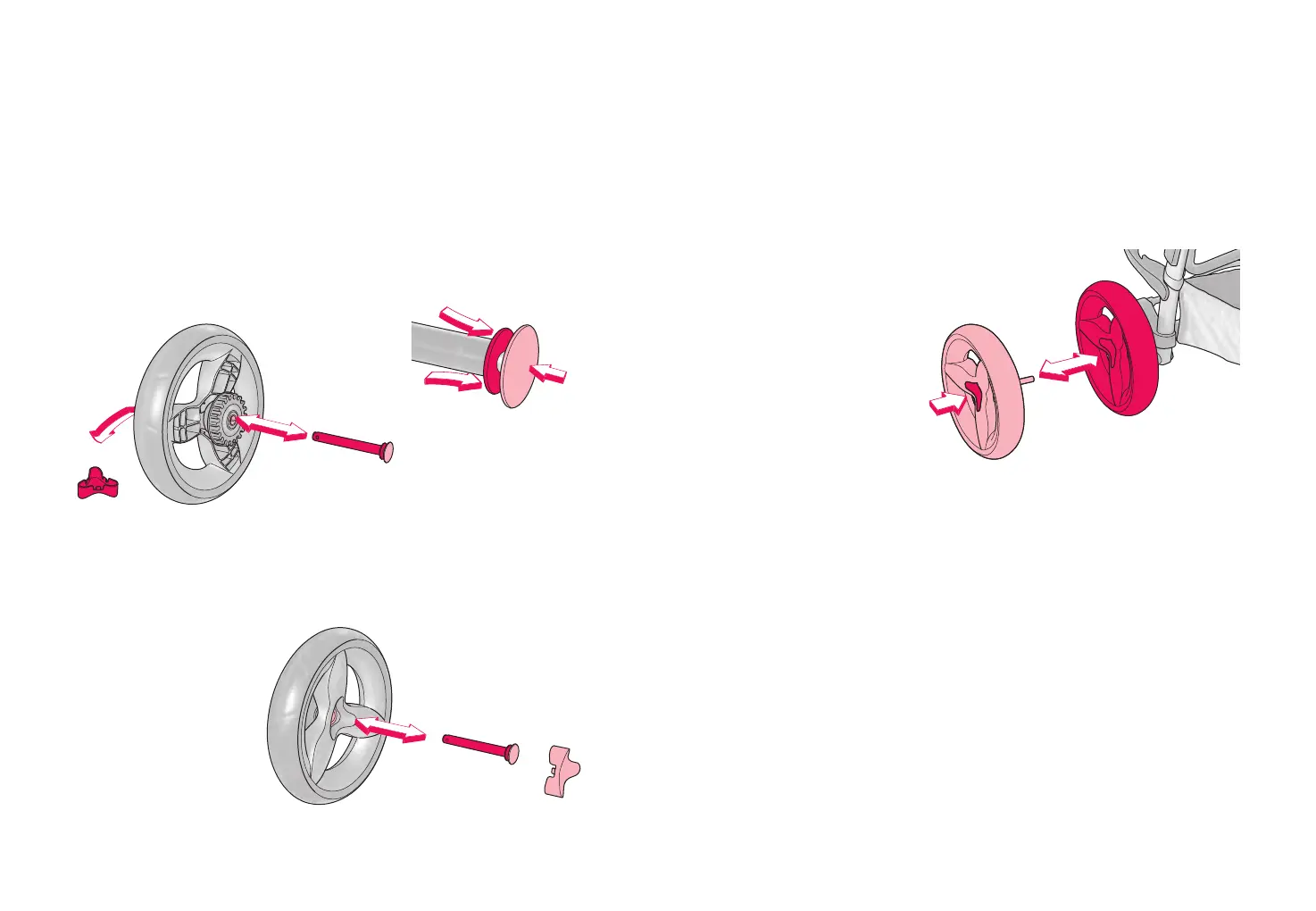

_ ATTACHING AND REMOVING THE REAR wHEELS
You must attach the rear wheels before using the CONCORD FUSION
for the first time. First, remove the wheel cover. To do so, guide the axle
through the hub from the inside of the wheel and push the cover off. Now
press the two rings at the end of the axle together and pull the axle out of
the hub.
Guide the axle through the hub from the front of the wheel. Press on the
cover until it snaps into position.
