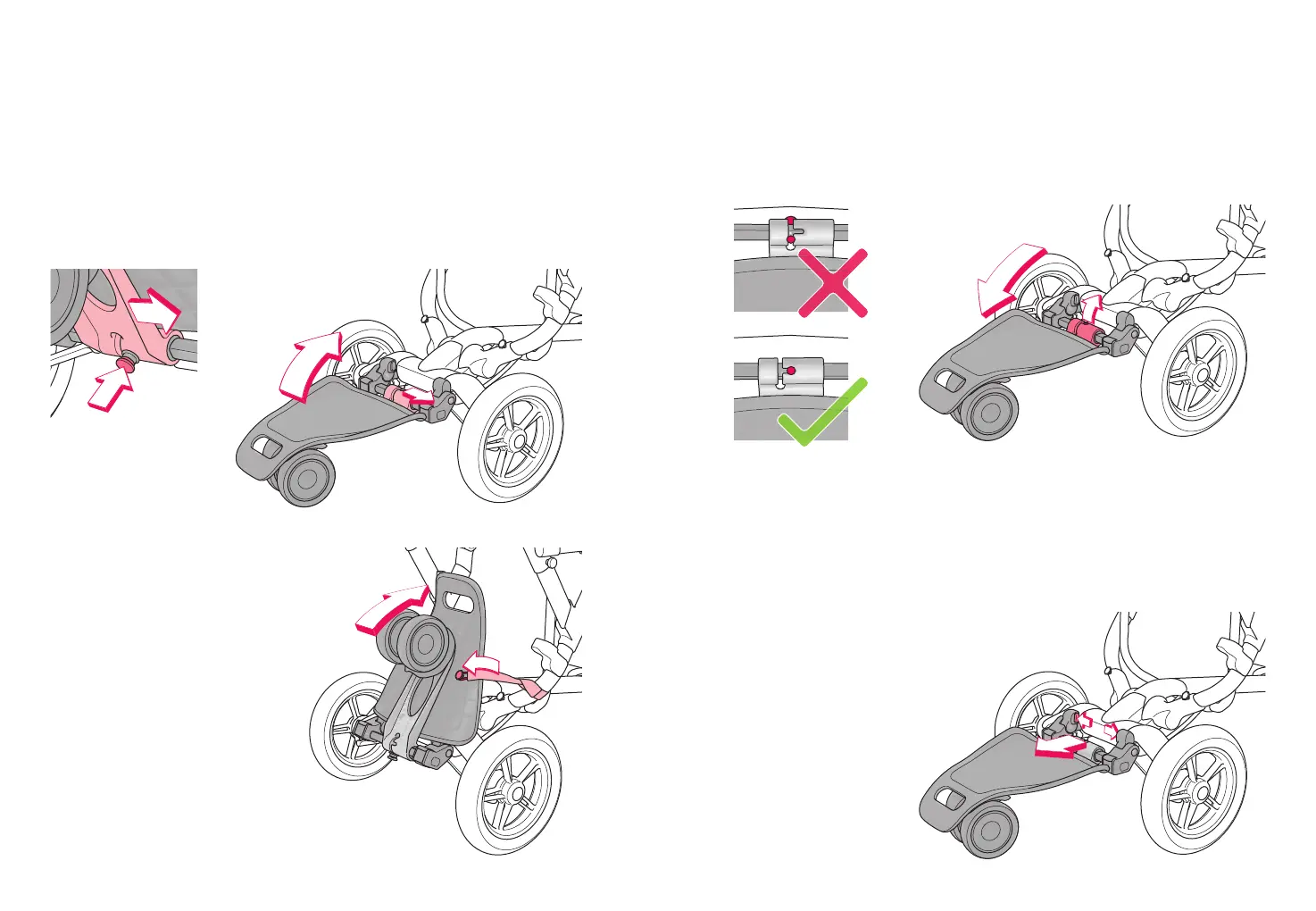

_ STORE THE CONCORD SLIDER ON THE BUGGY
The CONCORD SLIDER can be folded up when no child is to be transported
on it. For this, press the button on the underside of the central hinge (04)
upwards and first push the base (02) to the right and subsequently rotate
upwards.
Attach the CONCORD SLIDER
using the safety belt (03) previously
attached to the CONCORD NEO.
_ REMOVAL OF THE CONCORD SLIDER
Press the unlocking buttons on both adapters
(01) of the CONCORD SLIDER and remove the
CONCORD SLIDER from the receptacle of the
CONCORD NEO to the rear.
To fold down the CONCORD
SLIDER, firmly hold the base (02)
and release the safety belt (03).
Fold down the CONCORD SLIDER and subsequently move the central hinge
(04) upwards and to the left until the locking (05) on the central hinge audibly
and firmly engages.
