Connection SLI 2.2 - SLI 4.2 with OEM Headunit (without ART)

10

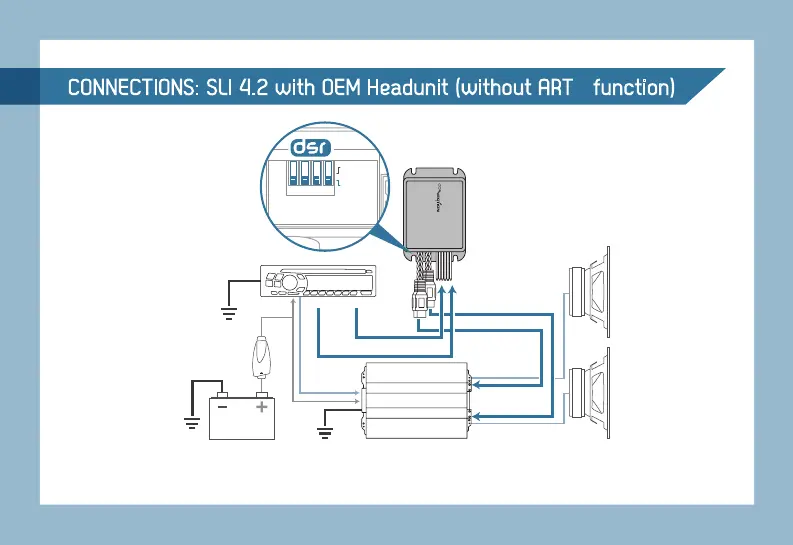

CONNECTIONS: SLI 4.2 with OEM Headunit (without ART
™
function)
OEM Headunit
+ Batt
Fuse
IN (high level)
OUT (low level)
Remote
Front
Front
Rear
Rear
OFF
ON
High Power
(OEM AMP)
Low Power
(OEM SOURCE)
DSR: DOUBLESTEP-DOWNRATIO,allowscorrectlevelinterfacingwithOEMHeadunitorOEMAmplierbyswitchselection.
