Connection SLI 2.2 - SLI 4.2 with OEM Amplifier (with ART)

13

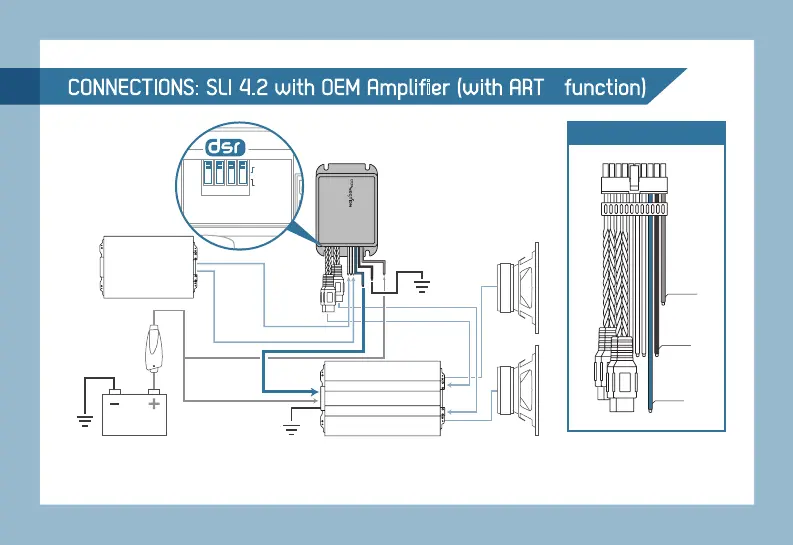

CONNECTIONS: SLI 4.2 with OEM Amplifier (with ART
™
function)
DSR: DOUBLESTEP-DOWNRATIO,allowscorrectlevelinterfacingwithOEMHeadunitorOEMAmplierbyswitchselection.
ART™: AUTOMATICREMOTETURN-ON/OFFfunction,generatesa12VremoteoutputwhentheOEMHeadunit/AmplieristurnedON/OFF
 (availableonlywhenSLIispowered).
**
IncountrieswherethelegislationonelectromagneticcompatibilityisnotmandatoryunderECE/UNRegulationno.10/5.
RED
+12 V
GND
Black
REM OUT
Blue
ART
TM
FUNCTION
OEM
AMPLIFIER
+ Batt
Fuse
IN (high level)
Rear
Rear
Front
Front
OUT (low level)
Remote
OFF
ON
High Power
(OEM AMP)
Low Power
(OEM SOURCE)
