Assembly Instructions
Tubes Table

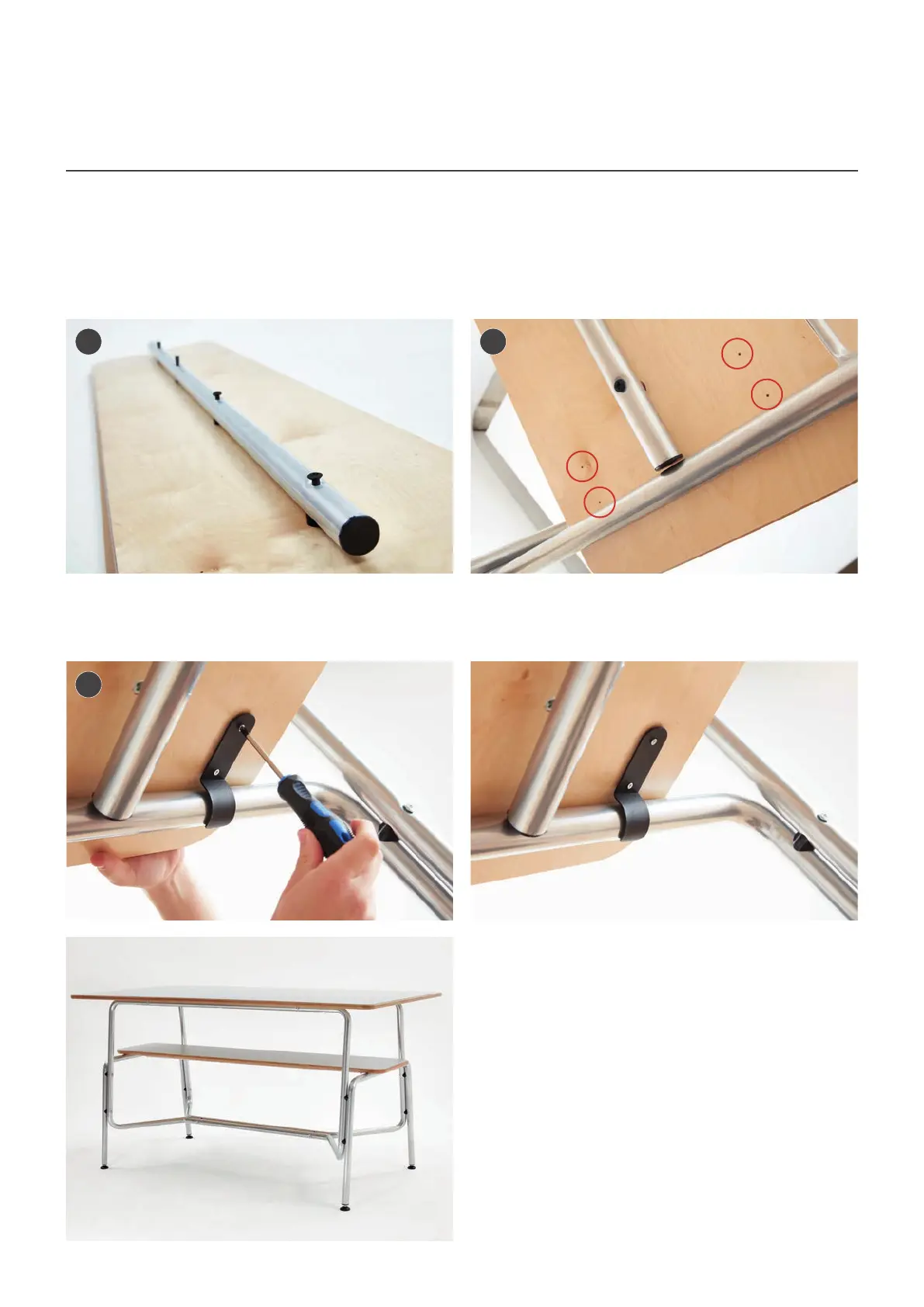

8. Once centralised, hook shelf brackets (G) to frame and use 2 x wood screws (H) to attach to the undershelf.
This needs to be repeated 4 times, twice per end, to securely fasten the undershelf
Your Tubes table with undershelf is now complete
Attaching the Undershelf (Optional)
6. Position 4 x half saddle washers (D) above pre-cut holes on underside of the undershelf. Place undershelf
support rail on top of spacers and connect with 4 x M8x50 CSK bolts (C).
7. Position undershelf and support rail on top of adjacent table legs. Ensure that undershelf table top is central
to frame. Locate pre-cut holes on either side of undershelf for where shelf brackets (G) need to be connected.
