Continental Access CICP2800PMBD - Seat SRAM Module; Reconnect Power and Verify

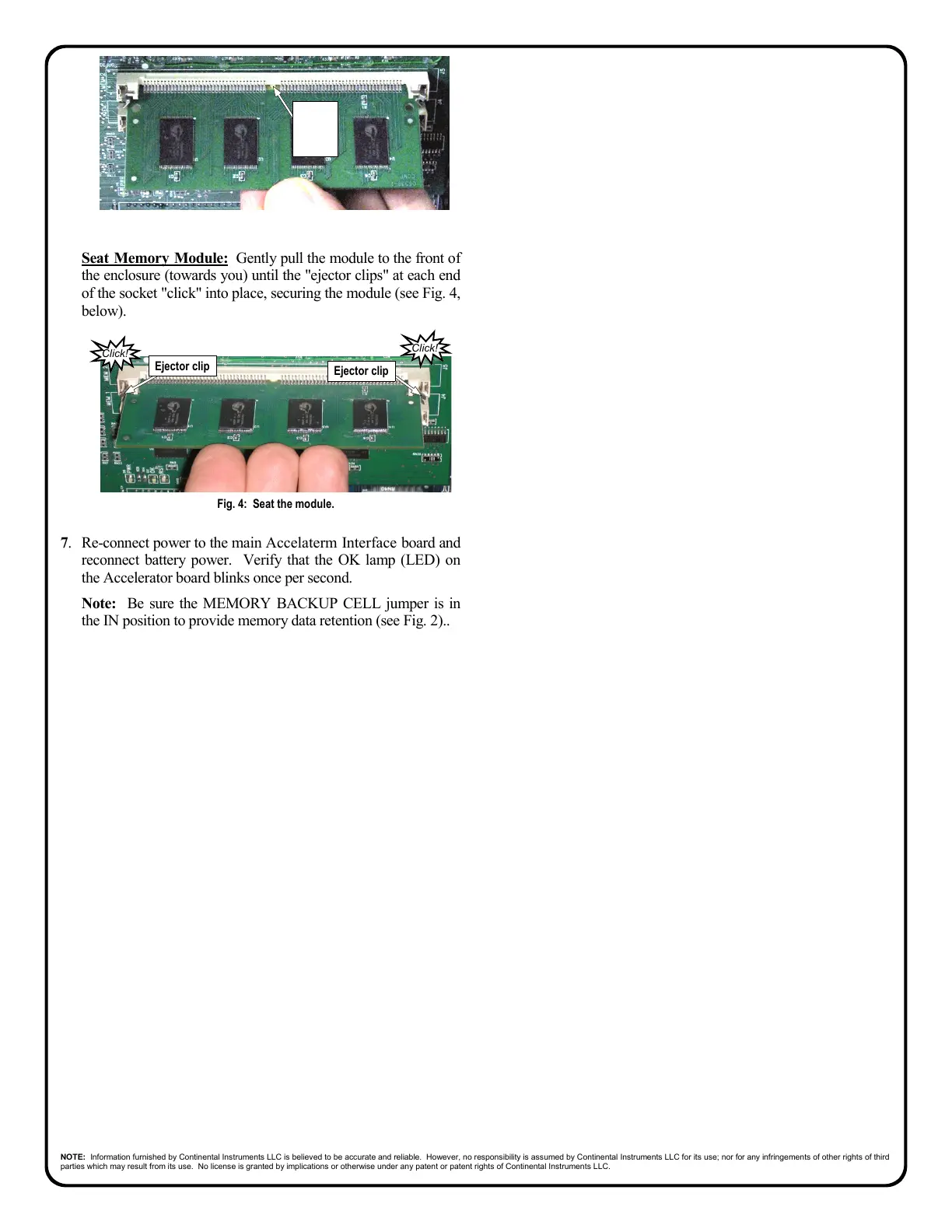

Seat Memory Module: Gently pull the module to the front of
the enclosure (towards you) until the "ejector clips" at each end
of the socket "click" into place, securing the module (see Fig. 4,
below).
7. Re-connect power to the main Accelaterm Interface board and
reconnect battery power. Verify that the OK lamp (LED) on
the Accelerator board blinks once per second.
Note: Be sure the MEMORY BACKUP CELL jumper is in
the IN position to provide memory data retention (see Fig. 2)..
NOTE: Information furnished by Continental Instruments LLC is believed to be accurate and reliable. However, no responsibility is assumed by Continental Instruments LLC for its use; nor for any infringements of other rights of third
parties which may result from its use. No license is granted by implications or otherwise under any patent or patent rights of Continental Instruments LLC.
Fig. 4: Seat the module.
Click!
Ejector clip
Click!
Ejector clip
Fig. 3: Align the module.
Notch
and
bridge
