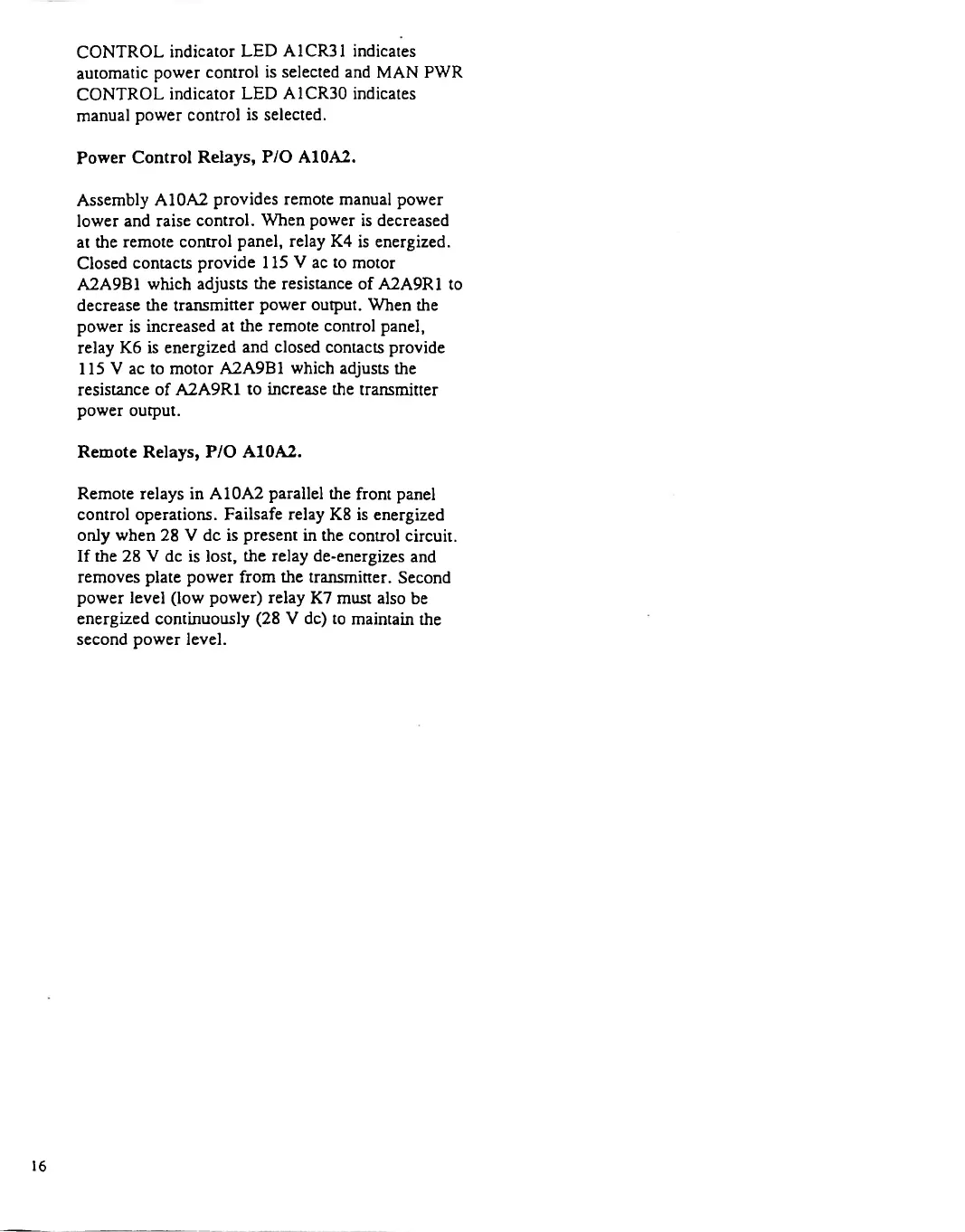

CONTROL
indicator
LED
A1CR31
indicates
automatic
power
control
is
selected
and
MAN
PWR
CONTROL
indicator
LED
A1CR30
indicates
manual
power
control
is
selected.
Power
Control
Relays,
P/O
A10A2.
Assembly
A10A2
provides
remote
manual
power
lower
and
raise
control.
When
power
is
decreased
at
the
remote
control
panel,
relay
K4
is
energized.
Closed
contacts
provide
115
V
ac
to
motor
A2A9B1
which
adjusts
the
resistance
of
A2A9R1
to
decrease
the
transmitter
power
output.
When
the
power
is
increased
at
the
remote
control
panel,
relay
K6
is
energized
and
closed
contacts
provide
115
V
ac
to
motor
A2A9B1
which
adjusts
the
resistance
of
A2A9R1
to
increase
the
transmitter
power
output.
Remote
Relays,
P/O
A10A2.
Remote
relays
in
A10A2
parallel
the
front
panel
control
operations.
Failsafe
relay
K8
is
energized
only
when
28
V
de
is
present
in
the
control
circuit.
If
the
28
V
de
is
lost,
the
relay
de-energizes
and
removes
plate
power
from
the
transmitter.
Second
power
level
(low
power)
relay
K7
must
also
be
energized
continuously
(28
V
de)
to
maintain
the
second
power
level.
16
