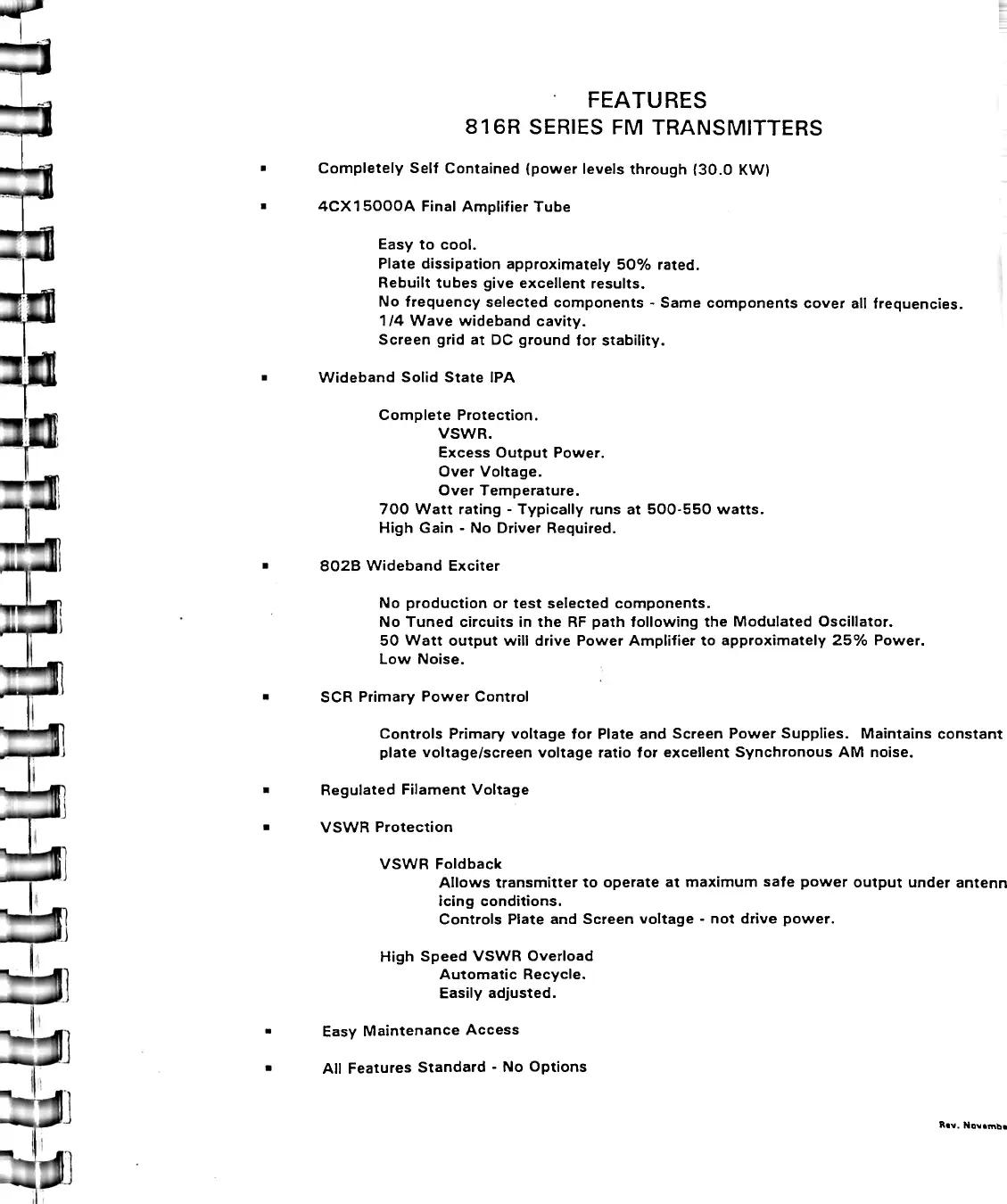

FEATURES
81 6R SERIES FM TRANSMITTERS
Completely Self Contained (power levels through (30.0 KW)
4CX15000A Final Amplifier Tube
Easy to cool.
Plate dissipation approximately 50% rated.
Rebuilt tubes give excellent results.
No frequency selected components - Same components cover all frequencies.
1/4 Wave wideband cavity.
Screen grid at DC ground for stability.
Wideband Solid State IPA
Complete Protection.
VSWR.
Excess Output Power.
Over Voltage.
Over Temperature.
700 Watt rating - Typically runs at 500-550 watts.
High Gain - No Driver Required.
802B Wideband Exciter
No production or test selected components.
No Tuned circuits in the RF path following the Modulated Oscillator.
50 Watt output will drive Power Amplifier to approximately 25% Power.
Low Noise.
SCR Primary Power Control
Controls Primary voltage for Plate and Screen Power Supplies. Maintains constant
plate voltage/screen voltage ratio for excellent Synchronous AM noise.
Regulated Filament Voltage
VSWR Protection
VSWR Foldback
Allows transmitter to operate at maximum safe power output under antenn
icing conditions.
Controls Plate and Screen voltage - not drive power.
High Speed VSWR Overload
Automatic Recycle.
Easily adjusted.
Easy Maintenance Access
All Features Standard - No Options
Rev. Novembe
