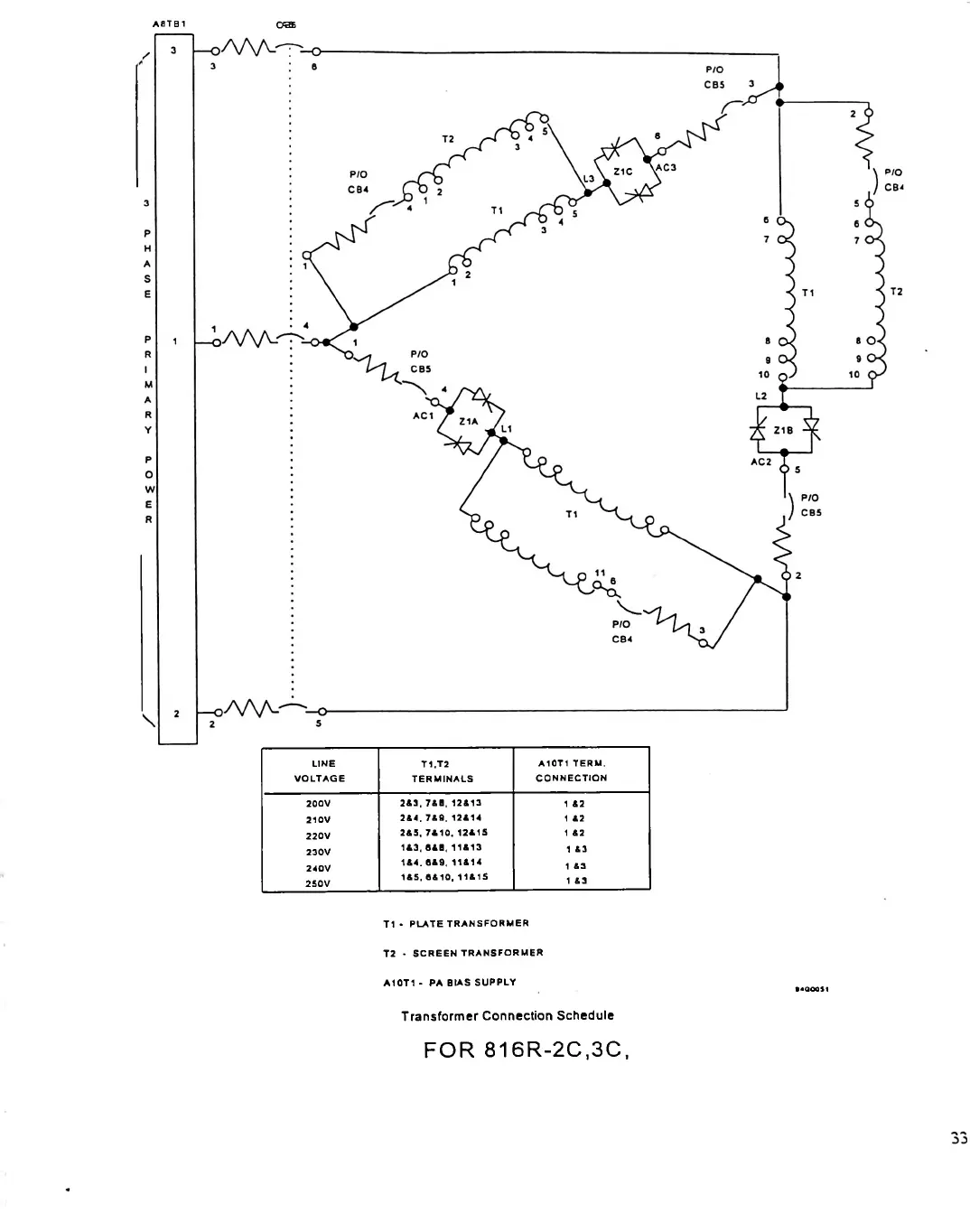

Continental Electronics 816R - Transformer and Wiring Diagrams

A8TB1 O®
LINE
VOLTAGE
T1.T2
TERMINALS
A10T1 TERM.
CONNECTION
200V
243, 748, 12413
1 42
210V
244. 749. 12414
1 42
220V
245, 7410, 12415 1 42
230V
143, 848, 11413
1 43
240V
144, 849, 11414
1 43
250V
145, 6410, 11415
1 43
T1 • PLATE TRANSFORMER
T2 • SCREEN TRANSFORMER
A10T1 - PA BIAS SUPPLY
Transformer Connection Schedule
•4G00S1
FOR 816R-2C.3C
