Control 4 C4-DSC-EN-BL User Manual

Option 5: WiFi Connection with DC Power
This option sets up WiFi and DC power.
Ensure that you have WiFi in the home.
NOTE: WiFi requires an antenna (sold
separately).
To install the Door Station with WiFi and DC power:
1 Connect a ground wire from the Door Station to
one of the back box lugs (see Figure 12).
2 Connect a second earth-ground or house-ground
wire from the second back box lug to the home.
See “Grounding Requirements” for details about
earth grounding.
3 Connect the negative (-) and positive (+) wires
to the DC power source for the Door Station
according to the national and local electrical
codes.
NOTE: The positive (+) wire’s connector is
located on the bottom left side of the Door
Station’s plate.
4 Your installation may require alternative wires and
the use of a terminal block. Strip the power wires
to 1/4” on the end if necessary.
5 Attach the antenna (3m or 26cm) to the Door
Station. See “WiFi Antenna Kit Installation” for
details.
6 Run the antenna wire through the back box hole
(see Figure 12). Ensure that the wire doesn’t
touch the back box.
7 Align the antenna vertically to the wall outside
the back box (26cm antenna) or run the antenna
through the wall (3m antenna).

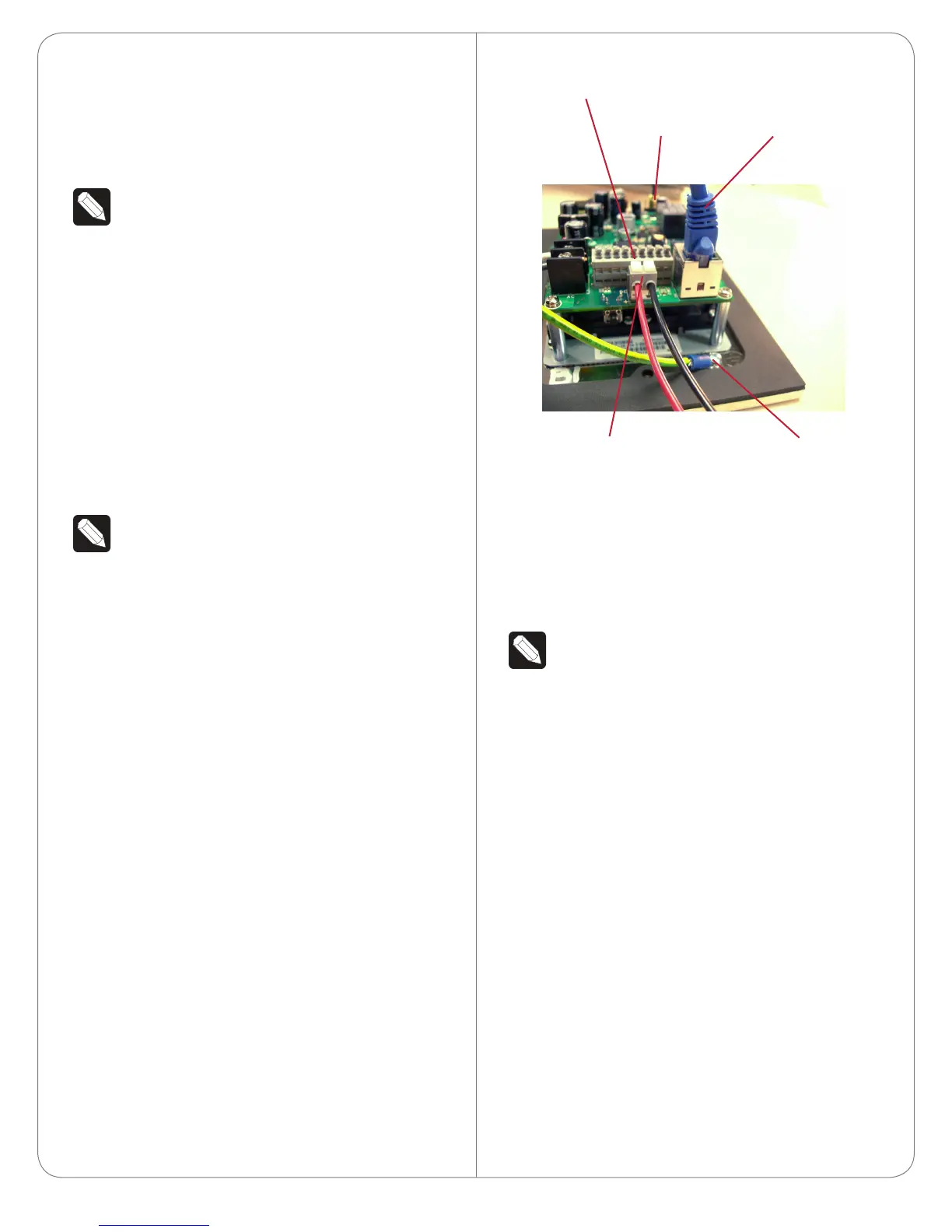

Figure 7. WiFi with DC Power
Option 6: WiFi Connection with PoE
This option sets up WiFi and PoE.
Ensure that you have WiFi in the home.
NOTE: WiFi requires an antenna (sold
separately).
To install the Door Station with WiFi and PoE:
1 Plug the Ethernet cable into the Door Station
(see Figure 8).
2 Connect a ground wire from the Door Station to
one of the back box lugs (see Figure 12).
3 Connect a second earth-ground or house-ground
wire from the second back box lug to the home.
See “Grounding Requirements” for details about
earth grounding.
4 Attach the antenna (3m or 26cm) to the Door
Station. See “WiFi Antenna Kit Installation” for
details.
5 Run the antenna wire through the back box hole
(see Figure 12). Ensure that the wire doesn’t
touch the back box.
6 Align the antenna vertically to the wall outside
the back box (26cm antenna) or run the antenna
through the wall (3m antenna).
6
Ground Wire
DC Connections
(Hot and Load)
Ethernet Connection
Antenna
Contacts and Relays
