Control 4 C4-HC300-B User Manual

Technical Specications
Model Number
• C4-HC300-B
Connections
• Audio Input: 1 analog
• Audio Output: 2 analog
• Video Input/Output: 2 video sensing inputs; component, S-video, and composite video out
• On-screen display output: SD or HD
• Serial: 2 DB9 RS232 connectors
• Contact: 1 input, pluggable terminal blocks
• Relay: 1 output, pluggable terminal blocks
• IR: 1 front panel input, 1 front panel blaster output
6 outputs, 3.5mm jacks
• USB: 2 rear, USB 2.0
Communications
• Wireless ZigBee (802.15.4) mesh networking
• Ethernet (802.3) 10/100base-T, RJ45 jack
Power Requirements
• 120 to 240 VAC, 50 or 60 Hertz
Dimensions
• H x W x D: 2.8” x 12” x 7.25”
• Weight: 5.2 lbs (with remote)
Home Controller HC
-
300
©2007 Control4. All rights reserved. Control4 and the Control4 logo are registered trademarks. All other trademarks are property of their respective owners.
Control4 • 11734 South Election Road • Salt Lake City, Utah 84020 • p: 801.523.3100/1.888.400.4070 • f: 801.523.3199 • www.control4.com

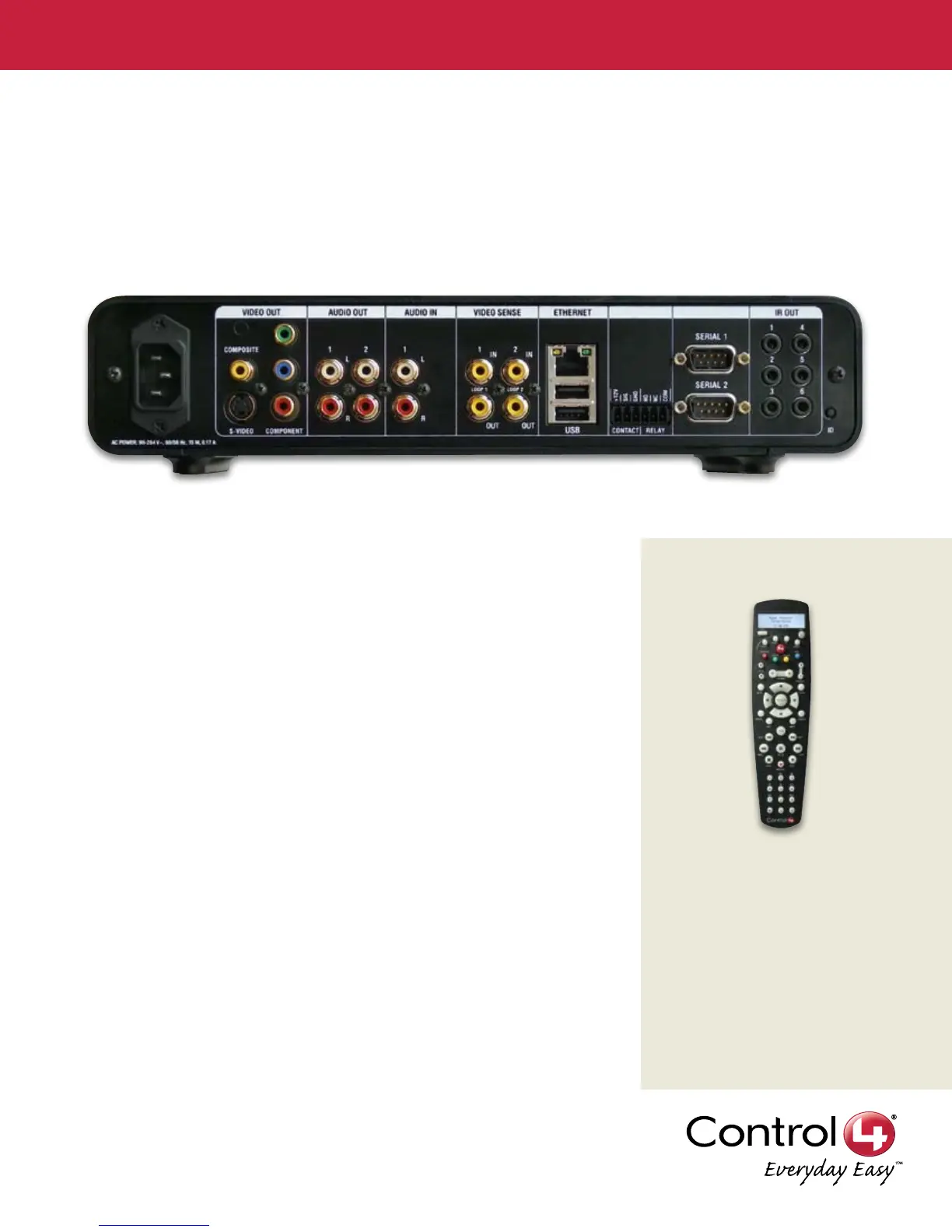

Control4 System Remote Control
