TRIAD INSTALLATION GUIDE - 8×8 and 24×24 AUDIO MATRIX SWITCH
www.control4.com | 1-888-400-4072 | DOC-00287-A 2017-08-28 DH

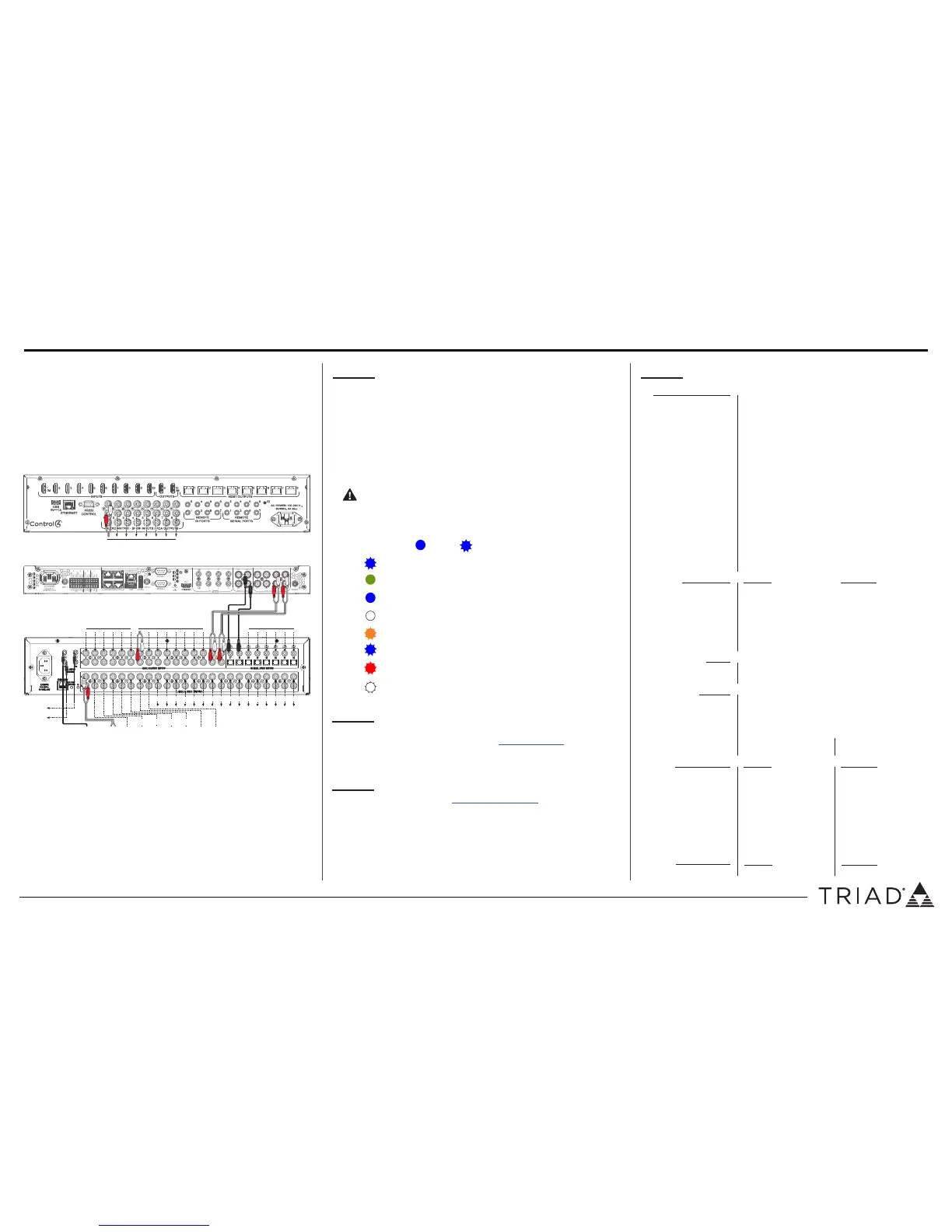

ADDING A 10×10 HDMI SWITCH TO A 24 SOURCE, 24 ZONE
SYSTEM
You can add audio from your HDMI sources to your 24-zone distributed
audio system using a Control 10×10 HDMI Matrix Switch (C4-LU1082D).
Repeat steps 1-3 in the 24 source, 24 zone system setup.
4 Connect eight stereo RCA cables from the RCA OUTPUTS of the HDMI
switch to the ANALOG AUDIO INPUTS on the audio matrix switch.
TROUBLESHOOTING
RESETTING THE MATRIX SWITCH
• Network reset—Remove the power cord to power cycle the device.
Hold the ID button while you replace the power cord to power on the
matrix switch. Hold the ID button until you see Status LED show solid
orange.
• Factory restore—Press and hold the FACTORY RESTORE button for
five seconds to restore the device to its previous firmware image and
restore the defaults. The Status LED will blink white rapidly when the
factore restore begins.
Caution! The factory restore process will restore the matrix switch
to a factory state and replace the firmware image with the factory
default firmware.
LED TROUBLESHOOTING GUIDE
Status LED = solid = flashing
Matrix switch is booting
Matrix switch finished booting and has IP address
Matrix switch is connected to Director
An audio output is active (white LED)
Matrix switch does not have an IP address
Firmware update in progress
Firmware update error
Factore restore in progress (flashing white LED)
REGULATORY/SAFETY INFORMATION
To review regulatory information for your particular Triad products, see the
information located on the Triad website at triadspkrs.co/reg.
WARRANTY
Limited 2-year Warranty. Go to triadspkrs.co/warranty for details.
SPECIFICATIONS
AUDIO SPECIFICATIONS
THD <0.005 %, 20 Hz – 20 kHz
Dynamic range 100 dB, A-weighted—input to output
SNR >105 dB, A-weighted—input to output
Frequency response 20 Hz – 20 kHz +/- 0.2 dB
Input impedance Minimum 12 K Ohms
Input voltage 2V RMS
Volume control per channel 0.5 dB steps, +0 to -80 dB range
Mute Available on all outputs
Source input gain 0.5 dB steps, 0dB to +12dB on every input
Mono summing Configurable per stereo output pair, each output combines the L/R
input signal.
5-band parametric EQ Adjustable per stereo output. +/- 12 dB, 0.5 dB steps
Supported sample rates 44.1 kHz, 48 kHz, 96 kHz, 192 kHz—at 16- or 24-bit resolution
Tone control (bass/treble) +/- 12 dB, 0.5 dB steps
Balance Adjustable on each output—left 12 dB to right 12 dB
Loudness Available on each output
Analog output voltage 2V RMS / 5V max
CONNECTIONS 8×8 AMS 24×24 AMS
Source inputs
(Digital inputs are either coax or
optical and are stereo PCM only)
8 × stereo analog (RCA)
4 × digital coax
4 × digital optical
Inputs 5-8 are either analog or
digital
16 × stereo analog (RCA)
8 × digital coax
8 × digital optical
Zone outputs 8 × stereo analog (RCA) 24 × stereo analog (RCA)
12V trigger outputs 2 × mono 3.5 mm outputs 4 × mono 3.5 mm outputs
Dimensions With Feet 2.14” x 17.33” x 9.84” 3.89” x 17.33” x 9.84”
POWER
AC mains power Universal 100 - 240VAC, 50 - 60 Hz, 10W (8 × 8), 20W (24 × 24)
Power connection IEC 320 C13 power connector with 3-pole detachable power cord
THERMAL
Operating temperature 32 °F ~ 113 °F (0 °C ~ 45 °C)
Humidity 5% to 95% non-condensing
Storage -4 °F ~ 158 °F (-20 °C ~ 70 °C)
Cooling method Passively cooled-no fans
Thermal dissipation
(heat losses)
1.32W / 4.5 BTU/hour (standby)
7.09W / 24.2 BTU/hour
1.79W / 6.1 BTU/hour (standby)
15.22W / 52 BTU/hour
MISCELLANEOUS 8×8 AMS 24×24 AMS
Front power LED 1 × RGB status LED 1 × RGB status LED
System status LED 1 × RGB LED 1 × RGB LED
Ethernet 1 × RJ-45 1 × RJ-45
ID button Yes Yes
Factory restore button Ye s Yes
Dimensions without feet
(H × W × D)
1.75 × 17.5 × 10.38"
(4.4 × 44.5 × 26.4 cm)
3.5 × 17.5 × 10.38"
(8.9 × 44.5 × 26.4 cm)
Dimensions with feet
(H × W × D)
2.13 × 17.5 × 10.38"
(5.4 × 44.5 × 26.4 cm)
3.88 × 17.5 × 10.38"
(9.8 × 44.5 × 26.4 cm)
PRODUCT NUMBER
8×8 AMS 24×24 AMS
TS-AMS8 TS-AMS24
Copyright ©2017, Control4 Corporation. All rights reserved. Control4, the Control4 logo, the 4-ball logo, 4Sight, Control My
Home, and Mockupancy are registered trademarks or trademarks of Control4 Corporation in the United States and/or other
countries. All other names and brands may be claimed as the property of their respective owners. All specifications subject
to change without notice.
