Coolaroo Butterfly - Gazebo Assembly; Step 1: Parts Identification

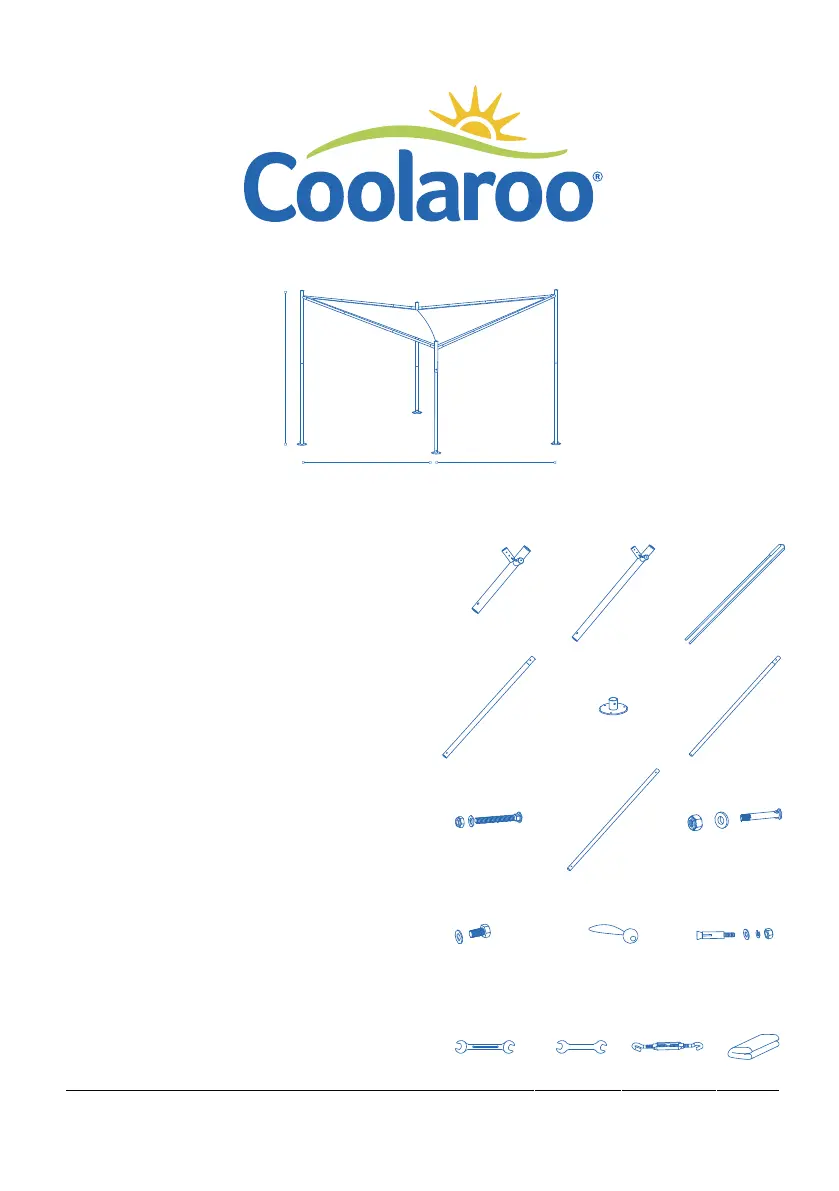

STEP 1
Take all parts out of the box and ensure
they are all present.
a) & b) Upper corner poles x 2
c) Cover poles x 4
d) Lower leg poles x 4
e) Feet x 4
f) Common pole x 8
g) Common bolts x 16
h) Centre pole x 4
i) Leg bolts with plastic caps x 4
j) Lower leg pole bolts with plastic caps x 4
k) Elastic bobbles
l) Feet bolts x 12
m) Spanner 1 (for lower leg pole bolts)
n) Spanner 2 (for upper corner pole bolts)
o) Turnbuckles
p) Canopy
STEP 2
Measure a 4 x 4m square in the position
you want the gazebo, mark the four
corners with chalk or tape. Ensure the
pole feet are placed on these markings
with even spacing between poles to
provide a sound structure.
STEP 4
Connect the common poles (f) into upper
corner poles (a) and (b) as shown.
Using spanner (n) provided secure with
common bolts (g).
STEP 6
Unfold the canopy (p).
STEP 5
Attach the feet (e) into lower leg poles (d)
using bolts (j) and tool (m).
STEP 7
Insert the four cover poles (c) along the
edges of the canopy. Connect corners
of the canopy to the corners of the frame
with the turnbuckles (o).
STEP 8
Secure the edges of canopy to frame with
elastic bobbles (k). Tighten the turnbuckles
(o) by rotating.
STEP 9
Li the assembled upper section of the
gazebo and insert the lower leg poles (d)
into the upper corner poles (a) and (b).
Secure the connection with bolts and
plastic caps (i).
STEP 10
Once erect, ensure the Buttery gazebo
is rmly secured to a stable surface, you
can use feet bolts (l) if desired.
2.9m/9
'6"
4m/13'1"4m/13'1"
BUTTERFLY
ASSEMBLY GUIDE
i
m
a
d
g
j
n
b
e
h
k
o
c
f
l
p
STEP 3
Connect the common poles (f) using
centre poles (h) as shown.
f
f f
f
f
f
f
f
h
h
h
h
a
b
f
f
h
f
g
a
n
f
f
b
g
n
d
d
e
j
m
l
p
a
a
bb
o
c
c
p
p
p
k
o
p
p
d
d
d
b
b
a a
d
d
m
i
f
f f
f
f
f
f
f
h
h
h
h
a
b
f
f
h
