Coolaroo FAIRHAVEN - Step 8: End Beam Installation

13
STEP 8

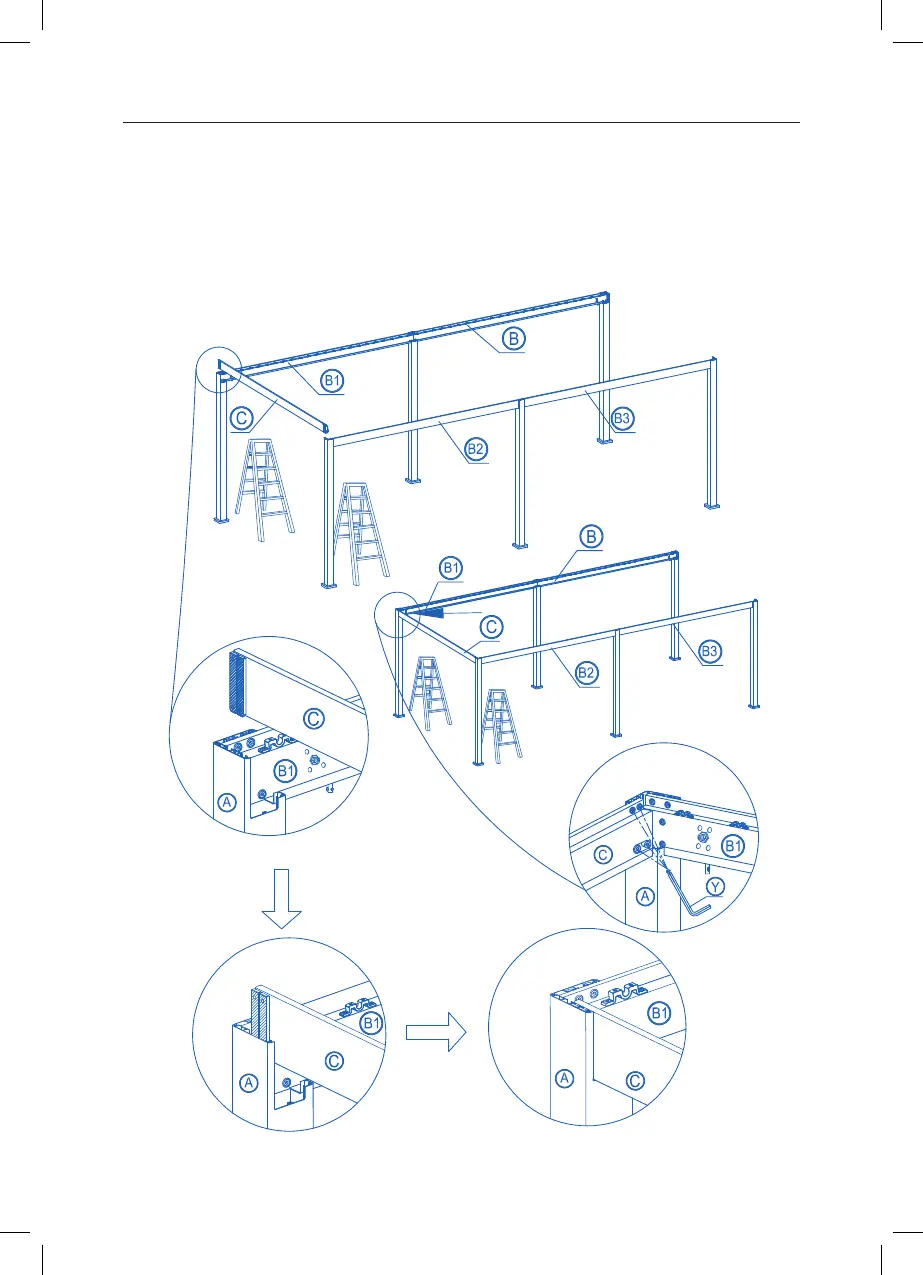

This step will require additional people and two ladders to help stand up each side
of the gazebo whilst installing the end beams (C). Raise both sides of the gazebo up.
Hold into position and slide in end beam (C) into the post (A) on the le and right side.
Tighten screws with Allen Key (Y).
Figure 8.
