STEP 24
Secure the feet of the gazebo into the ground. For a hard surface such as concrete
or tile, drill holes into the surface through the holes in the feet and install the
supplied anchor bolts (W). For other surfaces, use another suitable fastener
to secure the gazebo down.
Position the centre post top plate (N1) and secure using screws (R). Repeat this step
on the other side of the gazebo at the top of the centre post.

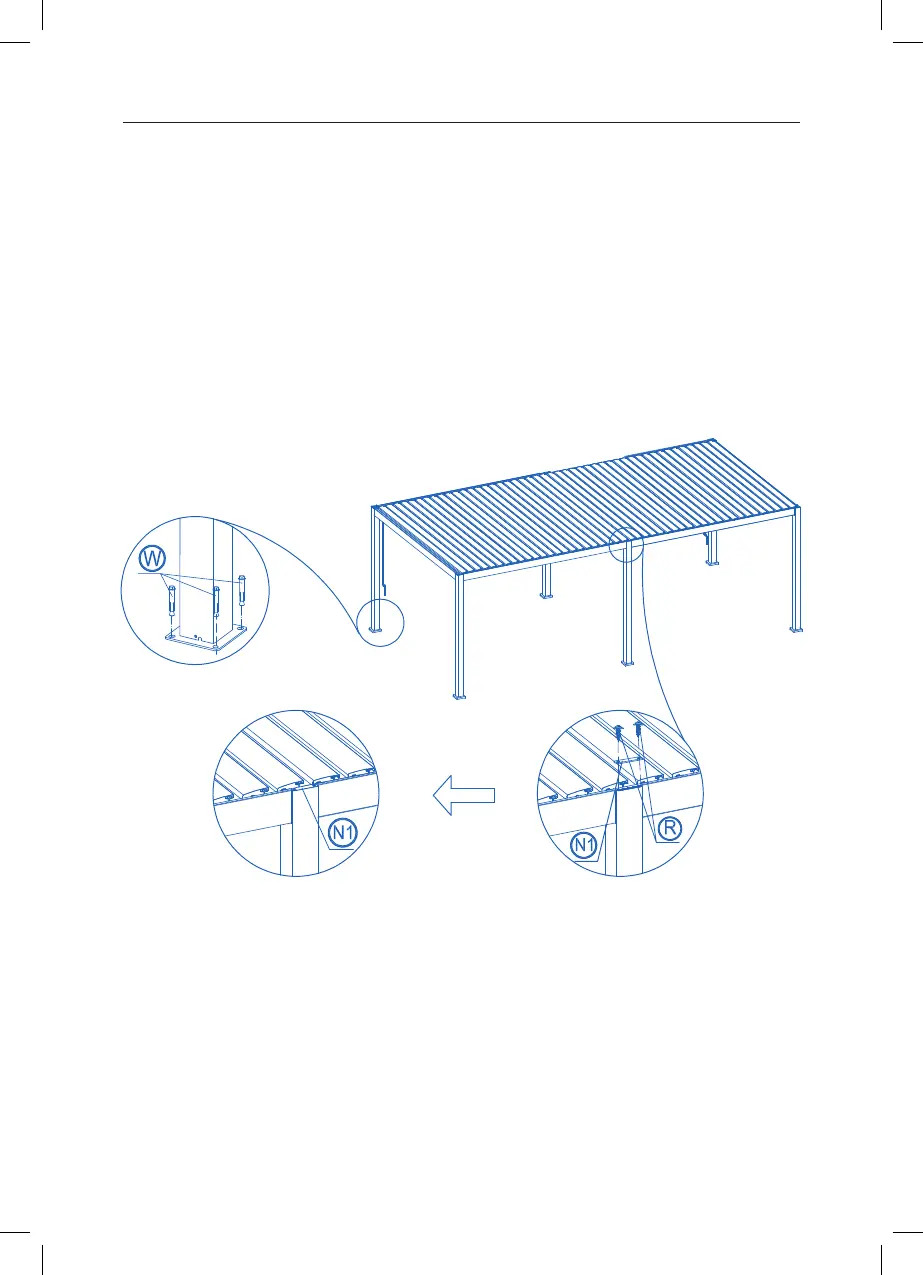

Figure 24.
