Coolaroo FAIRHAVEN - Page 7

7
STEP 2
Slide a collar (I) over the bottom of one of the posts (A) as shown in gure 2, with
the rounded part of the collar facing towards the top of the leg. Position base plate (J)
over the bottom of the leg section and ax to the leg using 6 screws (O). Repeat this
process for the other three corner posts.
×4 times

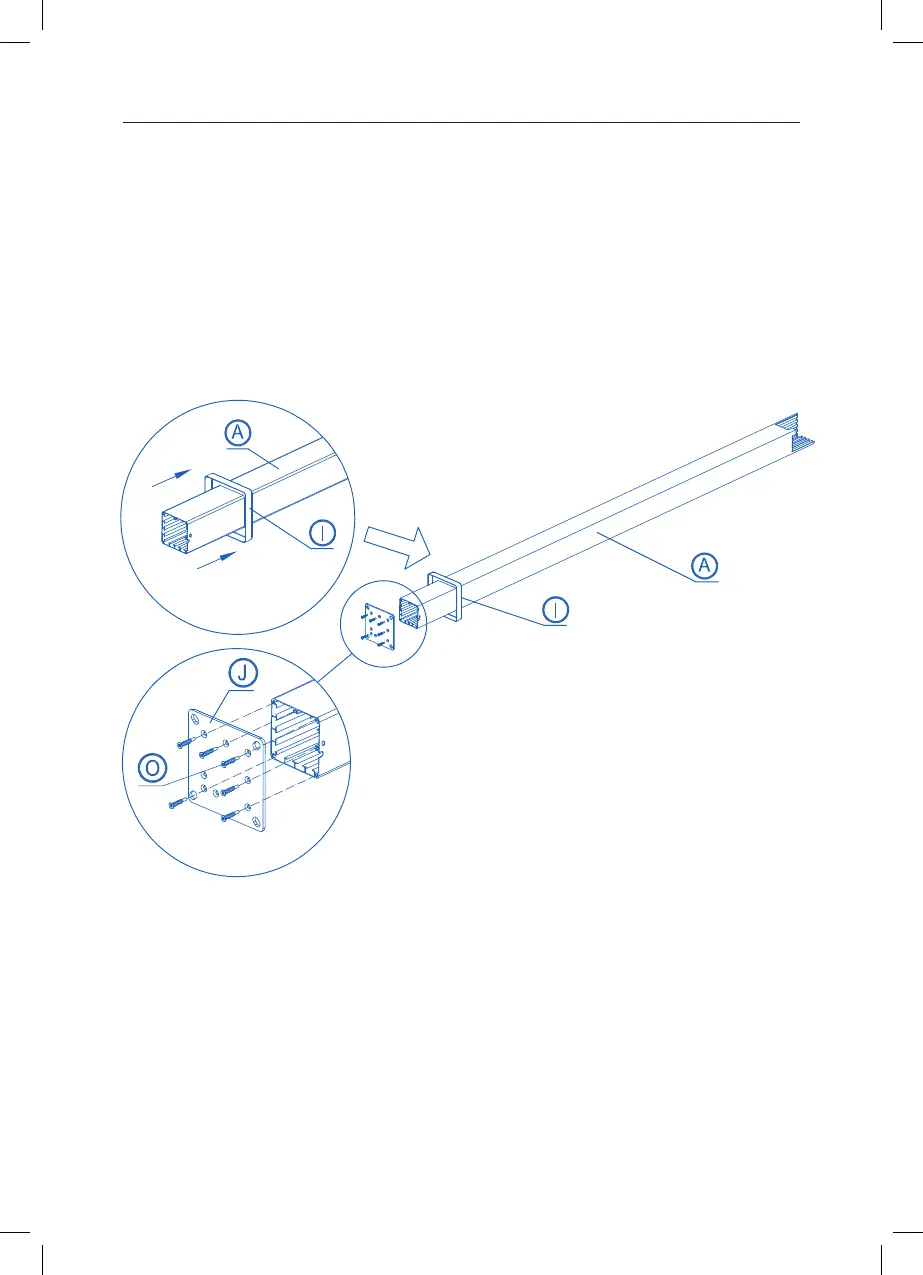

Figure 2.
