COOPER LIGHTING SOLUTIONS IB51974424 Installation instructions
Installation Instructions – T-Grid Mounting Bracket

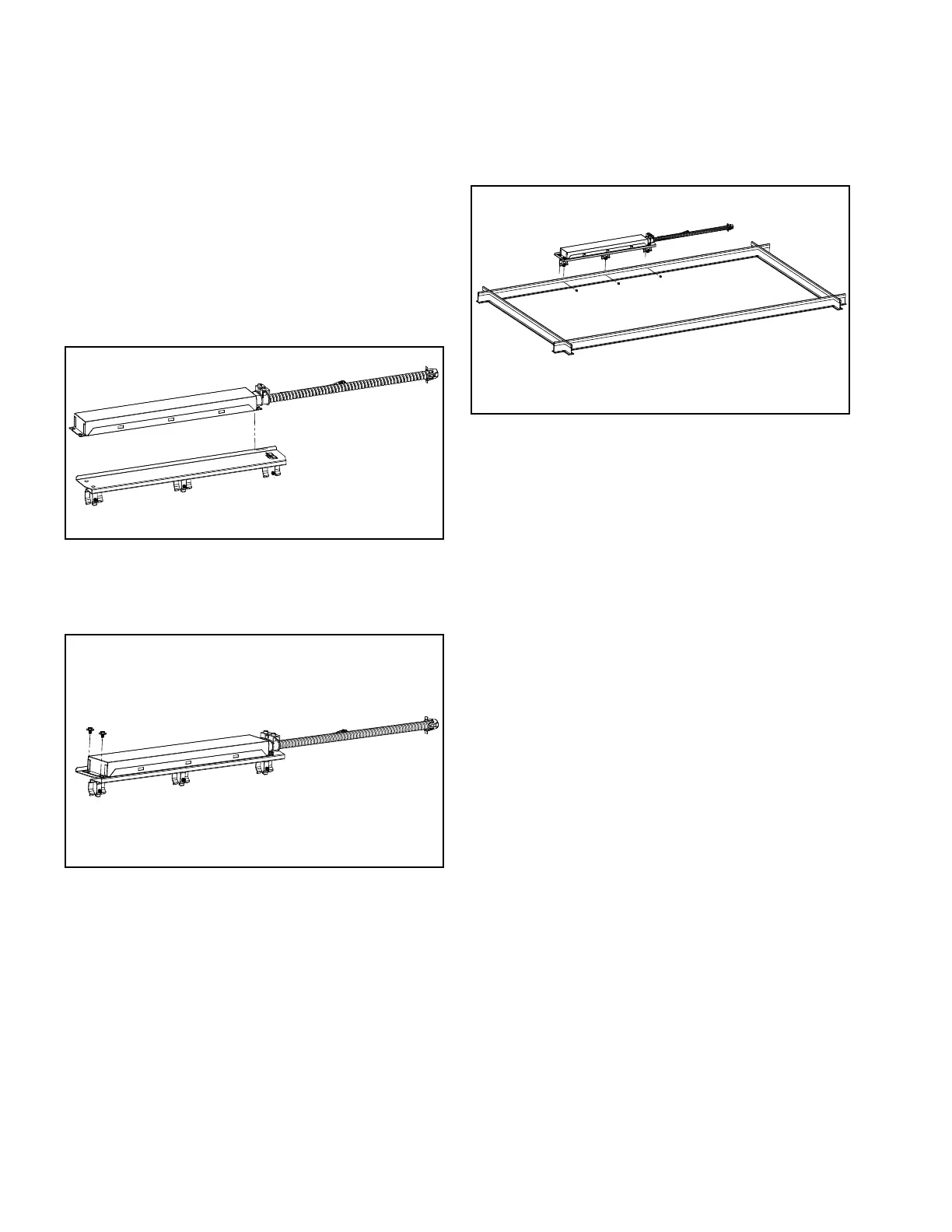

Figure 1.
PRE-INSTALLATION
ote: N This kit is intended only for grid installed fixtures.
INSTALLATION
1. For detailed instruction on connecting the emergency
battery to the LED driver, refer to the Installation
instructions of the emergency battery.
2. Slide the emergency battery, aluminum flex side, into
the crow’s foot on the bracket. (Figure 1.)
Figure 2.
Figure 3.
3. Screw the 2 gold screws into the bracket locking the
emergency battery onto the bracket. (Figure 2.)
4. Snap the bracket tabs onto the T-grid and install the
screws to secure it. (Figure 3.)
5. Mount the test button box accessible to technicians.
