1.2. Place Selections
• 


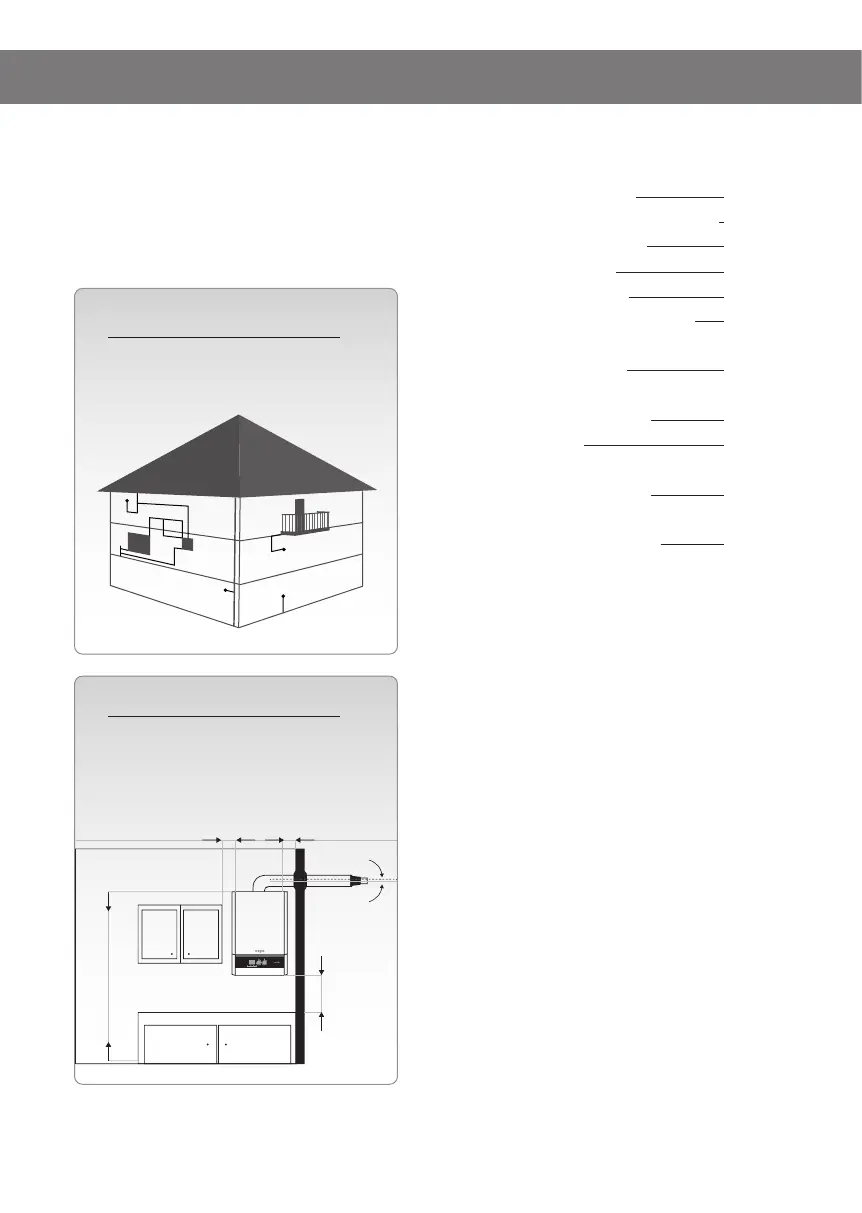

Drawings 1.2.1 ve 1.2.2.
27
The Critical Dimensions to the
Installation of the Product.
The Wall and The Chimney’s
Installation Dimensions of
The Product
























Minimum Distances Are Below As CM
A - 
B - 
C - 
D - 
E - 
F - 
G -  

H - 
İ - 
J - 
K - 

L - 

60 cm
60 cm
30 cm
30 cm
40 cm
60 cm
60 cm
30 cm
100 cm
150 cm
100 cm
180 cm
Drawing 1.2.1
Drawing 1.2.2
E
H
A
B
G
D
I
C
F
min.10 cm
190 cm
min.10 cm
min.30 cm
2º
