Grounding Setup:
This appliance should be grounded to minimize the
possibility of electric shock. This appliance is equipped
with an electric cord having an equipment grounding
conductor and a grounding type plug. The plug
must be plugged into an outlet that is installed and
grounded in accordance with all appropriate codes
and ordinances.
This appliance is for use on a nominal 120-volt circuit,
and has a grounding plug that looks like the plug
illustrated in Figure 3.
A temporary adapter which looks like the adapter
shown (Figure 4) may be used to connect this plug
to a two-pole receptacle as shown in Figure 3, if a
grounded outlet is not available. The temporary
adapter should be used only until a grounded outlet
can be installed by a qualied electrician.
(Temporary adapter not included.)
Grounding Installation:
The green-colored ground terminal (screw, and the
like) extending from the adapter must be fastened to
a permanent ground such as a grounded outlet box.
1. Plug temporary adapter into two-pole outlet
(Figure 5).
2. Insert screw through rigid ear on temporary
adapter and into grounded outlet box (Figure 6).
Power Strip Setup
1. If using a powerstrip, the ground connector must
be plugged into a receptacle controlled by a GFI
(ground fault interrupter) circuit breaker.
2. Make sure to place the power strip in a dry and
safe area away from the aquarium in order to
avoid moisture.
3. Place power strip in a secure and stable area
so that it cannot fall into the aquarium or sump.
4. Make sure all receptacles are protected from
water: splash, spilling and evaporation.

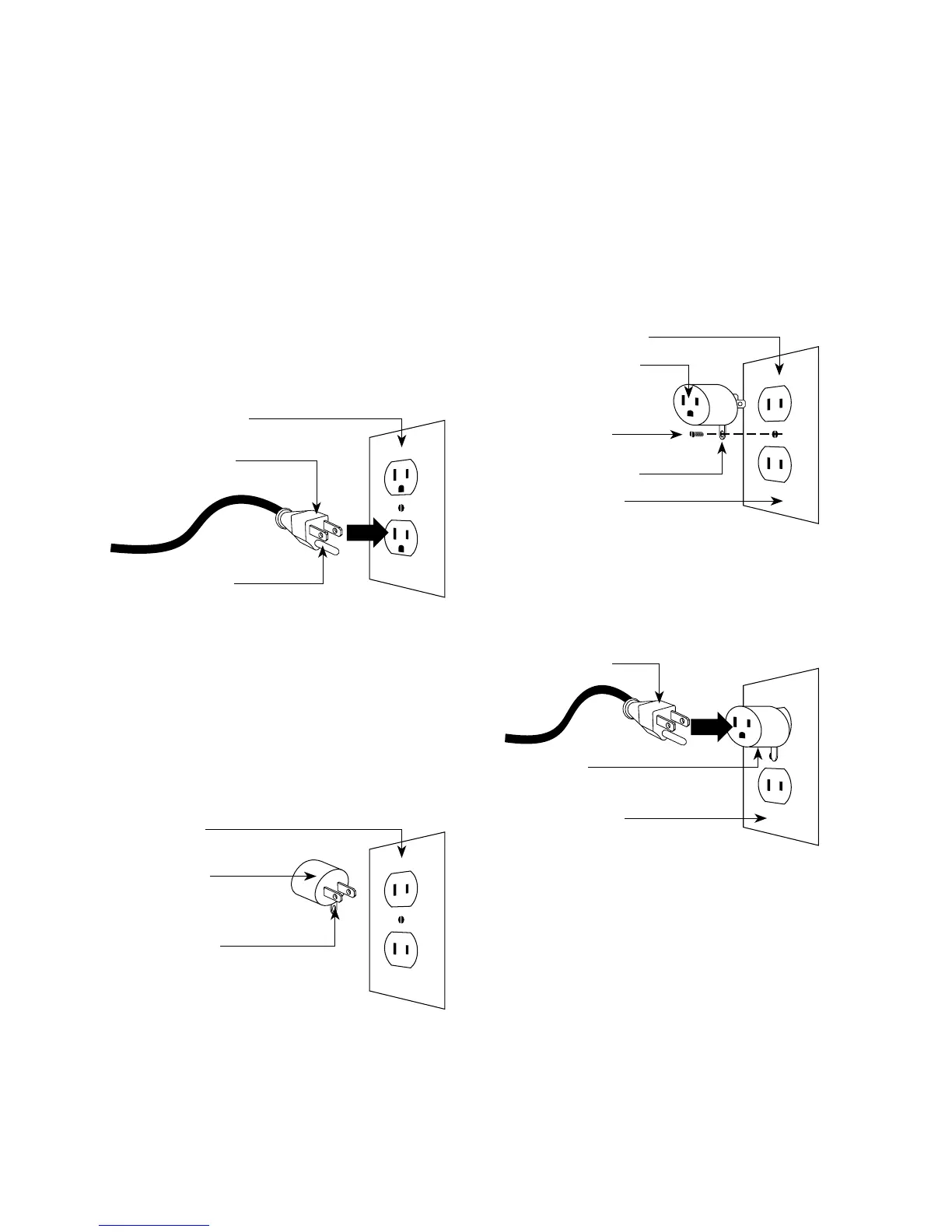

GROUNDING
FIGURE 4
FIGURE 5
FIGURE 6
TWO-POLE OUTLET
FIGURE 3
Grounded Outlet
Two-Pole
Receptacle
Two-Pole Receptacle
Temporary Adapter
Grounded Plug
Temporary
Adapter
Grounded Outlet
Box Cover
Grounded Outlet
Box Cover
Screw
Grounding Pin
Rigid Ear
(Grounding
Means)
Rigid Ear
(Grounding Means)
Temporary
Adapter
Grounded Plug
To Next Page
