Make sure that the fl at O-ring gasket is
properly positioned inside the threaded
cap (already installed in unit). Screw the
threaded cap tightly back into place.
3. Reassembly
➀ Adjust the tank bracket so that it hangs
on the outside of the aquarium.
➂ Snap the main body into the bracket indicated
by a “click”. Snap the other bracket with the
suction cup in the same way.
➃ For horizontal positioning, take the suction
cup out and snap the main body into the
brackets until it locks with a “click”.
➁ Slide the Turbo-Twist bracket onto the tank
bracket. Make sure the Turbo-Twist bracket is
securely fastened onto the tank bracket.

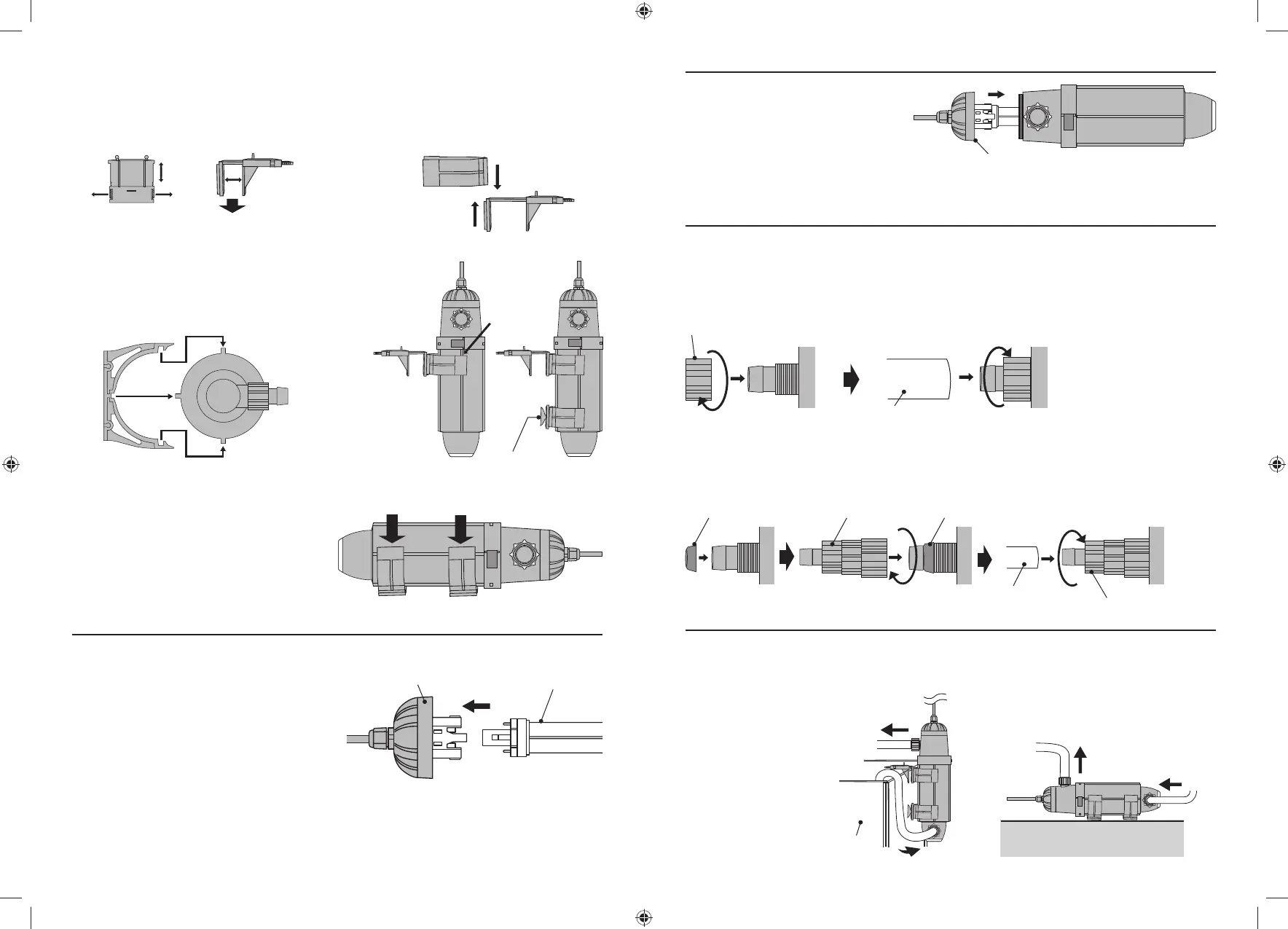

Bracket Installation
Hose barb adapter installation.
2. UVC Lamp installation
4. Attaching the hose lock nuts
5. Installing the Turbo-Twist
Remove threaded cap, install UVC
lamp into socket until lamp “clicks”
into place.
➀ Position the hose lock nuts on the
hose-barb inlet and outlet.
➀ Hang the unit using the
Turbo-Twist bracket and
suction cup on the outside
of the aquarium. Adjust the
tank bracket to secure the
Turbo-Twist UV Sterilizer.
Horizontal Positioning
➀ Attach Turbo-Twist bracket with screws on
a fi xed surface.
➀ Place the O-ring on
hose barb inlet/outlet.
➁ Hand tighten the hose
barb adapter onto the
Turbo-Twist.
➂ Use fl exible tubing to connect the sterilizer
to the water supply. Turn the hose lock nut
counter-clockwise to tighten fl exible tubing
onto the hose barb.
➁ Use fl exible tubing to connect the sterilizer to the water
supply. Turn the hose lock nut counter-clockwise to tighten
fl exible tubing onto the hose barb. Hose lock nuts require
only hand tightening.
Note: The plug and cord should be turned
together when screwing the threaded cap
back into place.
Note: Do not use
O-ring when larger
hose barbs are
being used.
Note: Water will leak if the O-ring is not in place.
RANGE OF THE CLAMP
PLACE ON
AQUARIUM
TURBO-TWIST
BRACKET
SNAP-IN
SUCTION CUP
HOSE LOCK NUT
O-RING O-RINGHOSE BARB ADAPTER
SMALL HOSE LOCK NUT
FLEXIBLE
TUBING
TANK
BRACKET
PULL-OUT PULL-OUT
SNAP-IN SNAP-IN
SNAP-IN
THREADED CAP
UVC LAMP
AQUARIUM
FLEXIBLE
TUBING
O-RING GASKET
3 4
