Corally RADIX XP 6S - Basic Car Settings; Front Suspension Geometry; Rear Camber Adjustment

-1° -1°
-1°
0mm
0mm
28°
90°
-1°
+ +
- -
-2°
-2°
+
+
-
-
1mm
1mm
OR
Possible setting with the options :
C-00180-130 Turnbuckle - M5 - 50mm
C-00180-041 Rear Camber Ball Cups -
Outer - Inner
Possible setting with the optional parts :
C-00180-039 Steering Ball Cups - Composite
C-00180-128 Turnbuckle - M4 - 50mm
8

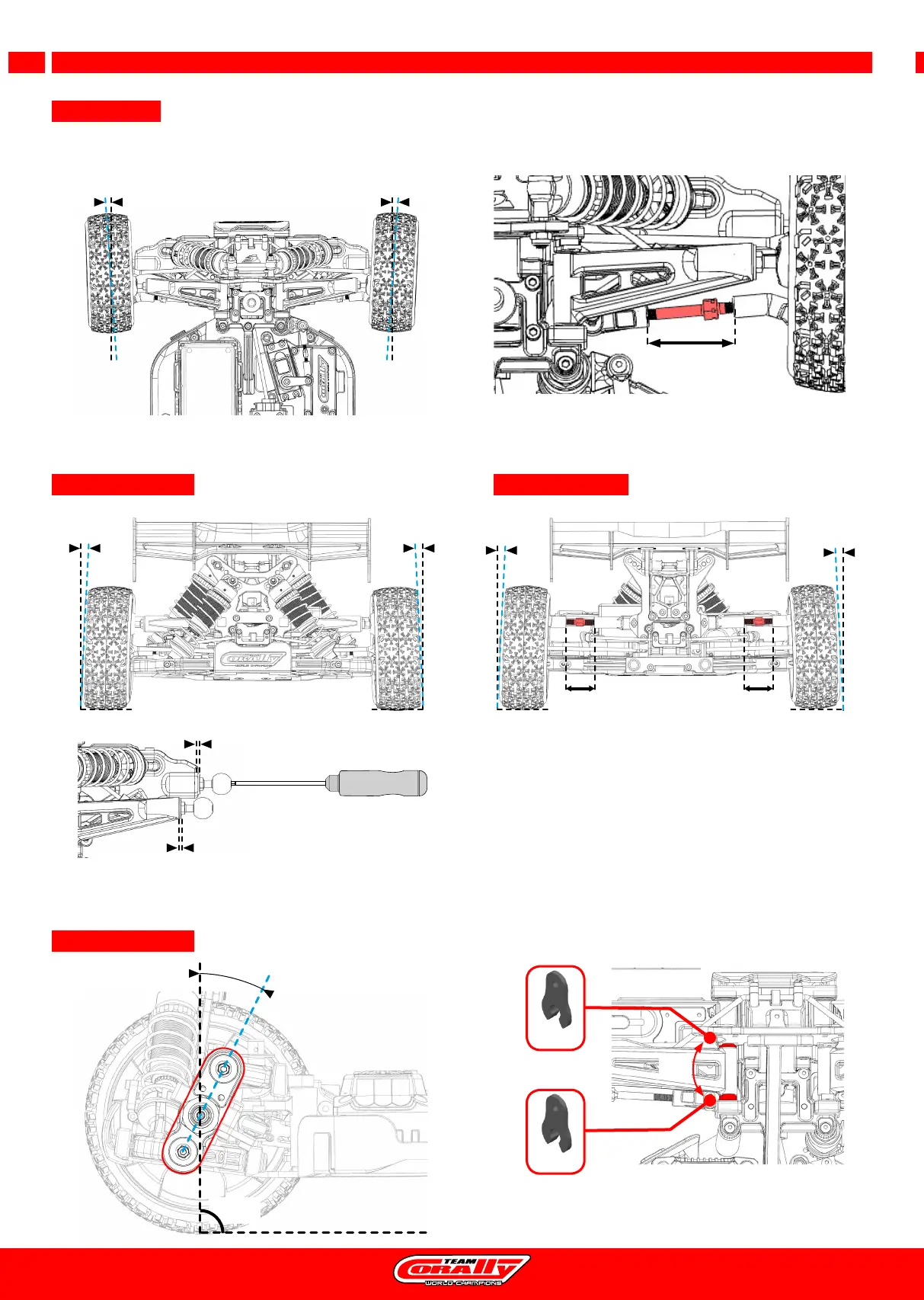

BASIC CAR SETTINGS
FRONT TOE
FRONT CAMBER
FRONT CASTER
REAR CAMBER
Adjust the angle by screwing the TURNBUCKLE.
TOE-OUT TOE-OUT
Adjust the angle by screwing the TURNBUCKLE.
Adjust the angle by screwing
the PIVOT BALL.
31mm
23.5mm 23.5mm
To change the Caster Angle, move the Upper Suspension Arm
forward or backward using the 1mm CASTER CLIP size.
