3.2 Pipelines Connection

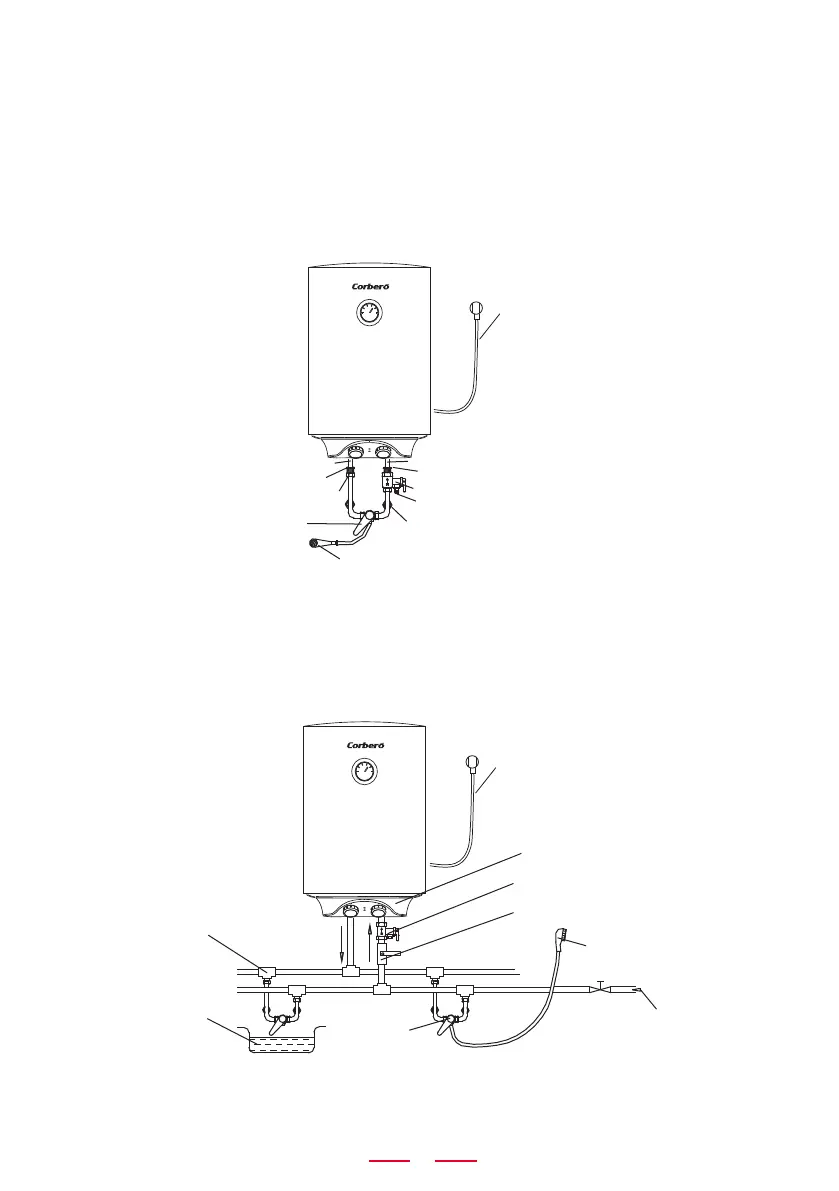

If the users want to realize a multi-way supply system, refer to the method shown in fig.5
and fig.6 for connection of the pipelines.
④
②
③
Connection of pressure relief valve with the heater on the inlet of the water heater.
In order to avoid leakage when connecting the pipelines, the rubber seal gaskets provided with
the heater must be added at the end of the threads to ensure leak proof joints (see Fig.4).
(Fig.4)
(Fig.5)
Pressure relief valve
Water inlet valve
Water inlet valve
Running water pipe
Mixing valve
Water pool
Triple joint
Shower nozzle
Hot water outlet
Cold water inlet
Pressure relief valve
Pressure release hole
Joint screw for cold water inlet
Adjusting handle for
mixing valve
Hot
water
outlet
Cold
water
inlet
Rubber seal gaskets
Rubber seal gaskets
Screw for hot water outlet
Shower nozzle
Power cord
Main machine
Power cord
①
The dimension of each pipe part is G1/2” ; The massive pressure of inlet should use Pa as
the unit; The minimum pressure of inlet should use Pa as the unit.
6
