SECTION 02
INSTALLATION (WITH RESERVED WIRE)
Follow ‘WALL MOUNTED’
instructions numbers 1 to 6.
To remove the cover, first
remove the hand piece
and unscrew the 4
screws from the cover.
Drill a hole where the
cable needs to enter the
cable entry point.
Pull the reserved wire
through the entry hole
and connect to the
terminal.
Ensure there is enough
cable to allow the base
unit to be un-hooked
and unclipped from the
rear should access to the
connections be required
in the future.
1.
2.
5.3.
6.
4.

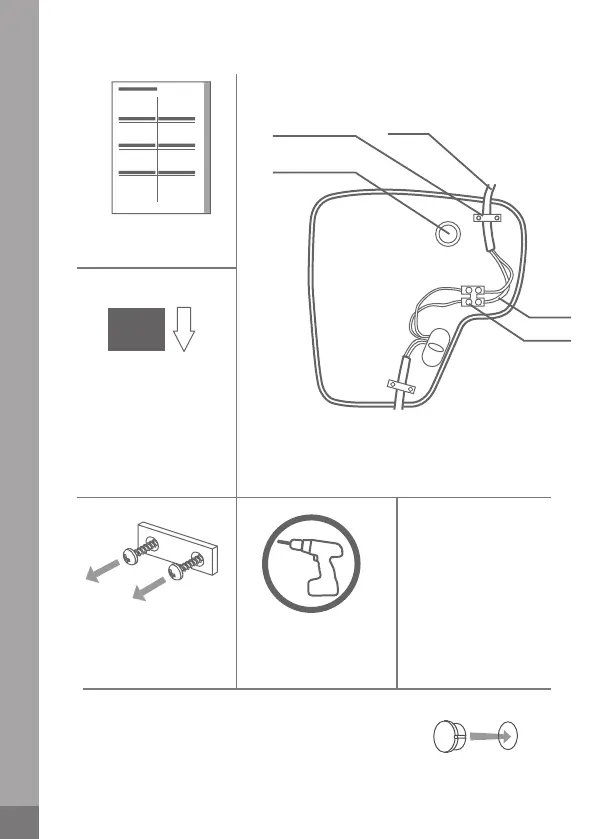

Back of hair dryer holder
Screw the front cover back into place and cover the
screw hole with the screw cover.
OFF
O
N
Cable clamp
Entry point
Existing
cable
Terminal
Reserved wire
Unscrew the cable clamp.
