Cornell SGH Series - INSTALLATION POSITIONS (for 1 hp, 1-1;2 hp, 2 hp)


4
SGH Series
REVISION # 0002
DATE: 10/09/2012

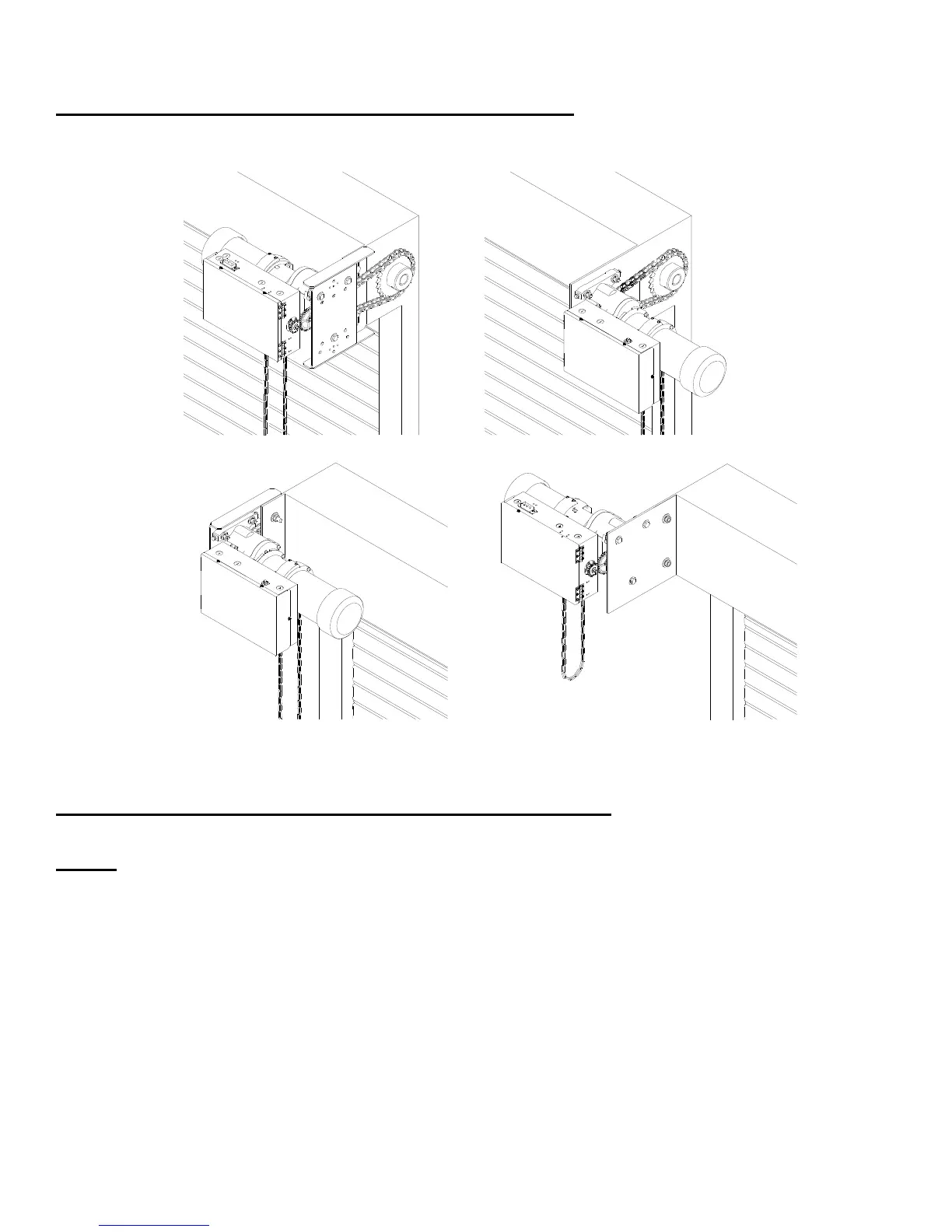

INSTALLATION POSITIONS (for 1hp, 1-1/2hp, 2hp)

RS
LS
RA
LA
Consult factory for changes in installation positions.
NOTE: Any change in mounting position may result in a change of operator rotation and
consequently in a change of control functions. Consult factory for any changes. (LH=LS and RA,
RH=RS and LA)
Operators mounted in alternate positions (LA, RA) require a straight mounting plate in lieu of
the standard bent plate.
