CTBMM100BR, -BK, -BL, -NY, -RG, -RD 4 Rev. 7/21/15
Item # Part # Description QTY.
1a
*
M8x22 Bolt 32
1b
*
M8x28 Bolt 4
2
*
M8 Washer 72
3
*
M8 Locking Nut 56
4
*
M8x22 Bolt 4
5 RSMM100HB Handle Brackets/Pair 1
6 RSMM100HDL Handle 1
7 RSMM100LG-BR (burgundy) Leg/each 4
RSMM100LG-BK (black)
RSMM100LG-BL (blue)
RSMM100LG-NY (yellow)
RSMM100LG-RG (orange)
RSMM100LG-RD (red)
8 RSMM100SRP-BR (burgundy) Screwdriver/Prybar Holder/each 2
RSMM100SRP-BK (black)
RSMM100SRP-BL (blue)
RSMM100SRP-NY (yellow)
RSMM100SRP-RG (orange)
RSMM100SRP-RD (red)
9
*
M8x19 Bolt (for casters) 16
10 RSSWCS 5" Swivel Caster (non-locking)/each 2
11 RSMM100RP-BR (burgundy) Reinforced Piece /each 2
RSMM100RP-BK (black)
RSMM100RP-BL (blue)
RSMM100RP-NY (yellow)
RSMM100RP-RG (orange)
RSMM100RP-RD (red)
12 RSSWLCS 5" Swivel Caster with lock/each 2
13a RSMM100DH Drawer Handle/each 2
13b RSMM100SDH Short Drawer Handle/each 2
14 RSMM100BP Set of 4 Bumpers 1
15
*
Screw for Drawer Handles 12
16 RSLKN Lock with Keys
17 RSGP Gas Piston /each
RSRBS Roller Bearing Slides/pair
19 RSMM100SCD-BR (burgundy) Spray Can Divider 1
RSMM100SCD-BK (black)
RSMM100SCD-BL (blue)
RSMM100SCD-Y (yellow)
RSMM100SCD-RG (orange)
RSMM100SCD-RD (red)
20 CTB100MMLDBRL (burgundy) 3-1/4" Half Drawer Left 1
CTB100MMLDBKL (black)
CTB100MMLDBLL (blue)
CTB100MMLDNYL (yellow)
CTB100MMLDRGL (orange)
CTB100MMLDRDL (red)
20a CTB100MMLDBRR (burgundy) 3-1/4" Half Drawer Right 1
CTB100MMLDBKR (black)
CTB100MMLDBLR (blue)
CTB100MMLDNYR (yellow)
CTB100MMLDRGR (orange)
CTB100MMLDRDR (red)
21 CTB100MMLD2BR (burgundy) 3-1/4" Drawer 1
CTB100MMLD2BK (black)
CTB100MMLD2BL (blue)
CTB100MMLD2NY (yellow)
CTB100MMLD2RG (orange)
CTB100MMLD2RD (red)
22 CTB100MMLD3BR (burgundy) 5-1/4" Drawer 1
CTB100MMLD3BK (black)
CTB100MMLD3BL (blue)
CTB100MMLD3NY (yellow)
CTB100MMLD3RG (orange)
CTB100MMLD3RD (red)
Item # Part # Description QTY.
23 CTB100MMSBR (burgundy) Bottom Shelf 1
CTB100MMSBK (black)
CTB100MMSBL (blue)
CTB100MMSNY (yellow)
CTB100MMSRG (orange)
CTB100MMSRD (red)

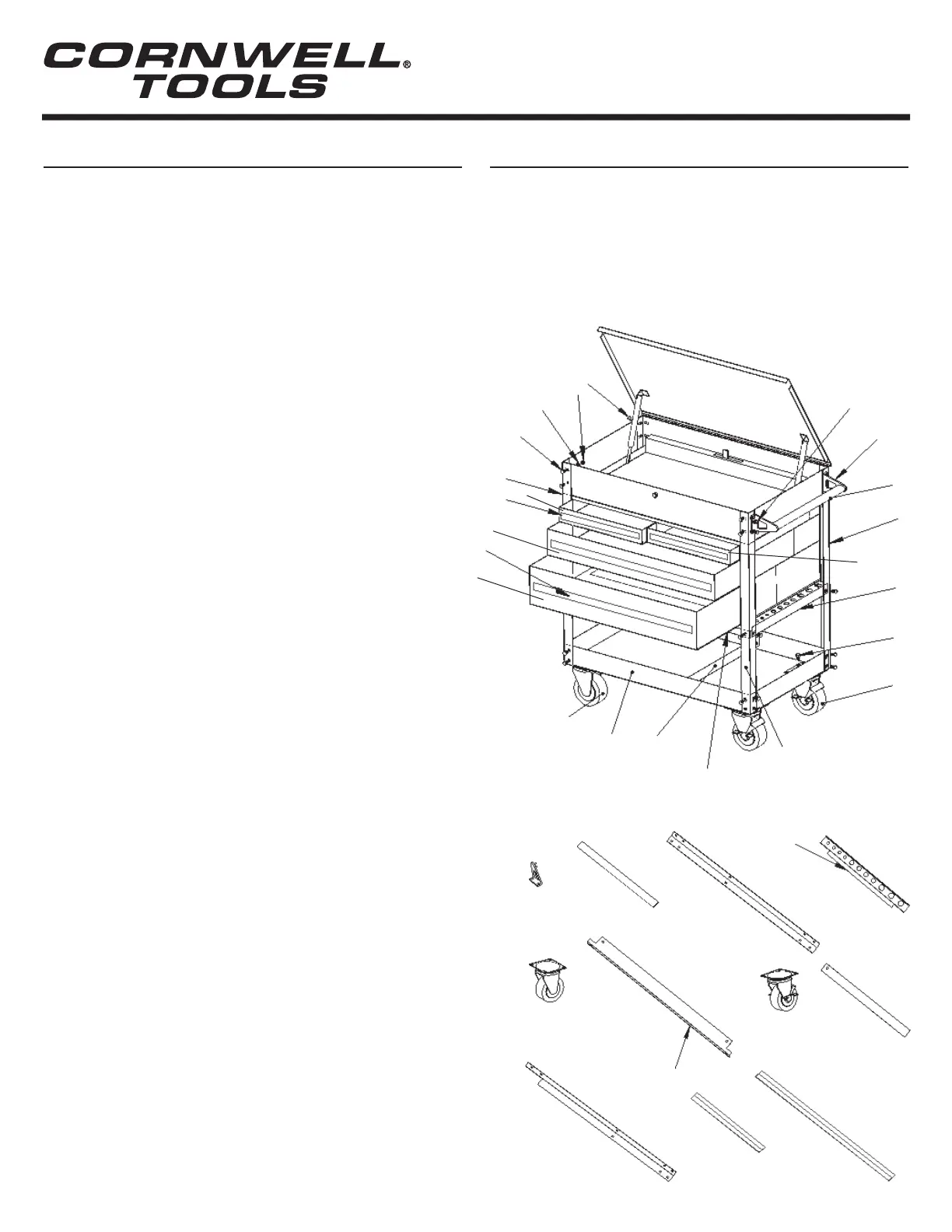

PART DRAWINGS
5
Push Handle
Bracket
6
Push Handle
7
Legs (4)
8
Pry Bar
Holder (2)
14
Bumper (4)
2 with logo, 2 without
10
Non-Locking
Caster (2)
11
Front & Back
Bracket
12
Locking Swivel
Caster (2)
Narrow Side
Small Lip
13b
Short Drawer
Handle (2)
13a
Drawer
Handle (2)
19
Paint Can
Holder Divider
23
2
1a
14
13a
13b
10
19
12
9
8
7
6
5
1b
3
4
Front Right Bumper
21
22
20
20a
11
PARTS lIST
*
Available in RSMM100BK Bolt Kit.
Also available: RSSCPK Service Cart Polishing Kit, RSDET8PK Ball Bearing Slide Detents (Pk of 8)
CTBMM100BR, Bk, Bl, Ny, RG, RD
Pro Series Service Cart
