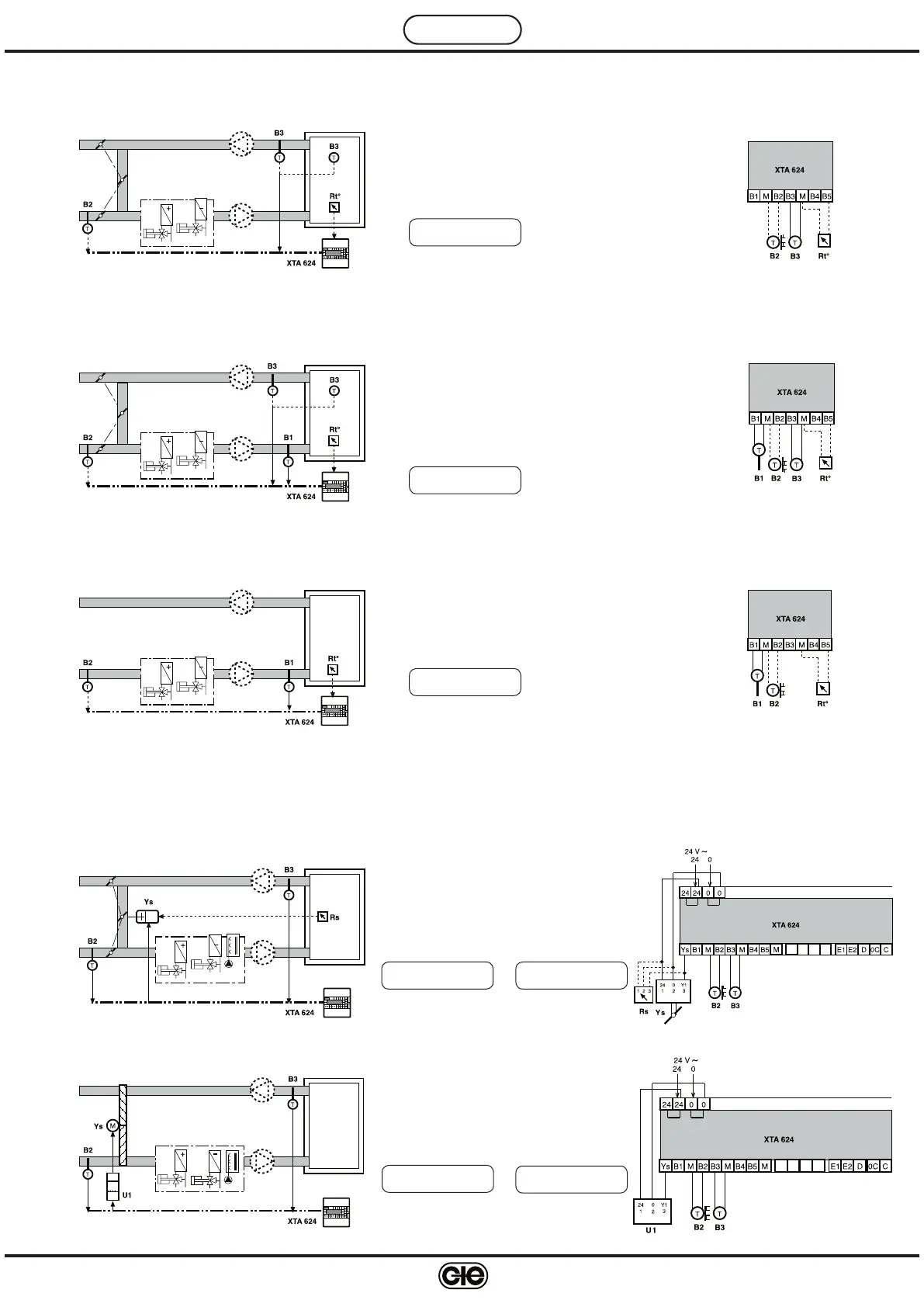

11. TEMPERATURE CONTROL – EXAMPLES
11.1 Room temperature control
B2 – Outside temp. detector (for compensation only)
B3 – Room or extract temperature detector
Rt° – Temperature set point adjuster (optional)
B1 – Flow temperature detector
B2 – Outside temperature detector (for compensation only)
B3 – Room or extract temperature detector
Rt° – Temperature set point adjuster (optional)
B1 – Flow temp. detector
B2 – Outside temperature detector (for compensation only)
Rt° – Temperature set point adjuster (optional)
11.2 Room temperature control with flow temperature limits
11.3 Flow temperature control
D e t e c t o r s L a y o u t
–
2 3 – 5
M2.1
D e t e c t o r s L a y o u t
1
2 3 – 5
M2.1
D e t e c t o r s L a y o u t
1
2 – – 5
M2.1
12. USE OF YS OUTPUT– EXAMPLES
12.1 Temperature comparison air damper optimization
12.
2 Heat recuperator On-Off control
B2 – Outside temperature detector
B3 – Room or extract temperature detector
Ys – Progressive air damper control
Rs – Outside air min. distance positioner (optional)
B2 – Outside temp. detector
B3 – Room or extract temperature detector
Ys – Recuperator
U1 – 0...10 V– into On-Off signal converter
D e t e c t o r s L a y o u t
– 2 3 – – – – –
M2.1
Y s - C o n t r o l :
D A M P . T E M P E R A T U R E
M2.7
D e t e c t o r s L a y o u t
– 2 3 – – – – –
M2.1
Y s - C o n t r o l :
R E C U P E R A T O R
M2.7
