11: Disassembly of the massage mechanism PCB.

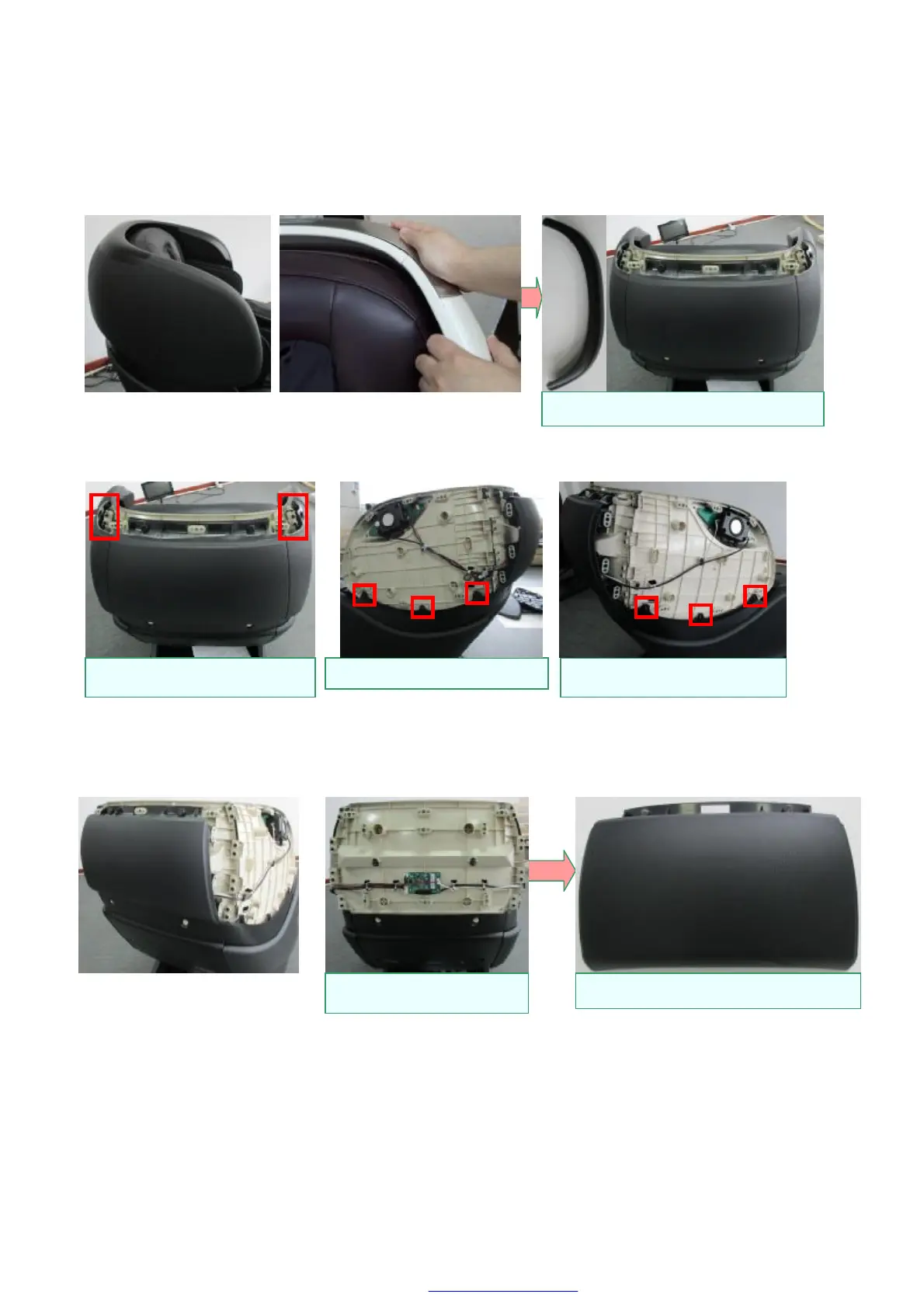

A: Hold the speaker unit with one hand, and push the decoration strip with another hand until it come out a little
bit. Use the same way to make the other side of the decoration come out a little bit. Then the decoration strip can
be taken away. The decoration strap is fixed by three snap joints.
B: After the decoration strip been taken away there is a gap on the speaker unit. Pull side cover of the speaker unit
at the gap to detach it. And then remove the screws fixing the decoration trip.
C: After take away both side covers of speaker unit. Then pull the rear cover with both hands. Then the rear cover
can be taken away. And then you can find the Bluetooth PCB. Rear cover of speaker unit is fixed by six snap
joints.
D: Locate the wire connector on the left side of speaker unit. Disconnect the wire connector and push this connector
back.
Decoration strap has been taken off.
Detach the side covers at these two gaps. Locate the screws fixing decoration strip. Locate the screws fixing decoration strip.
Locate the Bluetooth PCB. Rear cover has been taken off.
