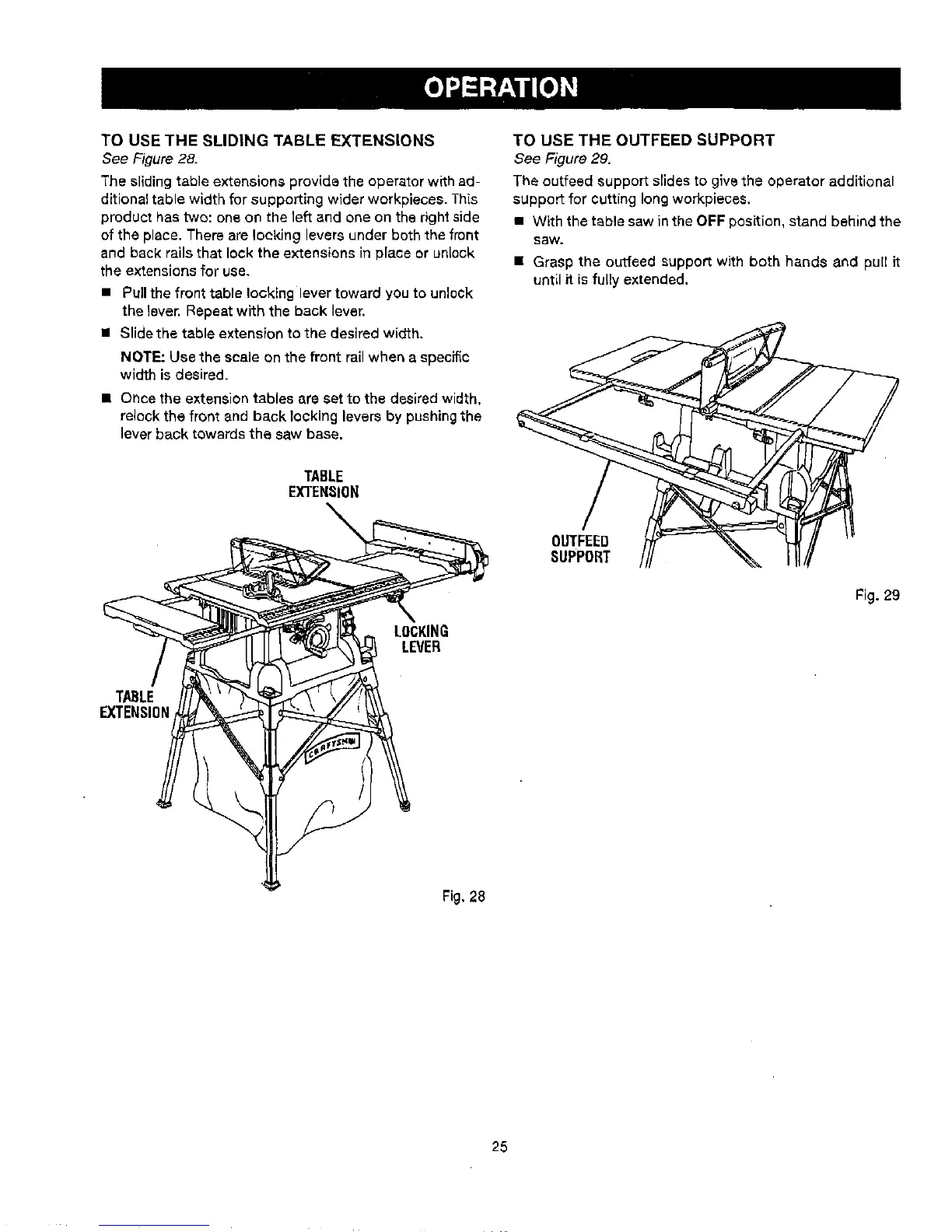

TO USE THE SLIDING TABLE EXTENSIONS
See Figure 28.
The sliding table extensions provide the operator with ad-
ditional table width for supporting wider workpieces. This
producthas two: one on the left and one on the right side
of the place. There are locking levers under both the front
and back rails that lock the extensions in place or unlock
the extensions for use.
• Pullthe front table locking lever toward you to unlock
the lever. Repeat with the back lever.
=l Slide the table extension to the desired width.
NOTE: Use the scale on the front rail when a specific
width is desired.
• Once the extension tables are set to the desired width.
relock the front and back locking levers by pushing the
lever back towards the saw base.
TABLE
EXTENSION
LOCKING
LEVER
TO USE THE OUTFEED SUPPORT
See Figure 29.
The outfeed Support slides to give the operator additional
support for cutting long workpieces.
• With the table saw in the OFF position, stand behind the
saw.
• Grasp the outfesd support with both hands and pull it
until it isfully extended.
OUTFEEO
SUPPORT
Fig. 29
TABLE
EXTENSION
Fig, 28
25
