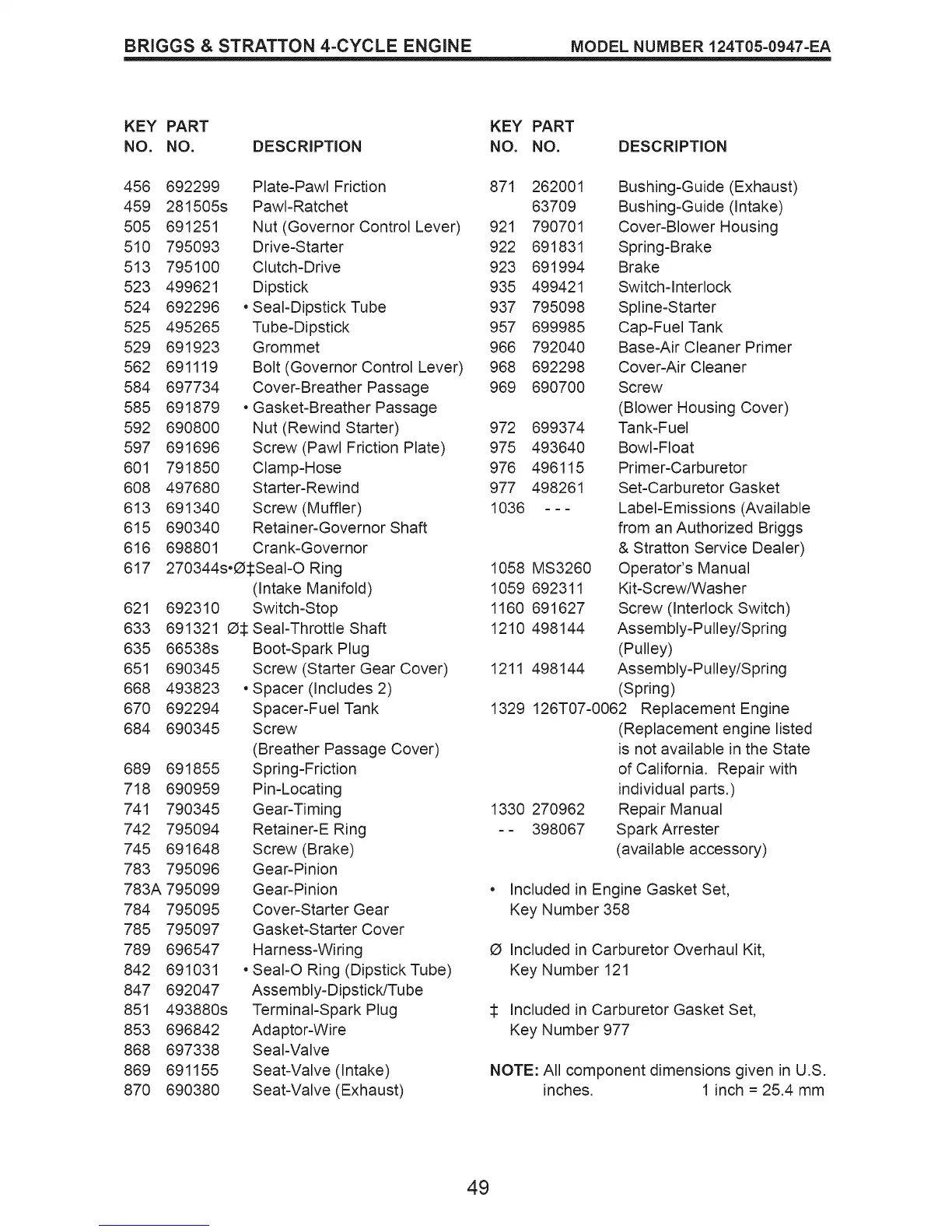

BRIGGS & STRATTON 4-CYCLE ENGINE MODEL NUMBER 124T05=0947=EA
KEY PART KEY PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION
456 692299 Plate-Pawl Friction 871 262001 Bushing-Guide (Exhaust)
459 281505s PawI-Ratchet 63709 Bushing-Guide (intake)
505 691251 Nut (Governor Control Lever) 921 790701 Cover-Blower Housing
510 795093 Drive-Starter 922 691831 Spring-Brake
513 795100 Clutch-Drive 923 691994 Brake
523 499621 Dipstick 935 499421 Switch-interlock
524 692296 * Seal-Dipstick Tube 937 795098 Spline-Starter
525 495265 Tube-Dipstick 957 699985 Cap-Fuel Tank
529 691923 Grommet 966 792040 Base-Air Cleaner Primer
562 691119 Bolt (Governor Control Lever) 968 692298 Cover-Air Cleaner
584 697734 Cover-Breather Passage 969 690700 Screw
585 691879 • Gasket-Breather Passage (Blower Housing Cover)
592 690800 Nut (Rewind Starter) 972 699374 Tank-Fuel
597 691696 Screw (Pawl Friction Plate) 975 493640 Bowl-Float
601 791850 Clamp-Hose 976 496115 Primer-Carburetor
608 497680 Starter-Rewind 977 498261 Set-Carburetor Gasket
613 691340 Screw (Muffler) 1036 --- Label-Emissions (Available
615 690340 Retainer-Governor Shaft from an Authorized Briggs
616 698801 Crank-Governor & Stratton Service Dealer)
617 270344s,O_SeaI-O Ring 1058 MS3260 Operator's Manual
(Intake Manifold) 1059 692311 Kit-Screw/Washer
621 692310 Switch-Stop 1160 691627 Screw (Interlock Switch)
633 691321 O$ Seal-Throttle Shaft 1210 498144 Assembly-Pulley/Spring
635 66538s Boot-Spark Plug (Pulley)
651 690345 Screw (Starter Gear Cover) 1211 498144 Assembly-Pulley/Spring
668 493823 * Spacer (Includes 2) (Spring)
670 692294 Spacer-Fuel Tank 1329 126T07-0062 Replacement Engine
684 690345 Screw (Replacement engine listed
(Breather Passage Cover) is not available in the State
689 691855 Spring-Friction of California. Repair with
718 690959 Pin-Locating individual parts.)
741 790345 Gear-Timing 1330 270962 Repair Manual
742 795094 Retainer-E Ring -- 398067 SparkArrester
745 691648 Screw (Brake) (available accessory)
783 795096 Gear-Pinion
783A 795099 Gear-Pinion • Included in Engine Gasket Set,
784 795095 Cover-Starter Gear Key Number 358
785 795097 Gasket-Starter Cover
789 696547 Harness-Wiring O Included in Carburetor Overhaul Kit,
842 691031 • SeaI-O Ring (Dipstick Tube) Key Number 121
847 692047 Assembly-Dipstick/Tube
851 493880s Terminal-Spark Plug $ Included in Carburetor Gasket Set,
853 696842 Adaptor-Wire Key Number 977
868 697338 Seal-Valve
869 691155 Seat-Valve (Intake) NOTE: All component dimensions given in U.S.
870 690380 Seat-Valve (Exhaust) inches. 1 inch = 25.4 mm
49
