Craftsman 390.2521 - Pump Parts List

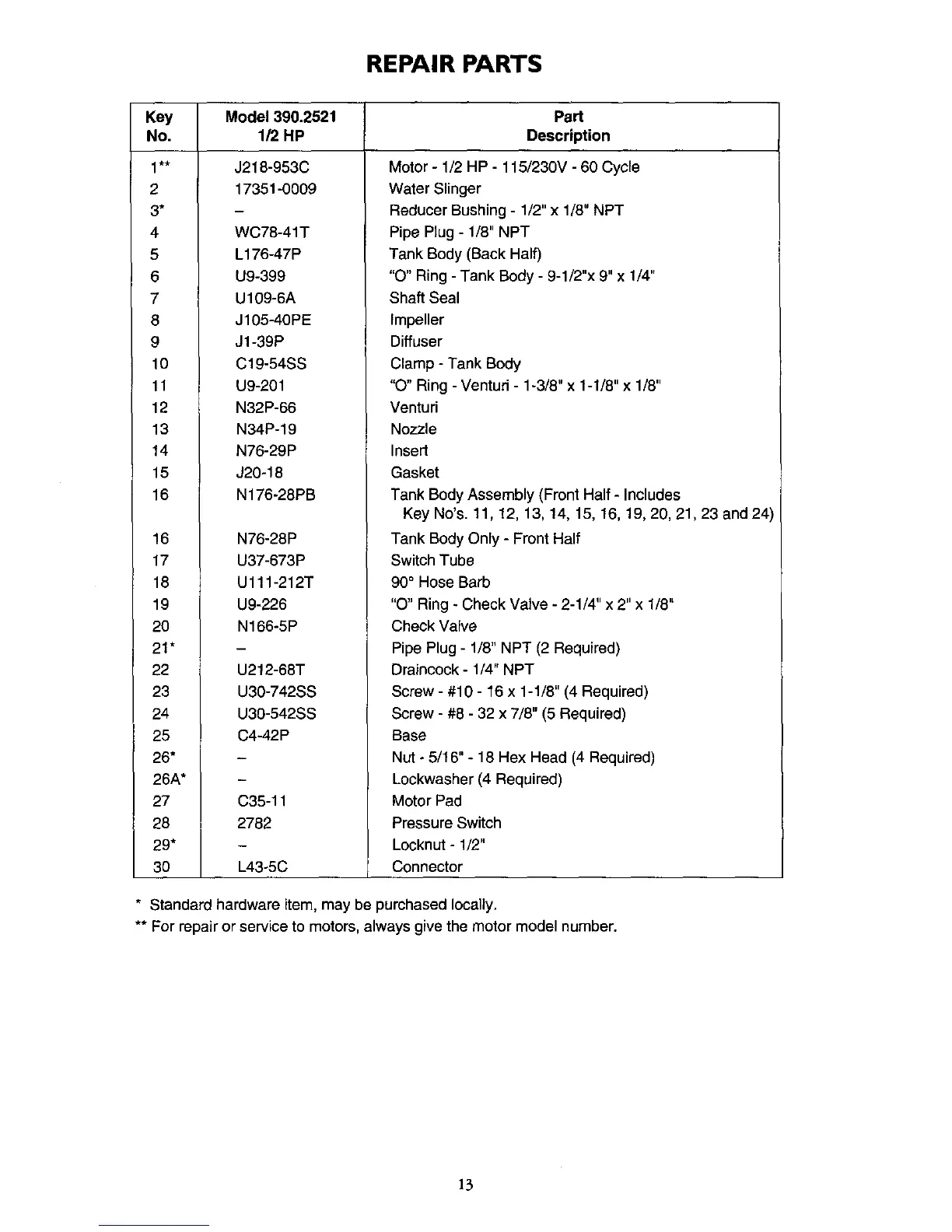

REPAIR PARTS
Key Model 390.2521 Part
No. 1/2 HP Description
1_-_ -
2
3*
4
5
6
7
8
9
10
11
12
13
14
15
16
16
17
18
19
20
21"
22
23
24
25
26*
26A*
27
28
29*
30
J218-953C
17351 -OOO9
WC78-41T
L176-47P
U9-399
U109-6A
J105-4OPE
J1-39P
C19-54SS
U9-201
N32P-66
N34P-19
N76-29P
J20-18
N176-28PB
N76-28P
U37-673P
U111-212T
U9-226
N166-5P
U212-68T
U30-742SS
U30-542SS
C4-42P
h
b
C35-11
2782
L43-5C
Motor - 1/2 HP - 115/230V - 60 Cycle
Water Slinger
Reducer Bushing - 1/2" x 1/8" NPT
Pipe Plug - 1/8" NPT
Tank Body (Back Half)
"O" Ring - Tank Body - 9-1/2"x 9" x 1/4"
Shaft Seal
Impeller
Diffuser
Clamp - Tank Body
"O" Ring - Venturi - 1-3/8" x 1-1/8" x 1/8"
Venturi
Nozzle
Insert
Gasket
Tank Body Assembly (Front Half - Includes
Key No's. 11, 12, 13, 14, 15, 16, 19, 20, 21,23 and 24)
Tank Body Only - Front Half
Switch Tube
90 ° Hose Barb
"O" Ring - Check Valve - 2-1/4" x 2" x 1/8"
Check Valve
Pipe Plug - 1/8" NPT (2 Required)
Draincock- 1/4" NPT
Screw - #10 - 16 x 1-1/8" (4 Required)
Screw - #8 - 32 x 7/8" (5 Required)
Base
Nut * 5/16"- 18 Hex Head (4 Required)
Lockwasher (4 Required)
Motor Pad
Pressure Switch
Locknut - 1/2"
Connector
* Standard hardware item, may be purchased locally.
** For repair or service to motors, always give the motor model number.
