Craftsman 580.768310 - Carburetor Exploded View and Parts List

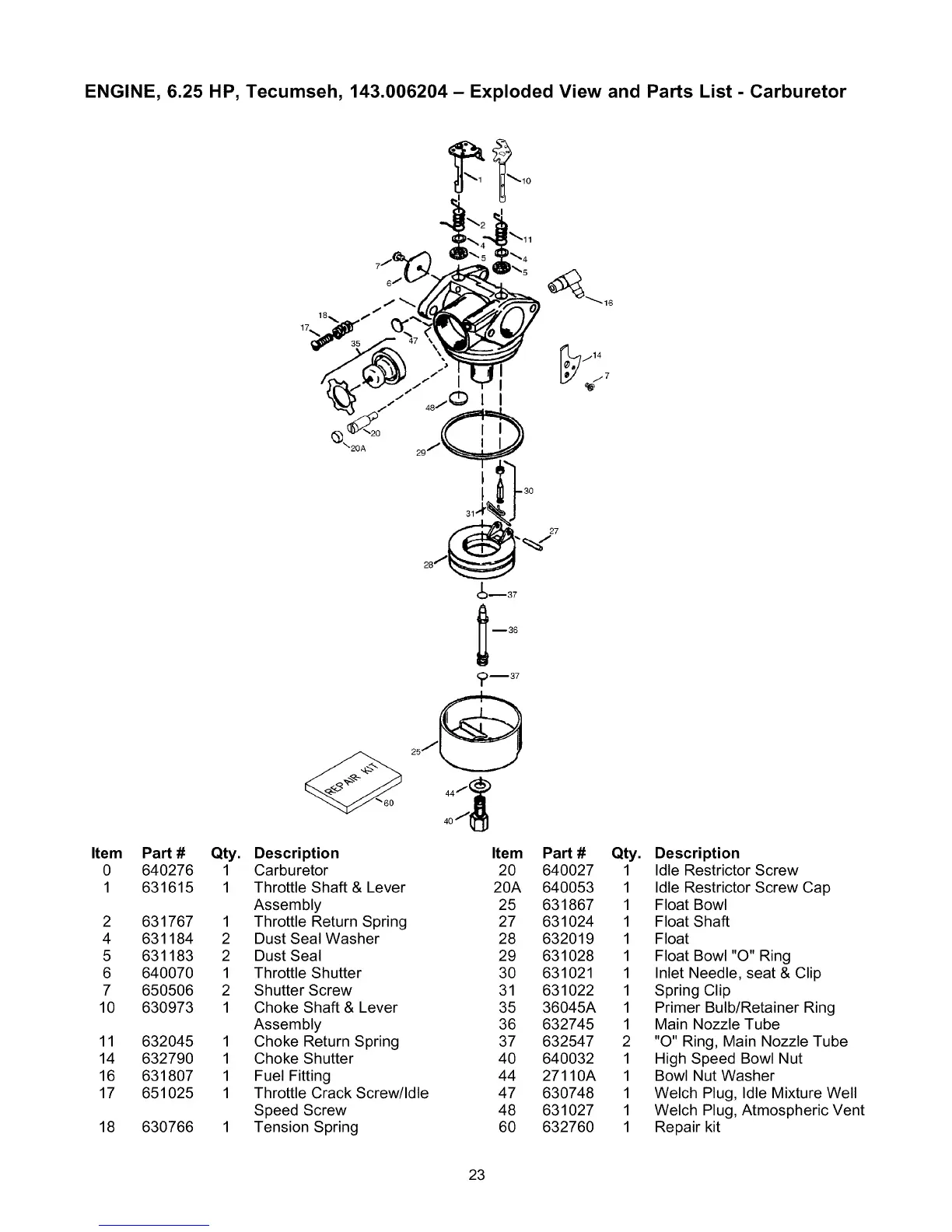

ENGINE, 6.25 HP, Tecumseh, 143.006204 - Exploded View and Parts List - Carburetor
Item
0
1
2
4
5
6
7
10
11
14
16
17
18
Pan # Qty.
640276 1
631615 1
631767 1
631184 2
631183 2
640070 1
650506 2
630973 1
632045 1
632790 1
631807 1
651025 1
630766 1
f
(_\20A
60
Description
Carburetor
Throttle Shaft & Lever
Assembly
Throttle Return Spring
Dust Seal Washer
Dust Seal
Throttle Shutter
Shutter Screw
Choke Shaft & Lever
Assembly
Choke Return Spring
Choke Shutter
Fuel Fitting
Throttle Crack Screw/Idle
Speed Screw
Tension Spring
Item
20
20A
25
27
28
29
30
31
35
36
37
40
44
47
48
60
/14
j7
Pan # Qty.
640027 1
640053 1
631867 1
631024 1
632019 1
631028 1
631021 1
631022 1
36045A 1
632745 1
632547 2
640032 1
27110A 1
630748 1
631027 1
632760 1
Description
Idle Restrictor Screw
Idle Restrictor Screw Cap
Float Bowl
Float Shaft
Float
Float Bowl "O" Ring
Inlet Needle, seat & Clip
Spring Clip
Primer Bulb/Retainer Ring
Main Nozzle Tube
"O" Ring, Main Nozzle Tube
High Speed Bowl Nut
Bowl Nut Washer
Welch Plug, Idle Mixture Well
Welch Plug, Atmospheric Vent
Repair kit
