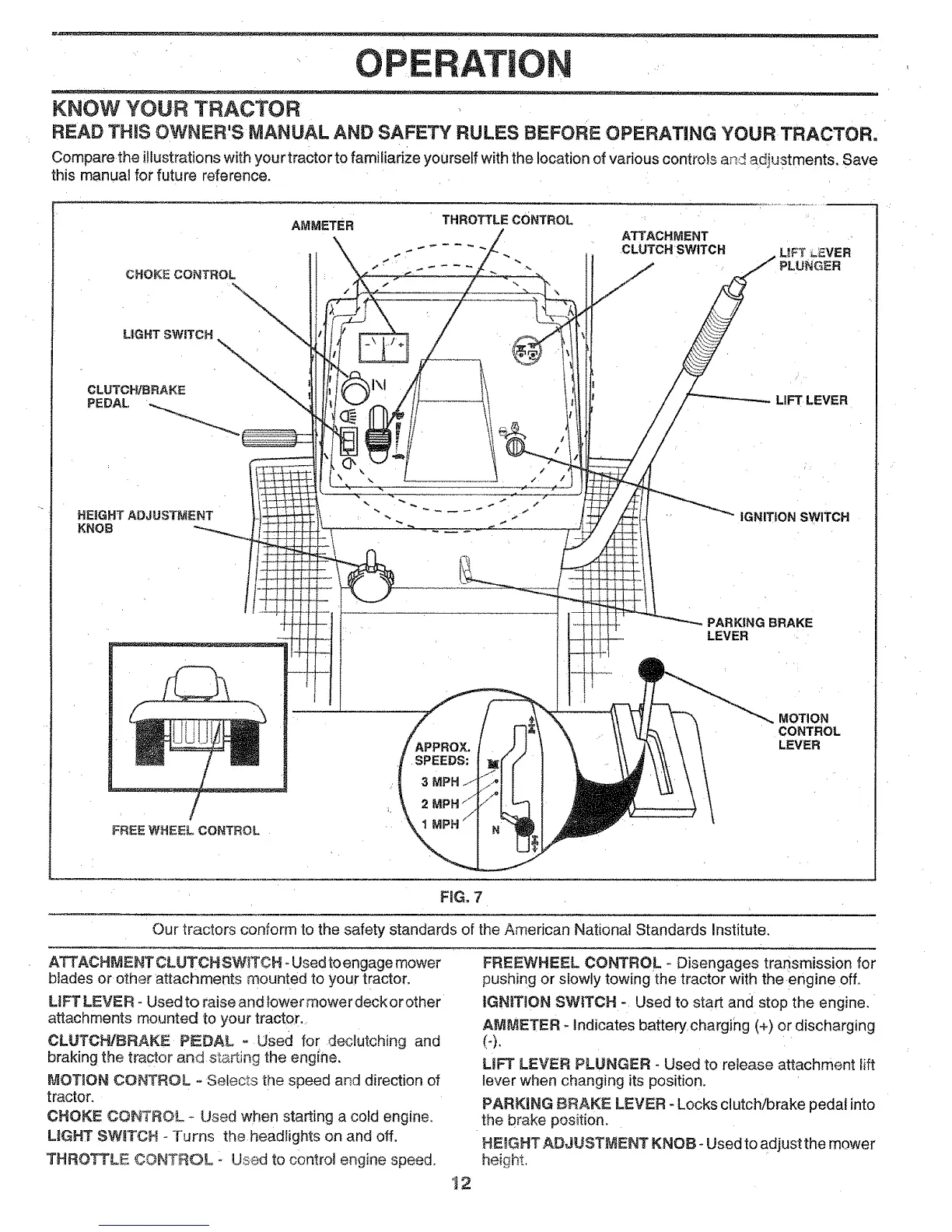

O ERATION
KNOW YOUR TRACTOR
READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TRACTOR.
Compare the illustrationswith your tractor to familiarize yourself with the location of various controis a_d ad ustments, Save
this manual for future reference.
AMMETER
CHOKE CONTROL
LIGHT SWITCH \_
CLUTCH/BRAKE
PEDAL
THROTTLE CONTROL
ATTACHMENT
CLUTCH SWtTCH
UFT LEVER
PLUNGER
LIFT LEVER
iGNITION swITCH
PARKING BRAKE
LEVER
APPROX.
SPEEDS:
3MPH
MOTION
CONTROL
LEVER
FIG. 7
Our tractors conform to the safety standards of the American National Standards Institute,
ATTACHMENT CLUTCH SWITCH- Used to engage mower
bJades or other attachments mounted to your tractor,
LiFT LEVER - Used to raise and lower mower deck or other
attachments mounted to your tractor,
CLUTCH/BRAKE PEDAL - Used for dec utch ng and
braking the tractor and sta_ling the engine,
MOTION CONTROL -Selects the speed and direction of
tractor.
CHOKE CONTROL - Used when starting a cold engine,
LIGHT SWATCH - Turns the headlights on and off,
THROTTLE CONTROL o Used to control engine speed.
12
FREEWHEEL CONTROL - Disengages transmission for
pushing or slowly towing the tractor with the engine off.
iGNITiON SW_TCH - Used to start and stop the engine,
AMMETER - Indicates batterychargihg (+) or discharging
(-),
LiFT LEVER PLUNGER - Used to release attachment lift
lever when changing its position.
PARKING BRAKE LEVER - Locks clutch/brake pedal into
the brake position.
HEmGHTADJUST_JENT KNOB- Used to adjust the mower
height,
