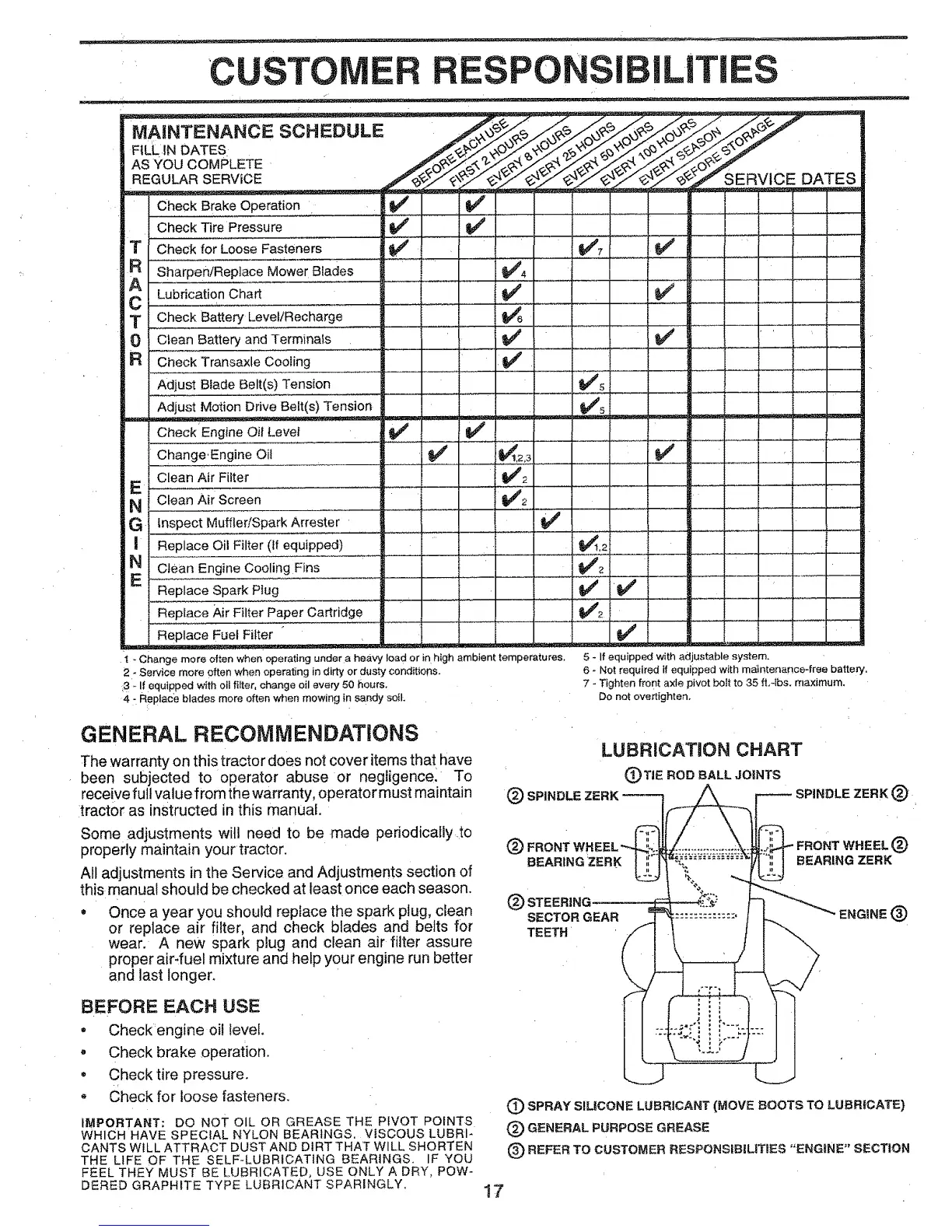

CUSTOIVlER O LiTIES
MAINTENANCE SCHEDULE
FtLL IN DATES
AS YOU COMPLETE
REGULARSERVICE
Check BrakeOperation -If 1
Check Tire Pressure
Check for Loose Fasteners
Sharpen!ReplaceMowerBlades
Lubrication Chart
Check Battery Level/Recharge
:Clean Battery and.Terminals
Check TransaxleCooting
Adjust Blade Belt(s) Tension
Adjust Motion Drive Beit(s) Tension
SERVICE DATES
I
t
I
Check Engine Oit Lever
Change,Engine Oil
Clean Air Filter
Clean Air Screen
Lnspect Muffler/Spark Arrester '
Replace Oil Filter (If equipped)
Clean Engine Cooling Fins
V'2
V'2
V'
V'2
V'
V'
I
v' I i :I
5 - If equipped with adjustable system.
6 - Not required if equipped with maintenance-free batteq/,
7 =Tighten front axle pivot bott to 35 ft,4bs, maximum.
Do not eve,tighten.
Replace Spark Plug
Replace Air Filter Paper Cartridge
RepiaceFuel Filter ...... ! 1 .........t I
t - Change more often when operating under a heavy Ioad or in high ambient temperatures,
2 - Service more often when operat ng n dirty or dusty conditions.
;3_ If equipped with oil filter, change oil every 50 hours.
4 - Replace blades more often when mowing in sandy soil.
GENERAL RECOMMENDATIONS
The warranty on this tractor does not cover items that have
been subjected to operator abuse or negligence. To
receive full value from the warranty, operator must maintain
tractor as instructed inthis manual.
Some adjustments will need to be made periodically to
properly maintain your tractor.
All adjustments in the Sewice and Adjustments section of
this manual should be checked at least once each season.
Once a year you should replace the spark plug, clean
or replace air filter, and check blades and belts for
wear. A new spark plug and clean air filter assure
proper air-fuel mixture and help your engine run better
and last longer.
LUBRICATION CHART
BEFORE EACH USE
, Check:engine oil level.
, Check brake operation.
• Check tire pressure.
o Check for loose fasteners.
IMPORTANT: DO NoT OIL OR GREASE THE PIVOT POINTS
WHICH HAVE SPECIAL NYLON BEARINGS. VISCOUS LUBRI-
CANTS WiLL ATTRACT DUST AND DIRTTHAT WILL SHORTEN
THE LIFE OF THE SELF-LUBRICATING BEARINGS, IF YOU
FEEL THEY MUST BE LUBRICATED, USE ONLY A DRY, POW-
DERED GRAPHITE TYPE LUBRICANT SPARINGLY.
(_) SPRAY SILICONE LUBRICANT (MOVE BOOTS TO LUBRICATE}
{_ GENERAL PURPOSE GREASE
(_) REFER TO CUSTOMER RESPONSIBILITIES "ENGINE" SECTION
17
